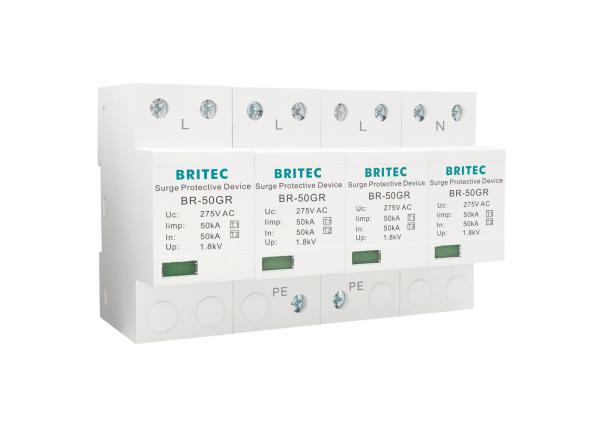

Thermalplastic Spd Surge Protector IP20 4 Pole Lightning Surge Protection Devices
Thermalplastic Spd Surge Protector IP20 4 Pole Lightning Surge Protection Devices
Thermalplastic Spd Surge Protector IP20 4 Pole Lightning Surge Protection Devices
Thermalplastic Spd Surge Protector IP20 4 Pole Lightning Surge Protection Devices
Specifications
Brand Name :
BRITEC
Model Number :
BR-50GR 4P
Certification :
TUV
Place of Origin :
China
MOQ :
100 Piece/Pieces
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
50000 Piece/Pieces Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
EXPORT PACKING
Item Name :
lightning surge arrester
Type :
Ac Surge Protector
Material :
Plastic
Pole number :
4P
Uc :
275V/385V
Iimp :
50kA
Enclosure :
Thermalplastic UL94-VO
Certificate :
TUV/CE/ROHS/ISO9001
Tu :
-40℃-80℃
Application :
surge protective device is suitable for three-phase TN-S system
Description

Thermalplastic Spd Surge Protector IP20 4 Pole Lightning Surge Protection Devices

Thermalplastic Spd Surge Protector Features:
• Impact discharge current of per pole reaches 50kA(10/350).
• Fast response time less than <100ns.
• Max. backup Fuse: 315A.
• Status indicator.
• Fault signal contact.
• 35mm Din rail mountable.
• BR-50GR 4P is suitable for TN-S system.
• It has passed the class I lightning protection test conducted by national professional testing institutions.
• It is the first-level lightning protection product of ac power equipment.

Thermalplastic Spd Surge Protector Technology characteristic:

Specification BR-50GR 4P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 1
SPD dassification according to IEC61643-11 Class I
Max continuous 0perating a.c. voltage Uc 275V
Lightning impulse current (10/350µs) limp 50kA
Norminal discharge current (8/20µs) In 50kA
Voltage protection level Up ≤1.8kV
Follow current extinguishing capability a.c. lfi 25kA rms
Max. backup fuse 315A gG
Response time tA ≤100ns
For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range Tu -40℃—80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
Enclosure material Thermal plastic UL94-V0

Dimension:

Thermalplastic Spd Surge Protector IP20 4 Pole Lightning Surge Protection Devices

Thermalplastic Spd Surge Protector Application:

• For electrical installations.
• Suitable for lightning protection of power supply system in areas with high risk of lightning strike (LPZ0B or interface between LPZ0B and LPZ1).
• Can handle lightning currents and protect sensitive electronic equipment.
• Application-optimised and prewired combined lightning current.
• Particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (eg: buildings equipped with lightning rods).
Thermalplastic Spd Surge Protector Advantage:
• High lightning current discharge capacity.
• High quality lightning protection components.
• High reliable quality assurance.
• Temperature control trip device.
• Long service life.
• Failure indication.
• Fast response time.
• Competitively priced against other brands.
Our Services:
• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.
Thermalplastic Spd Surge Protector Installation:
• During installation, please connect according to the installation schematic diagram.
• Power must be cut off during installation, live operation is strictly prohibited, connecting wires must meet the requirements.
• Lightning protection grounding should meet the lightning protection specifications, the grounding wire should be as short as possible.

Company information:

We have own factory. Most of staff have worked for our company for over 3 years. We have own designer, accept OEM & ODM, we can offer design service, high quality picture, video and so on. Our sale team members have several years' experience on the global trading. We have our own models of over hundreds until now.

Thermalplastic Spd Surge Protector IP20 4 Pole Lightning Surge Protection Devices

Certification:

Thermalplastic Spd Surge Protector IP20 4 Pole Lightning Surge Protection Devices

Test:

Thermalplastic Spd Surge Protector IP20 4 Pole Lightning Surge Protection Devices

FAQ:

Q1: Do you sell SPDs?
A: Yes, all kinds of surge protection (SPDs) can be sold, please contract us for further details.

Q2: Are you a factory or trading company?
A: We are a factory, we provide ODM& OEM services.

Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by TNT, DHL, UPS, FedEx or EMS. It usually takes 7 days to arrive. Airline and sea shipping also optional.

Q4: How about your quality control system?
A: It’ll be 100% tested before packing, all of our products will pass strictly QC procedure before shipping.

Q5: Is it OK for us to visit your factory for lightning arrester?
A: You are always warm welcome to visit our factories. We are located in Yueqing city, Zhejiang province.
