RJ45 8 Port Ethernet Surge Protection Devices Cat6 IEC61643-21 Standard
RJ45 8 Port Ethernet Surge Protection Devices Cat6 IEC61643-21 Standard
RJ45 8 Port Ethernet Surge Protection Devices Cat6 IEC61643-21 Standard
RJ45 8 Port Ethernet Surge Protection Devices Cat6 IEC61643-21 Standard
Specifications
Brand Name :
BRITEC
Model Number :
BRRJ45-8
Place of Origin :
Zhejiang, China (Mainland)
MOQ :
200 Piece/Pieces
Payment Terms :
T/T
Supply Ability :
50000 Piece/Pieces per Month
Delivery Time :
Shipped in 15-30 days after payment
Packaging Details :
EXPORT PACKING
Type :
RJ45
Item Name :
Ethernet surge protector
Tu :
-40℃-80℃
Un :
5v
Description

RJ45 8 Port Ethernet Surge Protector Cat6 IEC61643-21 Standard

Technology characteristic:

• Shielded RJ-45 sockets.
• Compliance: IEC 61643-21.
• Insertion loss: <0.5dB (100MHz).
• Nominal Discharge Current (8/20μs): 5 KA.
• Data line protection: RJ45 10/100Base-T Ethernet.
• Each module may be powered by separate power supply unit.


Product Details:

BRRJ45-8
Test standards IEC61643-21
Nominal voltage Un 5V
Max.continuous operating d.c.voltage Uc 6V
Max.continuous operating a.c.voltage Uc 4V
Nominal current IL 0.5A
C2 Nominal discharge current (8/20us) per line In 5kA
Voltage protection level [line-line] Up ≤30V
Voltage protection level [line-PG] Up ≤500V
Response time [line-line] tA ≤1ns
Response time [line-PG] tA ≤100ns
Operating temperature range Tu -40℃…+80℃
Connection (input/output) RJ45 socket
Protect The Port Quantity 8 Ports
Bandwidth 100M
Insertion Loss ≤0. 2dB
Enclosure material aluminium alloy
Degree of protection IP20

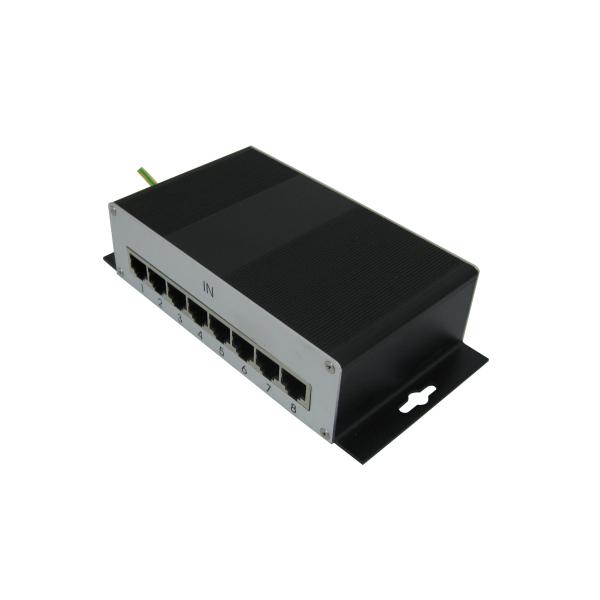

Product view:

RJ45 8 Port Ethernet Surge Protection Devices Cat6 IEC61643-21 Standard

Application:
• Protects any RJ45 Ethernet based device like switches, DSL modems, routers, computers, etc.
• Used for basic and fine protection of information-based systems from surges as caused by
atmospheric discharges (lightning) or by capacitive or inductive interferences.
• Protects data and POE pairs, against electrical surcharges that may occur during storms.
Advantage:
• Fast energy absorption on over-voltage.
• Low resistance and minimal capacitance - minimal influence on data link.
• Easy in-line installation.
Installation:
• It installs simply on a Cat5, Cat 5e or Cat6 4 twisted pair cable.
About us:
RJ45 8 Port Ethernet Surge Protection Devices Cat6 IEC61643-21 Standard

Company Hightlight:


• Handquartered: Yueqing city, Zhejiang, China.

• Founded Years: since 2003.

• Main Product: AC surge arrester,

DC power surge protector,

data surge protection,

LED lightning protective device etc.

Certifications:

RJ45 8 Port Ethernet Surge Protection Devices Cat6 IEC61643-21 Standard

FAQ:

Q1: Are you trading company or manufacturer?
A: We are factory.

Q2: How long is your delivery time?
A: Generally it is 15-30 days, it is according to quantity.

Q3: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample, but it is not free.

Q4: What is your terms of payment?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance, balance
before shippment.
