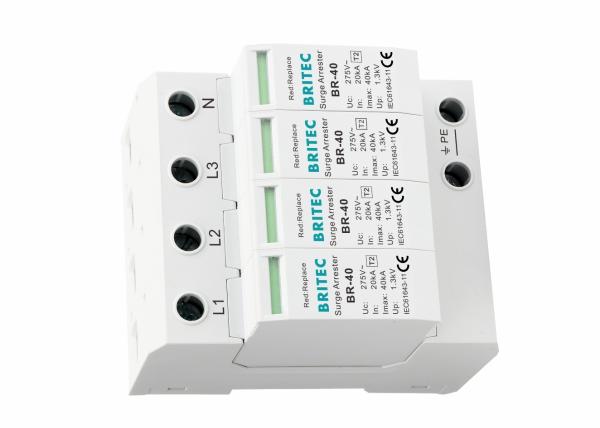

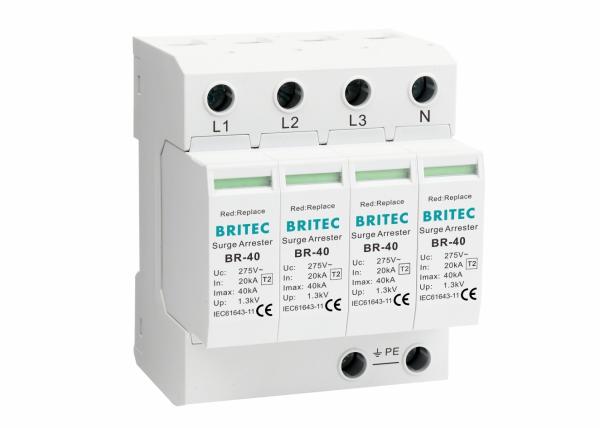

AC Surge Arrester 40kA Type 2 Surge Protection Device SPD 4P TUV Certified
AC Surge Arrester 40kA Type 2 Surge Protection Device SPD 4P TUV Certified
AC Surge Arrester 40kA Type 2 Surge Protection Device SPD 4P TUV Certified
AC Surge Arrester 40kA Type 2 Surge Protection Device SPD 4P TUV Certified
AC Surge Arrester 40kA Type 2 Surge Protection Device SPD 4P TUV Certified
AC Surge Arrester 40kA Type 2 Surge Protection Device SPD 4P TUV Certified
Specifications
Brand Name :
BRITEC
Model Number :
BR-40 4P
Certification :
CE
Place of Origin :
China
MOQ :
200 piece / pieces
Payment Terms :
T/T
Supply Ability :
50000 pieces per month
Delivery Time :
15-30 days after payment
Packaging Details :
EXPORT PACKING
Test standards :
IEC 61643-11 / EN61643-11
Uc :
150V / 275V / 320V / 385V / 440V
In :
20kA
Imax :
40kA
Material :
Thermal plastic UL94-V0
tA :
≤25ns
Mounting on :
35mm Din rail
Tu :
-40℃...+80℃
Power :
AC
Item :
Surge arrester
Description

Type 2 AC Surge Arrester 40kA SPD Din Rail 4P Surge Protector TUV Certified​

AC Surge Arrester 40kA Type 2 Surge Protection Device Feature:

• Thermal stability 100A without additional protection

• Patented fast tripping mechanism
• SEMKO approval
• Imax 40kA 8/20us
• Modular design, standard 35mm DIN rail installation
• Working status indication window, and remote control contacts for your option
• Complies with EN 61643-11 on arresters connected to low voltage distribution systems.
• Enclosure material:Thermal plastic UL94-V0
• Surge arrester type 2 for three-phase systems with neutral
• Varistors protection L1, L2, L3, N, PE

AC Surge Arrester 40kA Type 2 Surge Protection Device Product Details:

BR150 40 4P BR275 40 4P BR320 40 4P BR385 40 4P BR440 40 4P
SPD classification according to EN61643-11 Type 2 Type 2 Type 2 Type 2 Type 2
SPD classification according to IEC61643-11 Class II Class II Class II Class II Class II
Max. continuous operating a.c. voltage Uc 150V 275V 320V 385V 440V
Nominal discharge current (8/20us) In 20kA 20kA 20kA 20kA 20kA
Max. discharge current(8/20μs) Imax 40kA 40kA 40kA 40kA 40kA
Voltage protection level Up ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV
Voltage protection level 5kA Up ≤0.6kV ≤1kV ≤1.2kV ≤1.4kV ≤1.6kV
Max. backup fuse 125A gG 125A gG 125A gG 125A gG 125A gG
Response time tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication green / red green / red green / red green / red green / red
Cross-section area (Min.) 4mm2 4mm2 4mm2 4mm2 4mm2
Cross-section area (Max.) 35mm2 35mm2 35mm2 35mm2 35mm2
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20 IP20
Order Code B8401 B8403 B8405 B8407 B8409
Order Code (With remote signaling) B8402 B8404 B8406 B8408 B8410

Dimension:

AC Surge Arrester 40kA Type 2 Surge Protection Device SPD 4P TUV Certified

AC Surge Arrester 40kA Type 2 Surge Protection Device Application:

• Applicable to discharge overvoltage occurred by switch-type (8/20µs) over currents.
• BR-40 4 pole surge arrester is suitable for TN-S system.
• Used for lightning and overvoltage protection in AC50/60Hz, protect the low voltage power network from lightning or surge over votlage.
• Designed for installations where direct lightning strike risk is reduced (without LPS or medium risk)
• Also used in addition to the SPD type 1 in order to limit the operating voltage arresters

AC Surge Arrester 40kA Type 2 Surge Protection Device Advantage:

• High discharge current.

• Voltage protection level (Up) is low
• Interchangeable modules varistors
• IP20 protection
• Incorporate technology-based high energy varistors

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester
• All products will be well packed before shipping
• Standard packaging, and you can also tell us your own requirements on packaging
• Faster delivery
• Individually Tested Prior to Shipment

AC Surge Arrester 40kA Type 2 Surge Protection Device Installation:

• The type 2 arresters must install into sub-distribution boards after main distribution boards containing type 1 arresters.
• For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices.
• In areas where storms are frequent, it is strongly recommended to install additional protection systems.

Certificate:

AC Surge Arrester 40kA Type 2 Surge Protection Device SPD 4P TUV Certified

Company profile:

Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.

AC Surge Arrester 40kA Type 2 Surge Protection Device SPD 4P TUV Certified

Production flow:

AC Surge Arrester 40kA Type 2 Surge Protection Device SPD 4P TUV Certified

Laboratory equipment:

AC Surge Arrester 40kA Type 2 Surge Protection Device SPD 4P TUV Certified

Shipping:

AC Surge Arrester 40kA Type 2 Surge Protection Device SPD 4P TUV Certified

FAQ:

Q1: How can I trust you and your company?
A: Products pass CE, CB, TUV certificates.

Q2: How long is your products warranty?
A: The warranty period of our products is 2 Years.

Q3: How about inspection?
A: We have the whole inspection system from raw material to end products.

Q4: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.
