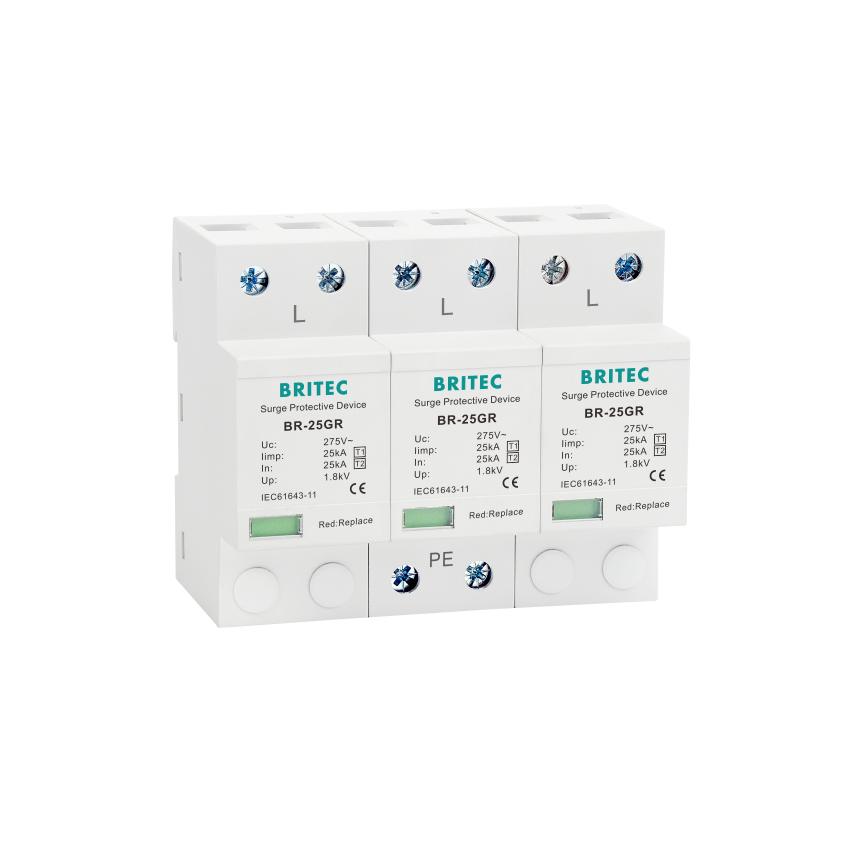

BR-25GR 3P Class I Spd Surge Protector Lightning Arrester Surge Protection Thunder Protector
BR-25GR 3P Class I Spd Surge Protector Lightning Arrester Surge Protection Thunder Protector
BR-25GR 3P Class I Spd Surge Protector Lightning Arrester Surge Protection Thunder Protector
BR-25GR 3P Class I Spd Surge Protector Lightning Arrester Surge Protection Thunder Protector
BR-25GR 3P Class I Spd Surge Protector Lightning Arrester Surge Protection Thunder Protector
BR-25GR 3P Class I Spd Surge Protector Lightning Arrester Surge Protection Thunder Protector
BR-25GR 3P Class I Spd Surge Protector Lightning Arrester Surge Protection Thunder Protector
BR-25GR 3P Class I Spd Surge Protector Lightning Arrester Surge Protection Thunder Protector
Specifications
Brand Name :
BRITEC
Model Number :
BR-25GR 3P
Certification :
TUV
Place of Origin :
China
MOQ :
1 Piece/Pieces
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
50000 Piece/Pieces Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
EXPORT PACKING
Item Name :
275v surge protection
Place of Origin :
Wenzhou
Response time :
25ns
Number of positions :
3P
Working conditions :
Temperature: -40 to 85℃
Model Numbers :
BR-25GR 3P
Relative humidity :
≤95％
EN type :
type 1
Installation :
Din Rail 35mm
Description

275v surge arrester Class I lightning surge protection device

Surge protector Features:

BRITEC type 1 and type 1+2 are designed to discharge high current surges without any destruction of the installation. This surge protective device is chararcterized by its capacity to withstand impulse current with 10/350 µs wave form which simulate direct impact coming from a natural lightning current. Type 1 and Type 1+2 SPDs are placed at the entrance point of the installation, in the main distribution board for a global protection of this installation.

Surge protector Technology characteristic:

BR-25GR 3P Class I Spd Surge Protector Lightning Arrester Surge Protection Thunder Protector

BR-25GR 3P Class I Spd Surge Protector Lightning Arrester Surge Protection Thunder Protector

BR-25GR 3P
Max. continuous operating a.c. voltage Uc 275V
Lightning impulse current (10/350us) Iimp 25kA
Nominal discharge current (8/20us) In 25kA
Maximum discharge current (8/20us) Imax 100kA
Voltage protection level Up ≤1.8kV
Response time tA ≤25ns
Max. backup fuse 315A
Operating temperature range Tu -40℃—80℃
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Test standards

IEC 61643-11, EN 61643-11

Surge protector Application:


• For electrical installations.
• Suitable for lightning protection of power supply system in areas with high risk of lightning strike (LPZ0B or interface between LPZ0B and LPZ1).
• Can handle lightning currents and protect sensitive electronic equipment.

For the lowest price please contact us.

Other type for choose:

1,Maximum discharge current:20kA,40kA,80kA,100kA,120kA,200kA

2,Number of poles:1P,1P+N ,2P,3P,3P+N, 4P

3,Maximum continuous operating voltage: 275V,320V,385V ,440V,550V,800V,1000V

Our Main Product

Type 1 surge protection device.

Type 2 surge protection device.

Type 1 + Type 2 surge protection device.

Type 3 surge protection device.

CB, CE, TUV,RoHS Certificate:

BR-25GR 3P Class I Spd Surge Protector Lightning Arrester Surge Protection Thunder Protector
Company information:

Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. Our company specialized in research and development of surge protection devices.The series of surge protection device Type 1 and Type 2 and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.
.

BR-25GR 3P Class I Spd Surge Protector Lightning Arrester Surge Protection Thunder Protector
Production line:
BR-25GR 3P Class I Spd Surge Protector Lightning Arrester Surge Protection Thunder Protector
BR-25GR 3P Class I Spd Surge Protector Lightning Arrester Surge Protection Thunder Protector
Laboratory equipment:
BR-25GR 3P Class I Spd Surge Protector Lightning Arrester Surge Protection Thunder Protector
Shipping:
BR-25GR 3P Class I Spd Surge Protector Lightning Arrester Surge Protection Thunder Protector
FAQ:

Q: Are you trading company or manufacturer?

A: We are professional manufacturer specialized in orthopedic and sport products. And we trade our products with our clients directly.

Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.

Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.

Q: What’s your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.

Q: Which payment form you can accept?
A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
