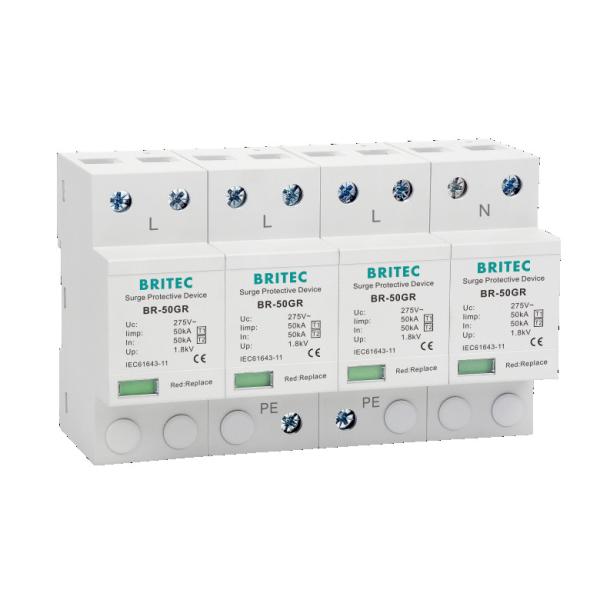

BR-50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection
BR-50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection
BR-50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection
BR-50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection
BR-50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection
BR-50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection
BR-50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection
BR-50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection
BR-50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection
BR-50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection
Specifications
Brand Name :
BRITEC
Model Number :
BR-50GR 275 1P
Certification :
TUV/CB/CE/ROHS/ISO9001
Place of Origin :
China Zhejiang
MOQ :
1 Piece/Pieces
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
50000 Piece/Pieces Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
EXPORT PACKING
Item Name :
Surge protection device
Class :
Type 1
Material :
Thermoplastic UL94-V0
Place of origin :
Zhejiang, China (Mainland)
Mounting Type: DIN rail :
DIN rail 35 mm
Brand name :
BRITEC
Certificate :
TUV/CE/ROHS/ISO9001
Tu :
-40℃-80℃
Packing :
Carton
Imax :
200kA
Uc :
275V
Description

50 kA Surge Protection Devices single surge protector type 1 SPD

Surge Protection Devices Features:

Benefits

The impulse current of 50kA per pole (10/350 µs wave) satisfies all requirements for overvoltage surge protection

The early creation of the electric arc by its electronic ignition device reduces the protection level Up to an optimum value of 1.8kV

Surge Protection Devices Technology characteristic:

BR-50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection

Specification BR-50GR 1P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 1 + Type 2
SPD dassification according to IEC61643-11 Class I + Class II
Max continuous 0perating a.c. voltage Uc 275V
Lightning impulse current (10/350µs) limp 50kA
Norminal discharge current (8/20µs) In 50kA
Maximun discharge current (8/20µs) Imax 200kA
Voltage protection level Up ≤1.8kV
Follow current extinguishing capability a.c. lifi 3kA rms
Max. backup fuse 500A gG
Response time tA ≤100ns
For mounting on 35mm Din rail
Degree of protection IP20
Payment term 30% deposit in advance,70% before shipment,100% T/T in advance
Certificate CB/CE/ROHS/ISO9001
Logo Customized logo available
Design ability We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)

Surge Protection Devices Dimension:

BR-50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection

Products features:

1. Pluggable module, easy for installation and maintenance

2. High discharge capacity, quick response

3. Double thermal disconnection devices, providing more reliable protection

4. Green window will change when fault and also provide remote alarm control at the same time

Advantage:
• Unique designing, patent technology.
• High discharge capacity.
• Low residual voltage.
• DIN rail mountable and ease of installation.
• Quick thermal response self-protected design.
Our Services:
• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.
Installation:
• Installed at the entrance point of the building, in the main distribution board of this installation.
• It should be used as part of lightning protection systems i.e. when lightning rods or meshed cages are
installed.
• Must install SPD strictly according to the wiring diagram provided.
• Better to under the guidance of professional electrician.
• Green tab, normal work status, Red tab, failure status, need to be replaced Rapidly.
Shipping:
BR-50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection
Company information:
Britec Electric Wenzhou Co., Ltd. is located in the Yueqing city. Britec is dedicated to development,
manufacture, marketing and service of low voltage surge arrester products. The rapidly-developed
regional economy and friendly investment environment ensure Britec’s sustainable developments and
continuous innovations. It is professional in producing SPD.
BR-50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection
BR-50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection
BR-50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection
BR-50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection
FAQ:

Q1. Are you manufacturer or trading office?

A: We are manufacturer in Wenzhou, with the ability to export by ourselves.

Q2: Do you support OEM or ODM?

A: Yes, we support OEM & ODM.

Q3: How's your product markets?

A: Our products are welcomed among Europe, South America, Asia and certain countries in Africa, win

us a good reputation.

Q4. How’s your warranty?

A: All our products are 5 years warranted.
