Specifications
Brand Name :
BRITEC
Model Number :
BR-40 3P
Certification :
TUV/CB/CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
20 Piece/Pieces
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
50000 Piece/Pieces Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
EXPORT PACKING
Item Name :
surge protect device
Model Numbers :
BR-40 3P
Operating temperature :
-40°C - 80°C
OEM/ODM :
Available
SPD according :
Type 2
EN type :
T2
Up :
≤ 1.3kV
Nominal discharge current :
20kA
Delivery time :
7 days
Standard :
IEC Standard
Description

3 poles surge protect device surge arrestor single phase surge protectors

3 poles surge protect device Features:

Type 2 AC Surge Protector

In: 20 kA

Imax: 40 kA

Pluggable module for each phase

Remote signaling (option )

IEC 61643-11, EN 61643-11 certified

It is a smart idea to protect the connected devices within your home or work environment. Electrical equipment may be damaged if exposed to voltages greater than 1.3kV.

3 poles surge protect device Technology characteristic:

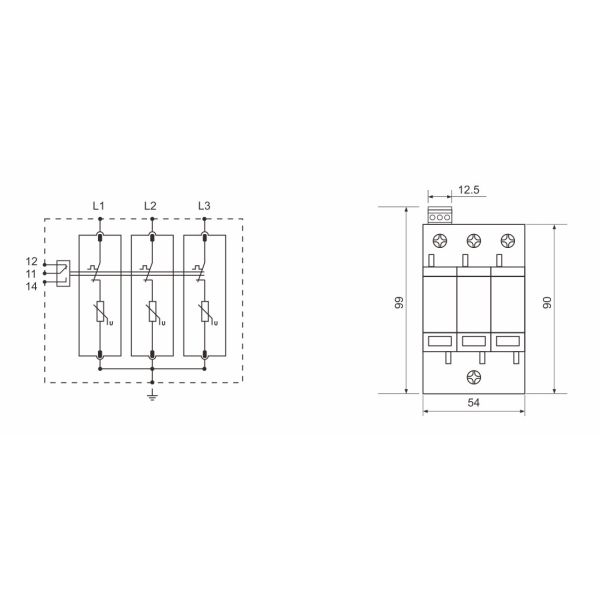

BR-40 3P Type 2 Spd Surge Arrester Lightning Arrestor surge Protection Device 275v lightning surge protector

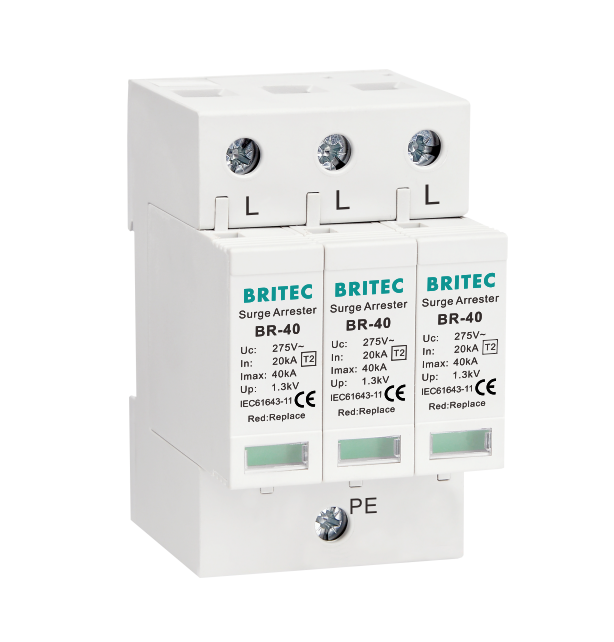

BR-40 3P Type 2 Spd Surge Arrester Lightning Arrestor surge Protection Device 275v lightning surge protector

BR-40 3P
Max. continuous operating a.c. voltage Uc 275V
Nominal discharge current (8/20us) In 20kA
Maximum discharge current (8/20us) Imax 40kA
Voltage protection level Up ≤1.3kV
Response time tA ≤25ns
Max. backup fuse 125A
Operating temperature range Tu -40℃—80℃
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Test standards

IEC 61643-11, EN 61643-11

We can produce according to your requirements.

For the lowest price please contact us.

Our products have CE, TUV, RoHS certification and ISO9001 quality mangement system.

Other type for choose:

1,Maximum discharge current:20kA,40kA,80kA,100kA,120kA,200kA

2,Number of poles:1P,1P+N ,2P,3P,3P+N, 4P

3,Maximum continuous operating voltage Uc: 150V,275V,320V,385V ,440V,550V,800V,1000V

Our Main Product

Type 1 surge protection device.

Type 2 surge protection device.

Type 1 + Type 2 surge protection device.

3 poles surge protect device Application:

BRITEC type 2 SPD are designed to protect electric installations and sensitive equipment against indirect surges with ensuring a low protection level (Up). It is characterized by its capacity to safely discharge current with 8/20 µs wave form.

3 poles surge protect device Certificate:

CB, CE, TUV,RoHS Certificate:

BR-40 3P Type 2 Spd Surge Arrester Lightning Arrestor surge Protection Device 275v lightning surge protector
Company information:

Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. Our company specialized in research and development of surge protection devices.The series of surge protection device Type 1 and Type 2 and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.
.

BR-40 3P Type 2 Spd Surge Arrester Lightning Arrestor surge Protection Device 275v lightning surge protector
Production line:
BR-40 3P Type 2 Spd Surge Arrester Lightning Arrestor surge Protection Device 275v lightning surge protector
BR-40 3P Type 2 Spd Surge Arrester Lightning Arrestor surge Protection Device 275v lightning surge protector
Laboratory equipment:
BR-40 3P Type 2 Spd Surge Arrester Lightning Arrestor surge Protection Device 275v lightning surge protector
BR-40 3P Type 2 Spd Surge Arrester Lightning Arrestor surge Protection Device 275v lightning surge protector
Shipping:
BR-40 3P Type 2 Spd Surge Arrester Lightning Arrestor surge Protection Device 275v lightning surge protector
FAQ:

Q1: Selection of surge protector

Al: The grading of the surge protector (commonly known as lightning protection) Is assessed according to the IEC61024 subdivision lightning protection theory, which is installed at the junction of the partition. Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone, high for the flow requirement, the minimum requirement of EN 61643-11 / IEC 61643-11 is 25 ka (10/350), and the second and third levels are installed between the 1-2 and 2-3 zones, mainly to suppress the overvoltage.

Q2: Are you a lightning surge protectors factory or lightning surge protectors trading company?

A2: We are a lightning surge protectors manufacturer.

Q3: Warranty and services:

A3:1. Warranty 5 years

2. lightning surge protectors products and accessories have been tested 3 times before ship out.

3. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.

Q4: How can I get some lightning surge protectors samples?

A4: We are honored to offer you lightning surge protectors samples, pis contact our staff, and leave detailed contact information, we promise to keep your information confidential.

Q5: Is the sample available and free?

A5: Sample is available, but the sample cost should be payable by you. The cost of the sample will be refunded after further order.

Q6: Do you accept customized order?

A6: Yes, we do.
