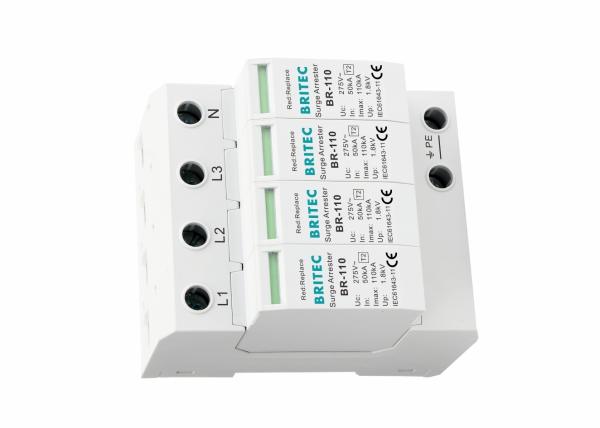

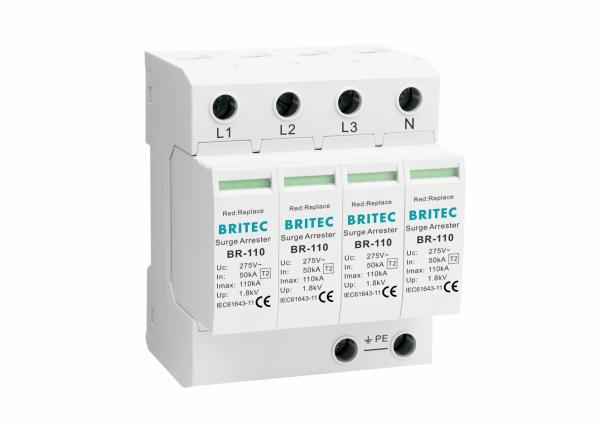

100kA SPD 4 Pole AC Power Surge Protector Low Residual Voltage
100kA SPD 4 Pole AC Power Surge Protector Low Residual Voltage
100kA SPD 4 Pole AC Power Surge Protector Low Residual Voltage
100kA SPD 4 Pole AC Power Surge Protector Low Residual Voltage
Specifications
Brand Name :
BRITEC
Model Number :
TY1-100 4P
Place of Origin :
China
MOQ :
100 Piece/Pieces
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
50000 Piece/Pieces Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
EXPORT PACKING
Item Name :
Surge protector
Type :
Type 2
Pole number :
4P
Uc :
385V
In :
50kA
Imax :
100kA
Degree of protection :
IP20
Material :
Plastic
Tu :
-40℃-80℃
Description

Type 2 Power Lightning Protection 100kA SPD 4 Pole Din Rail AC Surge Protective Device 385V 4P

Type 2 Power Lightning Protection 100kA SPD Features:

- Class II / Type 2 surge protection device.
- Available with nominal / maximum discharge current 50kA/100kA
- The core parts are metal oxide varistor components with high discharge capacity.
- Excellent performance and favorable price
- Low residual voltage and quick response.
- This surge protective device is used for lightning and overvoltage protection in AC50/60Hz, 230/400V.
- Reliable control
- TY1-100 series surge protector devices (SPD) are the best products to protect the low voltage power network from lightning or surge over voltage.
-Fault indication via red mark in the inspection window.

Type 2 Power Lightning Protection 100kA SPD Technology characteristic:

Specification TY1-100 4P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 2
SPD dassification according to IEC61643-11 Class II
Max continuous 0perating a.c. voltage Uc 385V
Max. discharge current (8/20µs) Imax 100kA
Norminal discharge current (8/20µs) In 50kA
Voltage protection level Up ≤2.5kV
Response time tA ≤25ns
For mounting on 35mm Din rail
Degree of protection IP20
Max. backup fuse 315A gG
Operating temperature range Tu -40℃—80℃
Cross-section area (Min.) 6mm2
Cross-section area (Max.) 35mm2
Enclosure material Thermal plastic UL94-V0

Type 2 Power Lightning Protection 100kA SPD Application:

• For using in the lightning protection zones concept at boundary 1-2.
• The SPD surge protector can provide protection for three-phase power system from lightning strikes and voltage surge

Operational principle:
In common situation, SPD is under high resistance. When the power network is under surge over voltage caused by lightning or other reasons, the SPD will be immediately powered with in microsecond; it will release the surge over voltage into the earth and protect the electrical equipment connected on the power network. When the surge voltage gets through the SPD and disappeared, the SPD will return to high resistance status. Then it will not affect the normal operation of the power network.

Company information:

Britec Electric is specialized in manufacturing SPDs. We were established in 2003, located in Yueqing, Zhejiang, China. Our main products include AC surge arrester, DC surge protector, data surge protection device etc.

100kA SPD 4 Pole AC Power Surge Protector Low Residual Voltage

Shipping:

100kA SPD 4 Pole AC Power Surge Protector Low Residual Voltage

Our service:

• Quick Response, we will reply your inquiry within 24 hours.

• Trial order acceptable.

• Supporting OEM/ODM, customzied as per customer's need.

• Delivery Punctually.

• QC SYSTEM, we have perfect and strict quality control team, ensure every product is 100% qualified.

• Perfect After-sales, any quality problem will be solve within 24 hours to ensure satisfy every customer.

Our certificate:

100kA SPD 4 Pole AC Power Surge Protector Low Residual Voltage

FAQ:

Q1: Are you a factory or a trade company?

A: We are the factory.

Q2: Where are your products distributed?

A: Our products are distributed all over the world, Main market are Europe, South America, the United Arab Emirates, Africa and so on.

Q3: Can I have a sample?

A: Yes, but according to our company's policy, we don't provided free samples, while you should pay the sample cost and freight fee; the sample can be delivered by TNT/DHL/UPS/FEDEX.

Q4: Which port is the nearest from you?

A: Ningbo port or Shanghai port.

Q5: What's your lead time?

A: Sample lead time: 10 working days. Mass production: usually 20days. For big orders, honestly, it depends on the order quantity and designs.

Q6: When can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry as priority.

Q7: Can you do the design for us?

A: Yes, we have a professional team having rich experience in design, electrical system developing and manufacturing. Please just tell us your ideas and we will help you to carry out your ideas into a perfect artwork.

Q8: OEM & ODM are accepted or not?

A: OEM&ODM are welcome.
