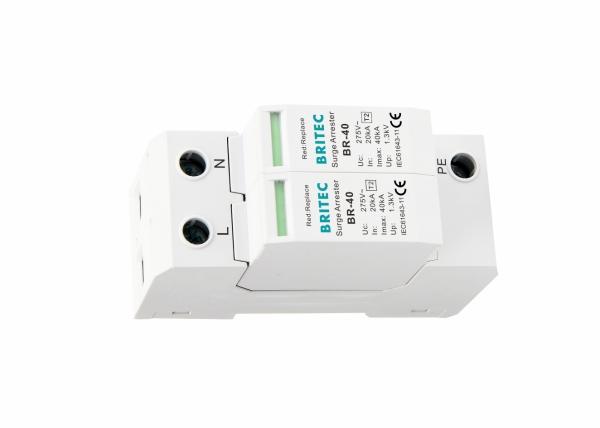

Pluggable Parallel Panel Mount 40kA House Surge Protector Lightning Arrester
Pluggable Parallel Panel Mount 40kA House Surge Protector Lightning Arrester
Pluggable Parallel Panel Mount 40kA House Surge Protector Lightning Arrester
Pluggable Parallel Panel Mount 40kA House Surge Protector Lightning Arrester
Pluggable Parallel Panel Mount 40kA House Surge Protector Lightning Arrester
Pluggable Parallel Panel Mount 40kA House Surge Protector Lightning Arrester
Pluggable Parallel Panel Mount 40kA House Surge Protector Lightning Arrester
Pluggable Parallel Panel Mount 40kA House Surge Protector Lightning Arrester
Specifications
Brand Name :
BRITEC
Model Number :
TY-40 320 2P
Certification :
TUV
Place of Origin :
China
MOQ :
100 Piece/Pieces
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
50000 Piece/Pieces Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
EXPORT PACKING
Item Name :
lightning arrester
Installation :
Parallel arrester
Type :
Power surge arrester
Pole :
2P
Uc :
320V
In :
20kA
Imax :
40kA
Protection level :
1.5kV
Tu :
-40℃-80℃
Payment terms :
T/T, Paypal
Description

20-40kA House Surge Protector 2P AC Low-voltage SPD 320V Lightning Protection Lightning Arrester

20-40kA House Surge Protector 2P AC Low-voltage SPD Product description:
• TY-40 series surge protection device (in short SPD, alias: surge suppressor surge arrester) is suitable for TN-S, TN-C-S, TT, IT etc., power supply system of AC 50/60Hz.
• The core parts are metal oxide varistor components with high discharge capacity.
• It's designed according to IEC61643-1, GB18802.1.
• Low residual voltage and quick response.
• It adopts 35mm standard rail, there is a failure release mounted on the module of surge protection device, when the SPD fails in breakdown for over heat and over-current, the failure release will help electric equipment separate from the power supply system and give the indication signal, green means normal, red means abnormal.

20-40kA House Surge Protector 2P AC Low-voltage SPD Technology characteristic:

Specification TY320-40 2P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 2
SPD dassification according to IEC61643-11 Class II
Max continuous 0perating a.c. voltage Uc 320V
Max. discharge current (8/20µs) Imax 40kA
Norminal discharge current (8/20µs) In 20kA
Voltage protection level Up ≤1.5kV
Max. backup fuse 125A gG
Response time tA ≤25ns
For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range Tu -40℃—80℃
Operating state/fault indication green/red
Enclosure material Thermal plastic

Dimension:

Pluggable Parallel Panel Mount 40kA House Surge Protector Lightning Arrester

20-40kA House Surge Protector 2P AC Low-voltage SPD Application:
• Suitable for system power protection, such as power distribution cabinet, switch cabinet, AC distribution board etc.
• Used to AC power line of house, bank, telecom tower and so on.
• To protect from direct and indirect lightning impulse and other transient over voltage.
20-40kA House Surge Protector 2P AC Low-voltage SPD Advantage:
• Consistent pluggable
• Own developed technology
• Thermal disconnect device for each individual connector
• Mechanical status indication for the individual arresters.
• With or without remote indication contact.
• Din rail mountable (35mm).

Company profile:

Britec Electric was founded in the year 2003. We are instrumental in manufacturing, trading, exporting, and supplying SPD products to our client’s at most reasonable rates. Our range of products is highly demanded & appreciated in the market because of their sturdy construction premium quality, excellent performance, and long functional life. Before dispatch, our products are checked on varied quality factors to attain utmost client’s satisfaction and to assure the supreme quality.

Pluggable Parallel Panel Mount 40kA House Surge Protector Lightning Arrester

Shipping:

Pluggable Parallel Panel Mount 40kA House Surge Protector Lightning Arrester

Certifications:

Pluggable Parallel Panel Mount 40kA House Surge Protector Lightning Arrester

FAQ:

Q: Are You A Factory Or Trading Company?
A: We are a manufacturer with export license.

Q. How Could I Get A Sample?
A: Generally, we offer samples in 10 days while customer pay the sample fee and shipping cost.

Q. Could You Print Custom LOGO For Items?
A: Yes, we accept customized logo.

Q. Do You Accept OEM Or ODM In Your Factory?
A: Absolutely Yes. Welcome to inquiry OEM & ODM service at any time.

Q: What's Your MOQ?
A: We accept both large and small orders. And for some of the items we have stocks.

Q. What Payment Terms Do You Accept?
A: We usually accept T/T payment terms, but other payment terms also can be accepted after we both confirmed.

Q: What's The Time Of Warranty.
A: We offer 2 years warranty.

Q. How Does Your Factory Do Regarding Quality Control?
A: Quality is priority. Britec always pay great attention to quality control. All raw material we used are environmental-friendly.
