T2 AC 2 Poles Pluggable Surge Protection Voltage Suppression Devices
T2 AC 2 Poles Pluggable Surge Protection Voltage Suppression Devices
T2 AC 2 Poles Pluggable Surge Protection Voltage Suppression Devices
T2 AC 2 Poles Pluggable Surge Protection Voltage Suppression Devices
Specifications
Brand Name :
BRITEC
Model Number :
BR-40 320 2P
Certification :
TUV/CB/CE
Place of Origin :
China
MOQ :
100 Piece/Pieces
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
50000 Piece/Pieces Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
EXPORT PACKING
Item Name :
Surge arrester
Product name :
Surge protection device
Type :
T2
Uc Continous Operating Voltage (V) :
320V
In :
20kA
Imax :
40kA
Protection level :
1.5kV
Pole :
2P
Tu :
-40℃-80℃
Compact Size :
18mm per pole
Description

T2 AC 2 Poles (20 -40 kA) Surge Protection Device Plug-in Surge Suppression Devices

T2 AC 2 Poles (20 -40 kA) Surge Protection Device Specifications:
• 2 Module widths.
• This AC SPD is a surge protection device suitable for power supply system of AC 50/60 Hz
• Din Rail Mounted
• It is according to IEC61643-1, GB18802.1 standards.
• Flag Indication – Green = Good, Red = Replace.
• There is a failure release mounted on the module of surge protection device.
• Nominal Discharge Current (In 8/20us) 20kA
• Maximum Discharge Current (Imax 8/20us)40kA
• Continuous Operating Voltage Uc: 320 V
• IP20

T2 AC 2 Poles (20 -40 kA) Surge Protection Device Technology characteristic:

Specification BR-40 320 2P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 2
SPD dassification according to IEC61643-11 Class II
Max continuous 0perating a.c. voltage Uc 320V
Max. discharge current (8/20µs) Imax 40kA
Nominal discharge current (8/20µs) In 20kA
Voltage protection level Up ≤1.5kV
Max. backup fuse 125A gG
Response time tA ≤25ns
For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range Tu -40℃—80℃
Operating state/fault indication green/red
Enclosure material Thermoplastic

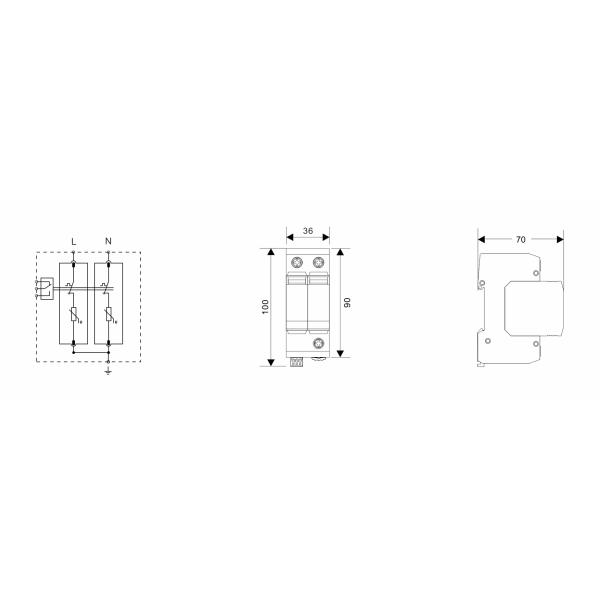

Dimension:

T2 AC 2 Poles Pluggable Surge Protection Voltage Suppression Devices

T2 AC 2 Poles (20 -40 kA) Surge Protection Device Application:
• The type 2 surge protective device is applicable to discharge overvoltage caused by switch-type (8/20μs wave-form) over currents.
• The voltage limiting AC power surge protector is suitable for AC power supply systems of 50 Hz, 60 Hz.
• The type 2 arresters must be installed into sub-distribution boards (at condominium into distribution boards of flats) after main distribution boards containing type 1 arresters.
• It can provide secondary lightning protection (over-voltage) protection for low-voltage general distribution system of building incoming lines.
• For proper operation at least 10- 15 m cable or wire must be placed between type 1 and type 2 arresters.
• The front end of each pole of SPD must be equipped with a fuse circuit or SPD protection of lightning current of miniature circuit breaker for short circuit protection after SPD breakdown
• Otherwise a decoupling coil has to be installed between the two devices.
T2 AC 2 Poles (20 -40 kA) Surge Protection Device Product Features:
1. SPD built-in disengages, when SPD due to overheating, breakdown failure, disengage can automatically from the grid, and give the indication signal.
2. When SPD is working normally, the visual window will display green, and red will be displayed after failure separation.
3. 35mm standard guide rail is used for installation, and the copper multi strand conductor is 4 ~ 35mm².

Company profile:

Britec Electric was founded in the year 2003. We are instrumental in manufacturing, trading, exporting, and supplying SPD products to our client’s at most reasonable rates. Our range of products is highly demanded & appreciated in the market because of their sturdy construction premium quality, excellent performance, and long functional life. Before dispatch, our products are checked on varied quality factors to attain utmost client’s satisfaction and to assure the supreme quality.

T2 AC 2 Poles Pluggable Surge Protection Voltage Suppression Devices

Shipping:

T2 AC 2 Poles Pluggable Surge Protection Voltage Suppression Devices

Certifications:

T2 AC 2 Poles Pluggable Surge Protection Voltage Suppression Devices

FAQ:

Q: Are You A Factory Or Trading Company?
A: We are a manufacturer with export license.

Q. How Could I Get A Sample?
A: Generally, we offer samples in 10 days while customer pay the sample fee and shipping cost.

Q. Could You Print Custom LOGO For Items?
A: Yes, we accept customized logo.

Q. Do You Accept OEM Or ODM In Your Factory?
A: Absolutely Yes. Welcome to inquiry OEM & ODM service at any time.

Q: What's Your MOQ?
A: We accept both large and small orders. And for some of the items we have stocks.

Q. What Payment Terms Do You Accept?
A: We usually accept T/T payment terms, but other payment terms also can be accepted after we both confirmed.

Q: What's The Time Of Warranty.
A: We offer 2 years warranty.

Q. How Does Your Factory Do Regarding Quality Control?
A: Quality is priority. Britec always pay great attention to quality control. All raw material we used are environmental-friendly.
