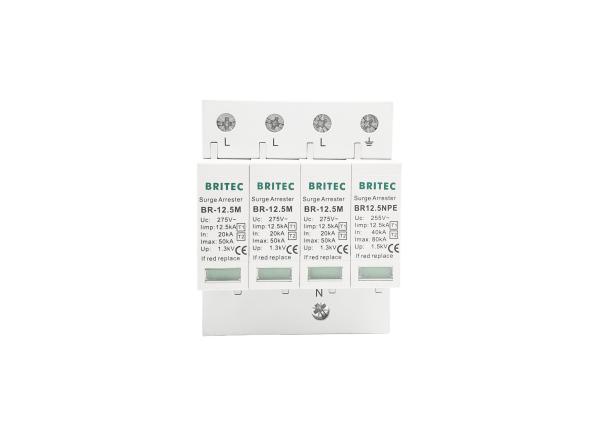

SPDs Iimp 12.5kA T1+T2 Surge Arrester B+C Thermalplastic housing
SPDs Iimp 12.5kA T1+T2 Surge Arrester B+C Thermalplastic housing
SPDs Iimp 12.5kA T1+T2 Surge Arrester B+C Thermalplastic housing
SPDs Iimp 12.5kA T1+T2 Surge Arrester B+C Thermalplastic housing
Specifications
Brand Name :
BRITEC
Model Number :
BR-12.5M-275 3+1
Certification :
CE
Place of Origin :
China
MOQ :
200 piece / pieces
Payment Terms :
T/T
Supply Ability :
50000 pieces per month
Delivery Time :
15-30 days after payment
Packaging Details :
EXPORT PACKING
Item Name: :
SPDs
Classification :
Type 1+2
Class :
B+C
Pole number: :
3P+NPE
Rated voltage :
230V
Uc :
275V
Iimp :
12.5kA
Standard: :
IEC61643-11 / EN 61643-11
Tu :
-40℃-80℃
Material :
Thermalplastic
Description

Iimp 12.5kA Type 1+2 Surge Protective Device Class I+II SPD Class B+C Surge Arresters

Iimp 12.5kA Type 1+2 Surge Protective Device Class I+II SPD Product Description:
• BR-12.5M is surge arrester type 1+2 and class I+II according to EN 61643-11 and IEC 61643-1.
• The use of high-performance varistors permits a rapid response time and a low protection level, without any line follow current.
• Complete device consists of a base part and pluggable module.
• High arresting capacity up to 12.5 kA (10/350μs)
• The visual indication of green and red indicator flags shows the proper functioning of every protective circuit and varistor.

Iimp 12.5kA Type 1+2 Surge Protective Device Class I+II SPD Characteristics:

BR-12.5M-275 3+1
SPD classification according to EN 61643-11 Type 1 + Type 2
SPD classification according to IEC 61643-11 Class I + Class II
Max. continuous operating a.c. voltage Uc 275V/255V
Lightning impluse current (10/350us) Iimp 12.5kA/25kA
Nominal discharge current (8/20us) (L-N / N-PE) In 20kA / 25kA
Max. discharge current (8/20us) (L-N / N-PE) Imax 50kA / 100kA
Voltage protection level (L-N / N-PE) Up ≤1.3kV / ≤1.5kV
Voltage protection level 5kA (L-N / N-PE) Up ≤1.0kV / ≤1.5kV
Max. backup fuse 160A gG
Response time (L-N / N-PE) tA ≤25ns / ≤100ns
Operating temperature range Tu -40℃—80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Protection degree IP20
Enclosure material Thermal plastic UL94-V0


Dimension:

SPDs Iimp 12.5kA T1+T2 Surge Arrester B+C Thermalplastic housing

Iimp 12.5kA Type 1+2 Surge Protective Device Class I+II SPD Application:
• These arresters are recommended for use in the Lightning Protection Zones Concept at the boundaries of LPZ 0-2 (according to IEC 1312-1 and EN 62305) for equipotential bonding and elimination of transient over voltage that originates during atmospheric discharges or switching processes.
• Class B+C surge protector is perfect for any kind of building being it residential, commercial, industrial and so on, these devices work as a complete protection device.
• The combination of BR-12.5M is suitable for use in TNS and TT systems.
Certification:
SPDs Iimp 12.5kA T1+T2 Surge Arrester B+C Thermalplastic housing
Shipping:
SPDs Iimp 12.5kA T1+T2 Surge Arrester B+C Thermalplastic housing

About us:

Wenzhou Britec Electric Co., Ltd. has been committed to low voltage surge arrester products’ designing, R&D, manufacturing and marketing for 17 years. Britec factory locates in Wenzhou, Zhejiang, China. We own well-trained workers, rich experience production and R&D engineers. With qualified raw materials and components, all products are manufactured to defined specifications, applying ISO9001 quality control system and in compliance with relevant international approvals, such as CE, CB, TUV. Our team can develop and test new products to meet variable markets’ tailored demands. Britec branded and OEM/ODM products are widely served for residential, commercial and industrial applications in 50+ countries and districts.

SPDs Iimp 12.5kA T1+T2 Surge Arrester B+C Thermalplastic housing

FAQ:

Q1: We have our own design, do you offer OEM & ODM servies?

A: Yes, please share with us your detailed requirements and drawing.

Q2: How about the MOQ requirement for surge protection?

A: 100pcs.

Q3: If sample fee can be free or refundable?

A: Sample fee (wihin USD150) can be refunded after receiving firm order.
