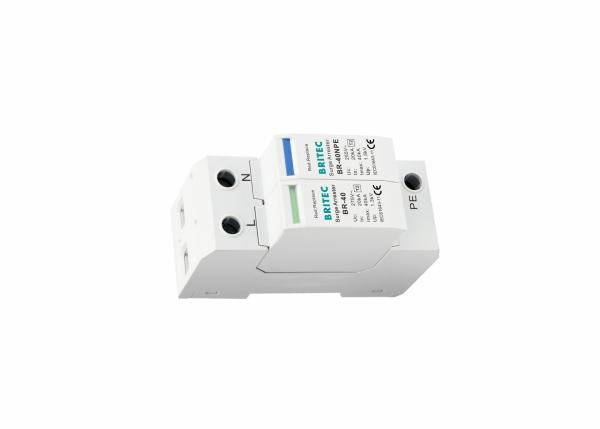

40kA 275V Type 2 Class C Mov Surge Protector Lightning Arrester
40kA 275V Type 2 Class C Mov Surge Protector Lightning Arrester
40kA 275V Type 2 Class C Mov Surge Protector Lightning Arrester
40kA 275V Type 2 Class C Mov Surge Protector Lightning Arrester
Specifications
Brand Name :
BRITEC
Model Number :
BR-40 1P+NPE
Certification :
CE
Place of Origin :
China
MOQ :
200 piece / pieces
Payment Terms :
T/T
Supply Ability :
50000 pieces per month
Delivery Time :
15-30 days after payment
Packaging Details :
EXPORT PACKING
Test standards :
IEC 61643-11 / EN61643-11
Indoor/outdoor :
Indoor
Service type :
one phase
Uc :
150V / 275V / 320V / 385V / 440V
Uc(N-PE) :
255V
In :
20kA
Imax :
40kA
tA :
≤25ns
tA(N-PE) :
≤100ns
Mounting :
Din rail
Description

Single-Phase MOV 40 kA AC Surge Protection Device SPD Class II DIN-Rail IEC 61643-11

Single-Phase MOV 40 kA AC Surge Protection Device Product Description:
• 40kA 275V Type 2 Class C AC Surge Protection Device.
• Our offered surge protector is designed by utilizing the top grade material and the most advanced techniques.
• Surge Arrester for Single Phase Supply.
• Single phase.
• Surge voltage arrester for mounting on DIN rail.
• Low residual voltage and quick response
• Also available in different voltage rating.
• Reliable control thanks to Thermo Dynamic Control disconnector.

Single-Phase MOV 40 kA AC Surge Protection Device Product Details:

BR150 40 1P+NPE BR275 40 1P+NPE BR320 40 1P+NPE BR385 40 1P+NPE BR440 40 1P+NPE

SPD classification according to EN61643-11

 Type 2 Type 2 Type 2 Type 2 Type 2

SPD classification according to IEC61643-11

 Class II Class II Class II Class II Class II

Max. continuous operating a.c. voltage Uc

 150V 275V 320V 385V 440V

Max. continuous operating a.c. voltage[N -PE] Uc

 255V 255V 255V 255V 255V

Nominal discharge current (8/20us) In

 20kA 20kA 20kA 20kA 20kA

Max. discharge current(8/20μs) Imax

 40kA 40kA 40kA 40kA 40kA

Voltage protection level Up

 ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV

Voltage protection level 5kA Up

 ≤0.6kV ≤1kV ≤1.2kV ≤1.4kV ≤1.6kV

Voltage protection level [N-PE] Up

 ≤1.5kV ≤1.5kV ≤1.5kV ≤1.5kV ≤1.5kV

Follow current extinguishing capability[ N-PE]a.c.Ifi

 100Arms 100Arms 100Arms 100Arms 100Arms
Max. backup fuse 125A gG 125A gG 125A gG 125A gG 125A gG
Response time tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Response time [N-PE] tA ≤100ns ≤100ns ≤100ns ≤100ns ≤100ns
Operating temperature range Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃

Operating state / fault indication

 green / red green / red green / red green / red green / red
Cross-section area (Min.) 4mm2 4mm2 4mm2 4mm2 4mm2
Cross-section area (Max.) 35mm2 35mm2 35mm2 35mm2 35mm2
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20 IP20
Order Code B8251 B8253 B8255 B8257 B8370
Order Code (With remote signaling) B8252 B8254 B8256 B8258 B8371

Dimension:

40kA 275V Type 2 Class C Mov Surge Protector Lightning Arrester

Single-Phase MOV 40 kA AC Surge Protection Device Use:
• A surge protector attempts to limit the voltage supplied to an electric device by either blocking or shorting to ground any unwanted voltages above a safe threshold.
• For using in the lightning protection zones concept at boundary 1-2.
• Prevent all kinds of electronic and electrical equipment from being damaged by lightning overvoltage.
• Use to prevent electrical equipment due to lightening
• To protect electrical appliances.
• We offer this surge protector is available for single phase systems.
Single-Phase MOV 40 kA AC Surge Protection Device Features:
• Strong construction.
• With remote signaling contact for control device.
• Easy to operate.
• Fault indication via red mark in the inspection window.
• Effective functioning
• Minimal maintenance.
• Precisely designed
• Excellent performance
• Longer life
Single-Phase MOV 40 kA AC Surge Protection Device Advantage:
1. CE,TUV,CB,ISO9001 Certificates
2. More than 17 years, manufacture experience
3. 90% of our products are exported to Europe, south America, Africa and Asian other countries.
4. Strong technological capacity, advanced production testing equipment.

About us:

Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. We are a comprehensive international manufacturer & trading company for SPDs. Most of our products are sold to Germany, United Kingdom, Italy, Spain, France, Hungary, Brazil, Argentina, South Korea, Hongkong, Singapore, Malaysia, Thailand, Indonesia, other countries and regions. Our business principle is to satisfy our customers with honest, surefooted and considerate service. We sincerely and warmly expect customers and friends from the world to cooperate with us for mutual development and more prosperous future.

40kA 275V Type 2 Class C Mov Surge Protector Lightning Arrester

Shipping:

40kA 275V Type 2 Class C Mov Surge Protector Lightning Arrester

Certificate:

40kA 275V Type 2 Class C Mov Surge Protector Lightning Arrester

FAQ:

1. When can I pick up my goods after purchase?

A: We usually arrange the delivery within 30 work days after purchase of SPDs. It takes about 7 work days to your place by express. If you want further info, you can contact us.

2: Can we get samples and how long can get them?
A: Yes, samples could be offered, delivery time 10 days. But the sample fee and freight for express is on buyer’s account. You can also call your local express to pick up samples from our office.


3: Can you produce customized product?
A: Yes. The color, logo could all be customized according to your personalized requirements.

4: What is your MOQ?
A: Our MOQ is 100pcs, depends on the product you need.

5: Which payment way is workable?
A: T/T, PayPal for your selection.
