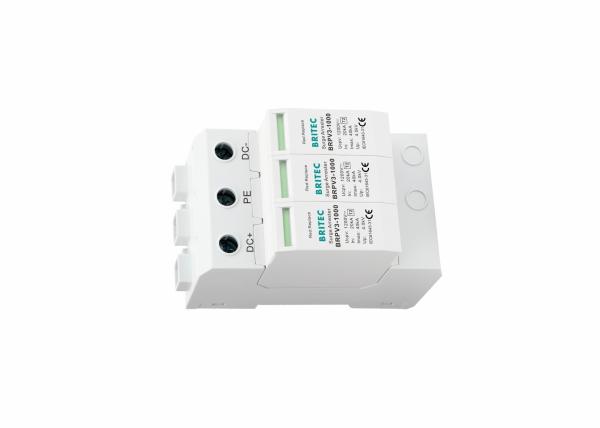

40ka DC Module PV Surge Protection Device For Solar System
40ka DC Module PV Surge Protection Device For Solar System
40ka DC Module PV Surge Protection Device For Solar System
40ka DC Module PV Surge Protection Device For Solar System
Specifications
Brand Name :
BRITEC
Model Number :
BRPV3-1000
Certification :
CE/TUV/CB
Place of Origin :
China
MOQ :
100 piece / pieces
Payment Terms :
T/T
Supply Ability :
50000 pieces per month
Delivery Time :
15-30 days after payment
Packaging Details :
EXPORT PACKING
Product name :
solar energy surge lightning SPD
Test standards :
EN61643-31 / IEC61643-31
DC :
1200V
kA :
20kA—40kA
Up :
≤4.0kV
Material :
Thermoplastic UL94-V0
tA :
≤25ns
Mounting on :
35mm Din rail
Protection class :
IP20
Transport package :
Export standard
Description


PV DC SPD 20ka-40ka DC Module Surge Protection Device Designed for Solar System

PV DC SPD 20ka-40ka DC Module Surge Protection Device Description:
• BRPV3 PV Surge Protective Device 40KA DC SPD suitable for the new energy wind power generation system, its working voltage covers 600V, 1200V and 1500V.
• The BRPV series Surge Protection are designed to protect against lightning surge voltages in photovoltaic power supply networks.
• It is installed in the main power system at DC circuit, to protect against the indirect lighting current, direct lighting current or other instantaneous over voltage.


PV DC SPD 20ka-40ka DC Module Surge Protection Device Product Details:

BRPV3-1000
SPD classification according to EN61643-31 Type 2
SPD classification according to IEC61643-31 Class II
Max. continuous operating dc voltage Ucpv 1200V
Nominal discharge current (8/20us) In 20kA
Max. discharge current (8/20us) Imax 40kA
Voltage protection level [(DC+/DC-)→PE] Up ≤4.0kV
Response time tA ≤25ns
Operating temperature range Tu -40℃-80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Degree of protection IP20
Order Code B18010
Order code(With remote signal) B18012


Dimension:

40ka DC Module PV Surge Protection Device For Solar System

PV DC SPD 20ka-40ka DC Module Surge Protection Device Features:
a. Module design, convenient installation, with easy electric maintains operation.
b. These units must be installed in parallel on the DC networks to be protected
c. Built-in over current and over heat, temperature control open circuit technology.
d. The BRPV3-1000 is available for the main operating voltages in photovoltaic: 1200 Vdc.
e. Adopt independent intelligence property right and high performance sensitivity resistance plates.
f. The use of BRPV3-1000 Surge Protection is recommended at both ends of the DC power supply line (solar panel side and inverter/converter side)
g. Small creepage current, fast response time, remnant low voltage.
h. The BRPV series is made with plug-in modules to allow a fast and easy maintenance in case of failure (disconnection from the DC network).
i. With remote connection, can realize remote control.
Overvoltage can hit a PV system in several different ways:
• From the grid if lightning strikes on medium or low voltage conductors
• From the earth if lightning strikes close to the inverter
• From the DC side if lightning strikes the PV modules
• SPDs are thus necessary to protect inverters and other sensitive equipment.
Working principle of product:
In the solar photovoltaic system, the inductive or capacitive coupling voltage is caused by the lightning shock and the switching operation of the upstream power supply system. Therefore, the surge may damage the photovoltaic modules and inverters, which will cause serious consequences for the operation of the photovoltaic system. The photovoltaic lightning arrester is specially developed for this purpose. The lightning protection module of the DC power supply, once the high voltage, and endanger the insulation of the protected equipment, the lightning arrester acts immediately, and the high voltage impact current is directed to the earth, thus limiting the amplitude of the voltage and protecting the insulation of the equipment. When the overvoltage is gone, the arrester is restored to its original state quickly, so as to protect the power equipment.


Our Services:

• 21 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.


Packaging & Shipping:

40ka DC Module PV Surge Protection Device For Solar System

Company information:

Wenzhou Britec Electric Co., LTD. a Chinese professional SPD manufacture company. Our company was established in 2003, is China's professional produce low voltage surge arrester of enterprises. Welcome the friends from anywhere in the world, as long as you have about surge protection device demand, please contact us!

40ka DC Module PV Surge Protection Device For Solar System

Certification:

40ka DC Module PV Surge Protection Device For Solar System

FAQ:

Q: Are you an agent or a factory?
A: We are a factory.

Q: What is the port of exportation for your factory?
A: Ningbo/Shanghai,China.

Q: What’s your main market?
A: Western Europe, Eastern Europe, northern Europe, southern Europe, Central Europe, East Asia, South Amercia, the Middle East and so on.

Q: What’s the MOQ?
A: Normally 100pcs.

Q: Why choose us?
A: We have rich experience in produce and professional quality control system.

Q: Can you let me how to control the quality?
A: We have our QC team and quality control system, before packaging, we will inspect the goods carefully. We will try our best to make you satisfactory.

Q: What’s the payment terms?
A: 30% deposit, balance before shippment.

Q: What’s the mass production lead time?
A: Usually 20 days after receiving the customer’s deposit.

Q: What the certificates do you have?
A: TUV, CE, CB etc.
