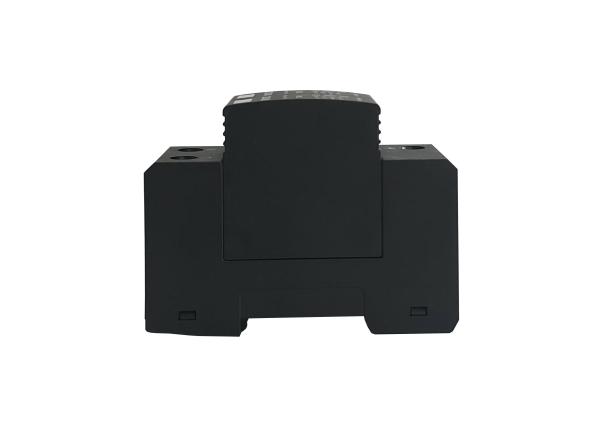

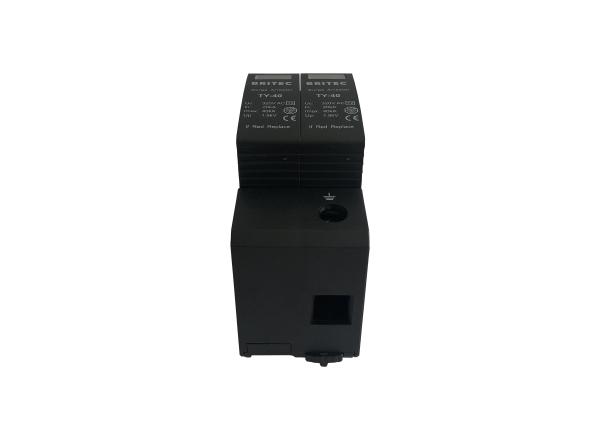

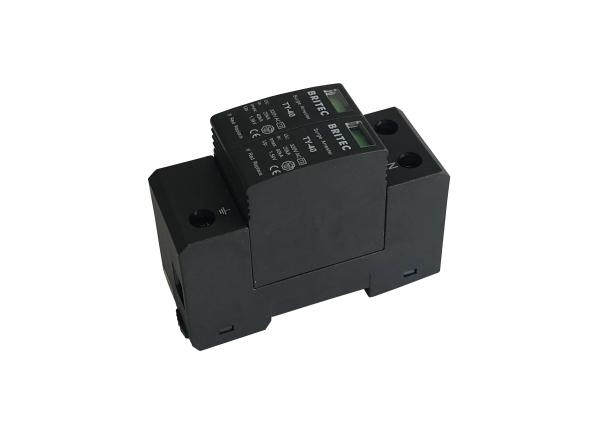

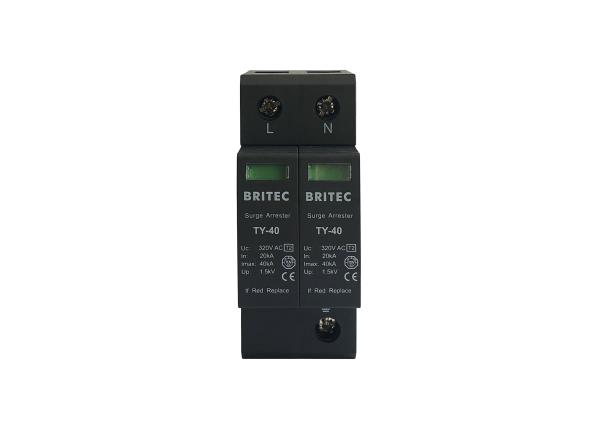

Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device
Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device
Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device
Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device
Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device
Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device
Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device
Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device
Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device
Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device
Specifications
Brand Name :
BRITEC
Model Number :
TY-40B 2P
Certification :
CE
Place of Origin :
China
MOQ :
200 piece / pieces
Payment Terms :
T/T
Supply Ability :
50000 pieces per month
Delivery Time :
15-30 days after payment
Packaging Details :
EXPORT PACKING
Test standards :
IEC 61643-11 / EN61643-11
Uc :
150V / 275V / 320V / 385V / 440V
In :
20kA
Imax :
40kA
Enclosure :
Thermal plastic UL94-V0
tA :
≤25ns
Mounting on :
35mm Din rail
Tu :
-40℃...+80℃
Class :
Type 2
Modular :
Pluggable design
Description

Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device

Type 2 Pluggable 2P Modular Surge Arrestor Feature:

• Model: TY-40B 2P.
• The green indicator flag in the inspection window shows the operating state of the protection modules.
• Remote monitoring switch signal can be achieved.
• IEC61643-11:2012 confirmed.
• Prewired complete unit consisting of a base part and plug-in protection modules.
• Modular surge arrester for use in single-phase TN-S systems.
• The compact protection modules incorporate the complete protective circuit as well as the monitoring and disconnection device.

Type 2 Pluggable 2P Modular Surge Arrestor Product Details:

TY-40B150 2P TY-40B275 2P TY-40B320 2P TY-40B385 2P TY-40B440 2P
SPD classification according to EN61643-11 Type 2 Type 2 Type 2 Type 2 Type 2
SPD classification according to IEC61643-11 Class II Class II Class II Class II Class II
Max. continuous operating a.c. voltage Uc 150V 275V 320V 385V 440V
Nominal discharge current (8/20us) In 20kA 20kA 20kA 20kA 20kA
Max. discharge current(8/20μs) Imax 40kA 40kA 40kA 40kA 40kA
Voltage protection level Up ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV
Voltage protection level 5kA Up ≤0.6kV ≤1kV ≤1.2kV ≤1.4kV ≤1.6kV
Max. backup fuse 125A gG 125A gG 125A gG 125A gG 125A gG
Response time tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication green / red green / red green / red green / red green / red
Cross-section area (Min.) 4mm2 4mm2 4mm2 4mm2 4mm2
Cross-section area (Max.) 35mm2 35mm2 35mm2 35mm2 35mm2
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20 IP20

Dimension:

Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device

Type 2 Pluggable 2P Modular Surge Arrestor Application:

• Protects connected equipment against overvoltage from switching and the secondary effects of lightning strikes.
• This surge protection device is used to protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage.
• Protection against indirect lightning and direct lightning effects or other instant overvoltage surges, suitable for surge protection in residential, tertiary and industrial applications.

Type 2 Pluggable 2P Modular Surge Arrestor Advantage:

• High discharge capacity.
• High reliability.
• The plug-in protection module, Easy replacement.
• Protect the equipment's power system from lightning damage with stable performance.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester
• All products will be well packed before shipping
• Standard packaging, and you can also tell us your own requirements on packaging
• Faster delivery
• Individually Tested Prior to Shipment

Company profile:

Wenzhou Britec Electric Co.,Ltd. is founded in 2003, which is a professional SPD manufacturer. And through the unremitting efforts of company leaders and employees, it has formed a one-stop service enterprise integrating technology, research and development, design, production and sales, and is committed to creating high-quality surge protection products. Our products have been tested and certified by testing agencies and hold certification certificates.

Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device

Production line:

Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device

Installation:

• The line of surge arresters includes a full range of compact protectors for installation on DIN rail
• Green tab, normal work status, Red tab, failure status, need to be replaced rapidly
• Installation must be performed only by electrically skilled operator
• If protector is to be located outdoors and exposed to elements, mount protector inside a suitable weatherproof enclosure.)
