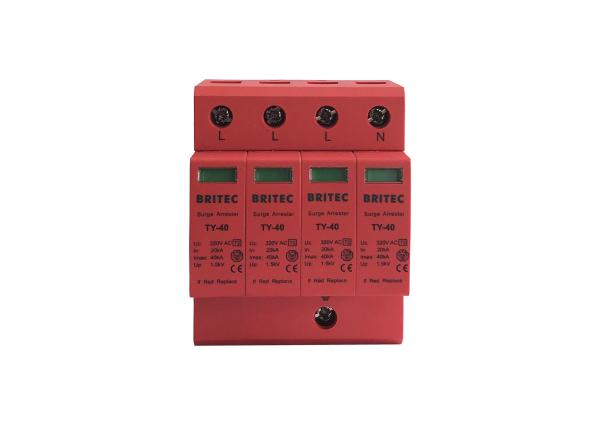

BRITEC TY-40 320V Type 2 Surge Arrestor 40kA Pluggable Surge Protection Device
BRITEC TY -40 Type 2 Surge Protection Device Feature:
• Protection class:Type 2, Class II.
• Pole number:4P.
• Max. discharge current:40kA(8/20μs).
• Enclosure material:Thermal plastic UL94-V0.
• Using the L-L-L-N (4 MOV) protection mode.
• Remote alarm mode can be selectable.
• Patented fast tripping mechanism.
• Complies with EN 61643-11 on arresters connected to low voltage distribution systems.
BRITEC TY -40 Type 2 Surge Protection Device Product Details:
TY150 40 4P | TY275 40 4P | TY320 40 4P | TY385 40 4P | TY440 40 4P | |
SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | Type 2 | Type 2 |
SPD classification according to IEC61643-11 | Class II | Class II | Class II | Class II | Class II |
Max. continuous operating a.c. voltage Uc | 150V | 275V | 320V | 385V | 440V |
Nominal discharge current (8/20us) In | 20kA | 20kA | 20kA | 20kA | 20kA |
Max. discharge current(8/20μs) Imax | 40kA | 40kA | 40kA | 40kA | 40kA |
Voltage protection level Up | ≤0.8kV | ≤1.3kV | ≤1.5kV | ≤1.8kV | ≤2.0kV |
Voltage protection level 5kA Up | ≤0.6kV | ≤1kV | ≤1.2kV | ≤1.4kV | ≤1.6kV |
Max. backup fuse | 125A gG | 125A gG | 125A gG | 125A gG | 125A gG |
Response time tA | ≤25ns | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
Operating temperature range Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
Operating state / fault indication | green / red | green / red | green / red | green / red | green / red |
Cross-section area (Min.) | 4mm2 | 4mm2 | 4mm2 | 4mm2 | 4mm2 |
Cross-section area (Max.) | 35mm2 | 35mm2 | 35mm2 | 35mm2 | 35mm2 |
For mounting on | 35mm Din rail | ||||
Enclosure material | Thermal plastic UL94-V0 | ||||
Degree of protection | IP20 | IP20 | IP20 | IP20 | IP20 |
Dimension:
BRITEC TY -40 Type 2 Surge Protection Device Application:
• Protecting low-voltage consumers' installations against indirect lightning discharges.
• Suitable for 150V / 275V / 320V / 385V / 440V voltage power supply and distribution systems.
• Suit for applied power supply systems, used to guard sensitive equipments from voltage spike.
• Used to protect electrical & electronic devices against switching surges generated due to switch off of heavy inductive loads like transformers, heavy motors, etc.
• Designed for installations where direct lightning strike risk is reduced (without LPS or medium risk).
• Also used in addition to the SPD type 1 in order to limit the operating voltage arresters.
BRITEC TY -40 Type 2 Surge Protection Device Advantage:
• Anti shock, flame retardant plastic are adopted.
• Plug-in module/base design facilitate replacement of a failed module without the need to remove system wiring.
• High performance varistor with thermal disconnection tripping device.
• IP20 protection.
• Incorporate technology-based high energy varistors.
Our Services:
Installation:
• Installed between the power supply network and equipment for relief, suppression and reduce the over current and overvoltage resulting from induction stroke or internal power grid system.
