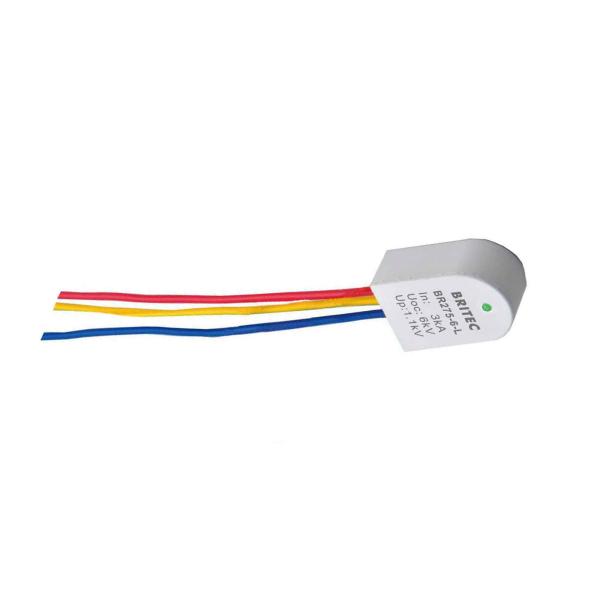

Uoc / In (8/20μS) 6kV / 3kA Type 3 Spd Class III Surge Arrester Compact Design
Uoc / In (8/20μS) 6kV / 3kA Type 3 Spd Class III Surge Arrester Compact Design
Uoc / In (8/20μS) 6kV / 3kA Type 3 Spd Class III Surge Arrester Compact Design
Uoc / In (8/20μS) 6kV / 3kA Type 3 Spd Class III Surge Arrester Compact Design
Specifications
Brand Name :
BRITEC
Model Number :
BR275-6
Certification :
CE
Place of Origin :
China
MOQ :
200 piece / pieces
Payment Terms :
T/T
Supply Ability :
50000 pieces per month
Delivery Time :
15-30 days after payment
Packaging Details :
EXPORT PACKING
Test standards :
IEC 61643-11 / EN61643-11
Un :
230V
In :
3kA
Material :
Thermal plastic UL94-V0
tA :
≤25ns
Mounting on :
35mm Din rail
Uoc :
6kV
Tu :
-40℃...+80℃
Class :
Type 3
Item :
SPD
Description


Compact Design Uoc/In (8/20μs) 6kV/3kA Type 3 Class III Surge Arrester

Uoc / In (8/20μS) 6kV / 3kA Type 3 Spd Class III Surge Arrester Feature:

• Protection class: Type 3, Class III.
• Nominal AC Voltage, 230V.
• Nominal Discharge current: 3kA.
• Rated to IP20.
• Type 3 SPD according to IEC61643-11 and EN61643-11.
• BR275-6 is specially designed to protect a single-phase input.
• It is installed between LPZ2 and LPZ3, it can provide protection for equipments.


Uoc / In (8/20μS) 6kV / 3kA Type 3 Spd Class III Surge Arrester Product Details:

BR275-6-LBR275-6-B
SPD classification according to EN61643-11Type 3Type 3
SPD classification according to IEC61643-11 Class IIIClass III
Nominal a.c. voltage Un230V230V
Max. continuous operating a.c. voltage Uc275V275V
Max. continuous operating d.c. voltage Uc300V300V
Nominal discharge current (8/20us) In3kA3kA
Combined impulse Uoc6kV6kV
Voltage protection level Up≤1200V≤1200V
Response time tA≤25ns≤25ns
Operating temperature range Tu-40℃-80℃-40℃-80℃
Operating state / fault indicationLEDBEEP
For mounting on35mm Din rail35mm Din rail
Enclosure material Thermal plastic UL94-V0 Thermal plastic UL94-V0
Degree of protectionIP20IP20
Order CodeB8455B8457
Order Code (With remote signaling)B8456B8458


Dimension:

Uoc / In (8/20μS) 6kV / 3kA Type 3 Spd Class III Surge Arrester Compact Design

Uoc / In (8/20μS) 6kV / 3kA Type 3 Spd Class III Surge Arrester Application:

• Designed for installation into electrical installation systems, e.g.: cable ducts and flush-mounted sockets as an additional protection.
• For use in all installation systems of terminal equipment.
• For all installation systems of 230 V terminal equipment.
• For transient current protection.
• For protection of final equipment (TV, PC, etc.).
• Used for electric power supply networks, telephone networks, and communication and automatic control buses.

Uoc / In (8/20μS) 6kV / 3kA Type 3 Spd Class III Surge Arrester Advantage:

• A compact plastic enclosure, disconnection signals.
• Its small size means that it can be mounted in confined spaces.
• Acoustic fault indication and vision fault indication.
• 35 mm Din rail mounting.
• Have a low discharge capacity.


Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.


What is surge?

Surges or transients are short duration increases voltage measured between two or more conductors. These potentially harmful voltages can be induced into a building from a direct strike of from secondary effects of lightning which can reach up to 6000 Volts.

What is SPD?

SPD is designed to limit transient overvoltages of atmospheric origin and divert current waves to earth, so as to limit the amplitude of this overvoltage to a value that is not hazardous for the electrical installation and electrical switchgear and control gear.
Payment & Shipping:
Uoc / In (8/20μS) 6kV / 3kA Type 3 Spd Class III Surge Arrester Compact DesignUoc / In (8/20μS) 6kV / 3kA Type 3 Spd Class III Surge Arrester Compact Design
Company information:
Wenzhou Britec Electric Co.,Ltd. was founded in 2003, it's a professional manufacturer in SPDs. We are specialized in developing and marketing of high quality surge arresters, including AC surge protector, DC surge protection device, data surge protective, LED lightning protection in the market. Welcome all customers over the world to contact us for future business relationship and achieving mutual success!
Uoc / In (8/20μS) 6kV / 3kA Type 3 Spd Class III Surge Arrester Compact Design
Certificate showing:
Uoc / In (8/20μS) 6kV / 3kA Type 3 Spd Class III Surge Arrester Compact Design
FAQ:

Q1. How about your MOQ?
A: 100 pcs.

Q2. What's your delivery time?
A: Production lead time 20 days against the order confirmation.

Q3. Do you provide customized service?
A: Customized query is always welcomed in our organization.
