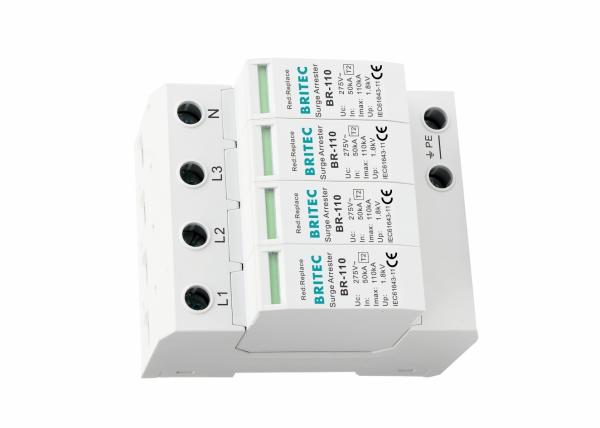

120KA Type 2 Power Overvoltage Protection Surge Arrester AC Lightning
120KA Type 2 Power Overvoltage Protection Surge Arrester AC Lightning
120KA Type 2 Power Overvoltage Protection Surge Arrester AC Lightning
120KA Type 2 Power Overvoltage Protection Surge Arrester AC Lightning
Specifications
Brand Name :
BRITEC
Model Number :
TY1-120 4P
Place of Origin :
China
MOQ :
100 Piece/Pieces
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
50000 Piece/Pieces Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
EXPORT PACKING
Warranty :
2 years
Item Name :
Surge protection device
Color :
White
Type :
Ac Surge Protector
Material :
Plastic
Pole number :
4P
UC :
385V
Imax :
120kA
Degree of protection :
IP20
Tu :
-40℃-80℃
Description

120KA Surge Arrester Type 2 Power Overvoltage Protection AC Lightning Protection

120KA Surge Arrester Type 2 Power Overvoltage Protection Product description:
• Britec Surge Protection Device (SPD) (also known as power Surge protector, overvoltage protector), its design according to GB18802.1, IEC61643-1 standards
• Type 2 Class II surge arrester.
• Applicable to lightning strike electromagnetic pulse (LEMP) protection for TN-S power supply line systems with ac 380V (50Hz/60Hz) and below.

120KA Surge Arrester Type 2 Power Overvoltage Protection Technology characteristic:

Specification TY1-120 4P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 2
SPD dassification according to IEC61643-11 Class II
Max continuous 0perating a.c. voltage Uc 385V
Max. discharge current (8/20µs) Imax 120kA
Norminal discharge current (8/20µs) In 60kA
Voltage protection level Up ≤2.5kV
Response time tA ≤25ns
For mounting on 35mm Din rail
Degree of protection IP20
Max. backup fuse 315A gG
Operating temperature range Tu -40℃—80℃
Cross-section area (Min.) 6mm2
Cross-section area (Max.) 35mm2
Enclosure material Thermal plastic UL94-V0

120KA Surge Arrester Type 2 Power Overvoltage Protection Features:
• Optional remote signal terminal alarm function, easy to remote alarm monitoring
• Up to 120KA(8/20μs) lightning current impact
• Fast reaction speed, action response time less than 25ns
• Flame retardant housing design, easy to install on 35mm electrical guide rail
• Built-in thermal release failure and release device, so that the protector can be automatically disconnected due to overheating, breakdown failure

Product standard:
1) EN60950:Safety of information technology equipment, including electrical business equipment
2) GB18802.1 low-voltage distribution system SP: performance demand and test method;
3) IEC61643-1:1998 Surge Protective devices connected to Low-voltage power
4) YD/T 1235.1 Communication Station low-voltage power system SPD technical requirement;
5) YD/T 1235.2 Communication Station low-voltage power system SPD test method;
6) Distribution system.Part1:Performance requirements and testing methods

Company information:

Wenzhou Britec Electric is specialized in manufacturing SPDs. We were established in 2003, located in Yueqing, Zhejiang, China. Our main products include AC surge arrester, DC surge protector, data surge protection device etc.

120KA Type 2 Power Overvoltage Protection Surge Arrester AC Lightning

Shipping:

120KA Type 2 Power Overvoltage Protection Surge Arrester AC Lightning

Our service:

• Quick Response, we will reply your inquiry within 24 hours.

• Trial order acceptable.

• Supporting OEM/ODM, customzied as per customer's need.

• Delivery Punctually.

• QC SYSTEM, we have perfect and strict quality control team, ensure every product is 100% qualified.

• Perfect After-sales, any quality problem will be solve within 24 hours to ensure satisfy every customer.

Our certificate:

120KA Type 2 Power Overvoltage Protection Surge Arrester AC Lightning

FAQ:

Q1: Are you a factory or a trade company?

A: We are the factory.

Q2: Where are your products distributed?

A: Our products are distributed all over the world, Main market are Europe, South America, the United Arab Emirates, Africa and so on.

Q3: Can I have a sample?

A: Yes, but according to our company's policy, we don't provided free samples, while you should pay the sample cost and freight fee; the sample can be delivered by TNT/DHL/UPS/FEDEX.

Q4: Which port is the nearest from you?

A: Ningbo port or Shanghai port.

Q5: What's your lead time?

A: Sample lead time: 10 working days. Mass production: usually 20days. For big orders, honestly, it depends on the order quantity and designs.

Q6: When can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry as priority.

Q7: Can you do the design for us?

A: Yes, we have a professional team having rich experience in design, electrical system developing and manufacturing. Please just tell us your ideas and we will help you to carry out your ideas into a perfect artwork.

Q8: OEM & ODM are accepted or not?

A: OEM&ODM are welcome.
