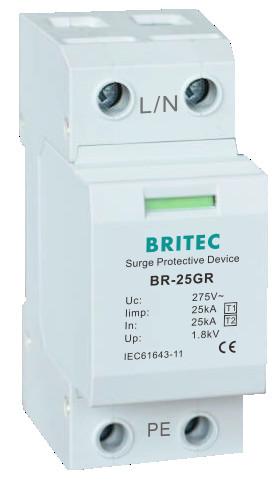

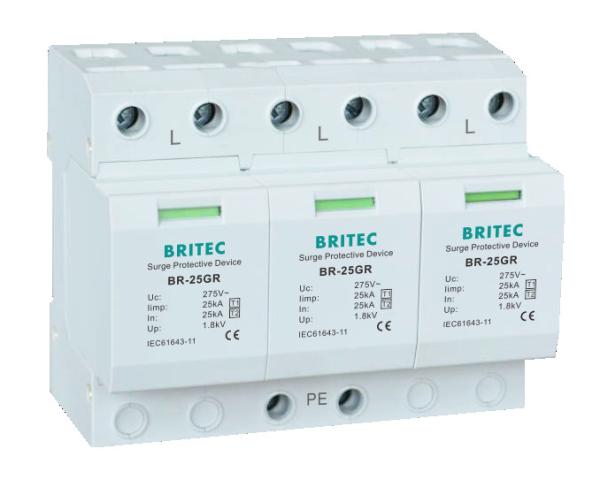

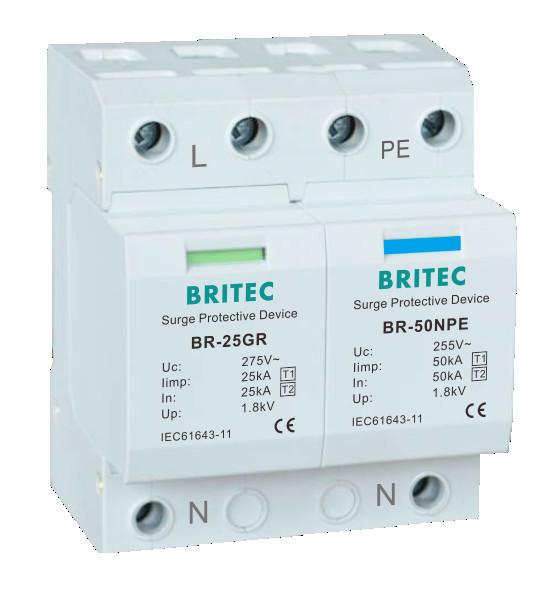

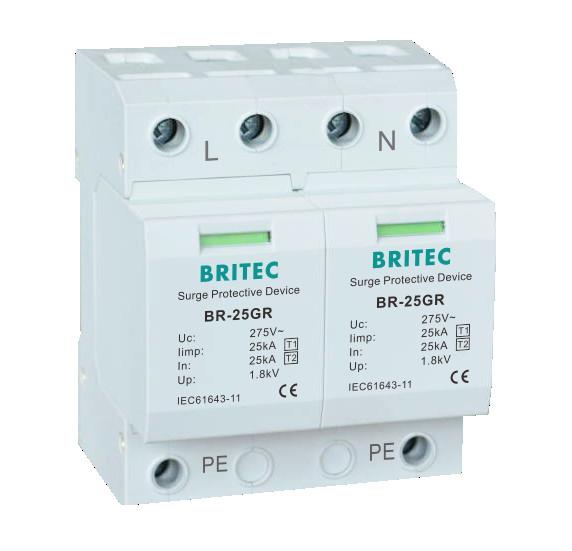

BR-25GR 1+1 Lightning 25kA Type 1 Surge Protection Device thunder protection spd
BR-25GR 1+1 Lightning 25kA Type 1 Surge Protection Device thunder protection spd
BR-25GR 1+1 Lightning 25kA Type 1 Surge Protection Device thunder protection spd
BR-25GR 1+1 Lightning 25kA Type 1 Surge Protection Device thunder protection spd
BR-25GR 1+1 Lightning 25kA Type 1 Surge Protection Device thunder protection spd
BR-25GR 1+1 Lightning 25kA Type 1 Surge Protection Device thunder protection spd
BR-25GR 1+1 Lightning 25kA Type 1 Surge Protection Device thunder protection spd
BR-25GR 1+1 Lightning 25kA Type 1 Surge Protection Device thunder protection spd
BR-25GR 1+1 Lightning 25kA Type 1 Surge Protection Device thunder protection spd
BR-25GR 1+1 Lightning 25kA Type 1 Surge Protection Device thunder protection spd
Specifications
Brand Name :
BRITEC
Model Number :
BR-25GR 1+1
Certification :
TUV/CB/CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
1 Piece/Pieces
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
50000 Piece/Pieces Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
EXPORT PACKING
Item Name :
thunder protection
Place of Origin :
Zhejiang, China (Mainland)
Number of positions :
1+1
Model Numbers :
BR-25GR 1+1
Rated Voltage :
10/350
Waveform :
IEC61643-1
Type :
T1
Package :
Carton Package
Description

Type 1 25kA Lightning Surge Arrester Module surge voltage protector ac SPD

surge voltage protector Features:

Benefits

The impulse current of 25kA per pole (10/350 µs wave) satisfies all requirements for overvoltage surge protection

The early creation of the electric arc by its electronic ignition device reduces the protection level Up to an optimum value of 2,5kV

OVR T1 SPDs contain a dedicated arc chamber for extinguishing the electrical arc following the discharge, they can open short circuits up to 50kA without using back up protection.

surge voltage protector Technology characteristic:

BR-25GR 1+1 Lightning 25kA Type 1 Surge Protection Device thunder protection spd

BR-25GR 1+1 Lightning 25kA Type 1 Surge Protection Device thunder protection spd

BR-25GR 1+1
Nominal voltage Un 230V / 400V AC
Max. continuous operating a.c. voltage Uc 385V
Lightning impulse current (10/350us) (L-N / N-PE) Iimp 25kA / 50kA
Nominal discharge current (8/20us) (L-N / N-PE) In 25kA / 50kA
Maximum discharge current (8/20us) (L-N / N-PE) Imax 100kA
Voltage protection level (L-N / N-PE) Up ≤2.0kV
Response time tA ≤100ns
Max. backup fuse 315A
Operating temperature range Tu -40℃—80℃
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Test standards IEC 61643-11, EN 61643-11

surge voltage protector Application:

Application: Grid Power, AC Power Circuit, AC Distribution Box, LT Electrical Panel

AC SPD uses for AC Power or Grid Power to protect against transient ac voltage.

For the lowest price please contact us.

Other type for choose:

1,Maximum discharge current:20kA,40kA,80kA,100kA,120kA,200kA

2,Number of poles:1P,1P+N ,2P,3P,3P+N, 4P

3,Maximum continuous operating voltage: 275V,320V,385V ,440V,550V,800V,1000V

Our Main Product

Type 1 surge protection device.

Type 2 surge protection device.

Type 1 + Type 2 surge protection device.

Type 3 surge protection device.

surge voltage protector Certificate:

CB, CE, TUV,RoHS Certificate:

BR-25GR 1+1 Lightning 25kA Type 1 Surge Protection Device thunder protection spd
Company information:

Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. We are a comprehensive international manufacturer & trading company for SPDs. Most of our products are sold to Germany, United Kingdom, Italy, Spain, France, Hungary, Brazil, Argentina, South Korea, Hongkong, Singapore, Malaysia, Thailand, Indonesia, other countries and regions. Our business principle is to satisfy our customers with honest, surefooted and considerate service.

Production line:
BR-25GR 1+1 Lightning 25kA Type 1 Surge Protection Device thunder protection spd
BR-25GR 1+1 Lightning 25kA Type 1 Surge Protection Device thunder protection spd
BR-25GR 1+1 Lightning 25kA Type 1 Surge Protection Device thunder protection spd
Laboratory equipment:
BR-25GR 1+1 Lightning 25kA Type 1 Surge Protection Device thunder protection spd
Shipping:
BR-25GR 1+1 Lightning 25kA Type 1 Surge Protection Device thunder protection spd
FAQ:
Q1: What is the MOQ?
A1: 1pcs.

Q2: Is OEM/ODM available?
A2: Yes, it is! Our products can be Customized. We have design and engineer teams, we can
customize products according to customers’ drawing or requirements.

Q3: Can we put/show our own Logo on your products?
A3: Yes.

Q4: What is the Terms of Payment?
A4: T/T, PAYPAL, L/C etc.

Q5: How is the delivery time?
A5: It depends your order quantity and it normally takes 7-20 days.
