Specifications
Brand Name :
BRITEC
Model Number :
BR-50GR 385 1P
Certification :
TUV/CB/CE/ROHS/ISO9001
Place of Origin :
China Zhejiang
MOQ :
10 Piece/Pieces
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
50000 Piece/Pieces Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
EXPORT PACKING
Item Name :
type 1 surge protective device
Type :
Ac Surge Protector
Place of origin :
Zhejiang, China
Pole number :
1P 2P 3P 4P 1+1 3+1
Packing :
Carton
Current wave :
10/350 µs
Color :
white
Warranty :
5 years
Technology :
Spark gap technology
MOQ :
10 PCS
Description

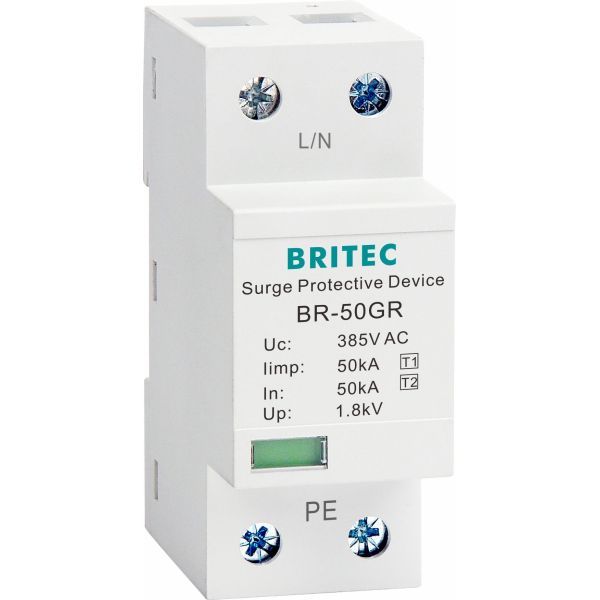

50 kA Surge Protection Devices single surge protector type 1 SPD

Surge Protection Devices Features:
Type 1 Surge Protective Device (SPD)s are intended for installation between the secondary of the service transformer and the line side of the service equipment overcurrent device, as well as the load side, including watt-hour meter socket enclosures, and are intended to be installed without an external overcurrent protective device. Type 1 devices are dual-rated for Type 2 applications as well, providing the highest ratings available for installation at the service entrance.

Surge Protection Devices Technology characteristic:

BR-50GR 385 1P 50kA Ac Din Rail Type 1 Surge Protective device surge Arrester SPD spd t1 t2 ac

Specification BR-50GR 1P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 1 + Type 2
SPD dassification according to IEC61643-11 Class I + Class II
Max continuous 0perating a.c. voltage Uc 385V
Lightning impulse current (10/350µs) limp 50kA
Norminal discharge current (8/20µs) In 50kA
Maximun discharge current (8/20µs) Imax 160kA
Voltage protection level Up ≤1.8V
Follow current extinguishing capability a.c. lifi 3kA rms
Max. backup fuse 500A gG
Response time tA ≤100ns
For mounting on 35mm Din rail
Degree of protection IP20
Payment term 30% deposit in advance,70% before shipment,100% T/T in advance
Certificate CB/CE/ROHS/ISO9001
Logo Customized logo available
Design ability We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)

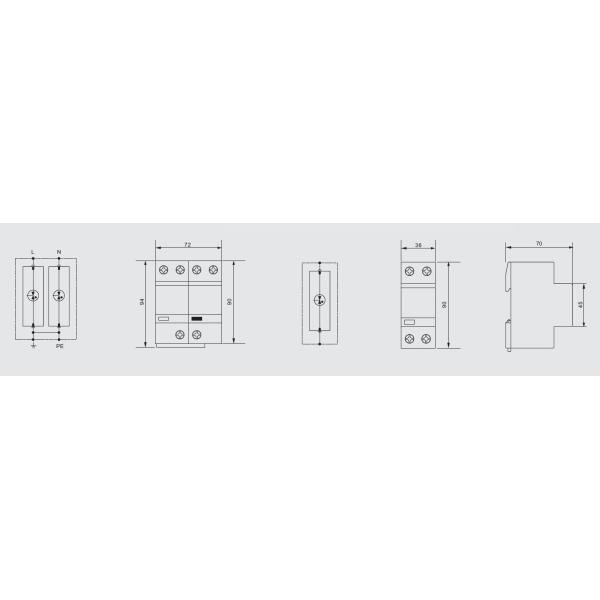

Surge Protection Devices Dimension:

BR-50GR 385 1P 50kA Ac Din Rail Type 1 Surge Protective device surge Arrester SPD spd t1 t2 ac

Application:

• Used in the lightning protection zones concept at boundary LPZ0B-LPZ1.
• For protecting low-voltage consumer's installations against indirect lightning discharges.
• Protect electrical and electronic equipment against transients, originating from lightning, switching of
transformers, lighting, and motors.

For the lowest price please contact us.

Other type for choose:

1,Maximum discharge current:20kA,40kA,80kA,100kA,120kA,200kA

2,Number of poles:1P,1P+N ,2P,3P,3P+N, 4P

3,Maximum continuous operating voltage: 275V,320V,385V ,440V,550V,800V,1000V

Our Main Product

Type 1 surge protection device.

Type 2 surge protection device.

Type 1 + Type 2 surge protection device.

Type 3 surge protection device.

Advantage:
• Unique designing, patent technology.
• High discharge capacity.
• Low residual voltage.
• DIN rail mountable and ease of installation.
• Quick thermal response self-protected design.
Our Services:
• 20 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.
Installation:
• Installed at the entrance point of the building, in the main distribution board of this installation.
• It should be used as part of lightning protection systems i.e. when lightning rods or meshed cages are
installed.
• Must install SPD strictly according to the wiring diagram provided.
• Better to under the guidance of professional electrician.
• Green tab, normal work status, Red tab, failure status, need to be replaced Rapidly.
Shipping:
BR-50GR 385 1P 50kA Ac Din Rail Type 1 Surge Protective device surge Arrester SPD spd t1 t2 ac
Company information:
Britec Electric Wenzhou Co., Ltd. is located in the Yueqing city. Britec is dedicated to development,
manufacture, marketing and service of low voltage surge arrester products. The rapidly-developed
regional economy and friendly investment environment ensure Britec’s sustainable developments and
continuous innovations. It is professional in producing SPD.
BR-50GR 385 1P 50kA Ac Din Rail Type 1 Surge Protective device surge Arrester SPD spd t1 t2 ac
BR-50GR 385 1P 50kA Ac Din Rail Type 1 Surge Protective device surge Arrester SPD spd t1 t2 ac
BR-50GR 385 1P 50kA Ac Din Rail Type 1 Surge Protective device surge Arrester SPD spd t1 t2 ac
BR-50GR 385 1P 50kA Ac Din Rail Type 1 Surge Protective device surge Arrester SPD spd t1 t2 ac
FAQ:

Q1. Are you manufacturer or trading office?

A: We are manufacturer in Wenzhou, with the ability to export by ourselves.

Q2: Do you support OEM or ODM?

A: Yes, we support OEM & ODM.

Q3: How's your product markets?

A: Our products are welcomed among Europe, South America, Asia and certain countries in Africa, win

us a good reputation.

Q4. How’s your warranty?

A: All our products are 2-5 years warranted.
