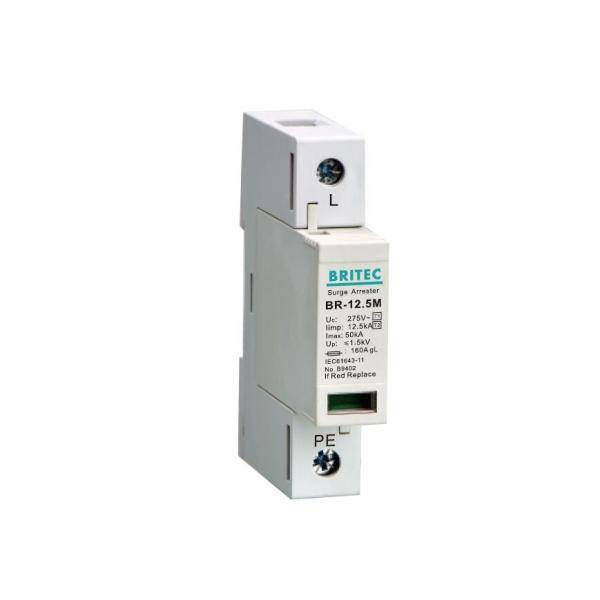

BRITEC BR-12.5M 2P 12.5kA Single Phase Spd lightning arrester surge protective device thunder protector
BRITEC BR-12.5M 2P 12.5kA Single Phase Spd lightning arrester surge protective device thunder protector
BRITEC BR-12.5M 2P 12.5kA Single Phase Spd lightning arrester surge protective device thunder protector
BRITEC BR-12.5M 2P 12.5kA Single Phase Spd lightning arrester surge protective device thunder protector
BRITEC BR-12.5M 2P 12.5kA Single Phase Spd lightning arrester surge protective device thunder protector
BRITEC BR-12.5M 2P 12.5kA Single Phase Spd lightning arrester surge protective device thunder protector
Specifications
Brand Name :
BRITEC
Model Number :
BR-12.5M 2P
Certification :
TUV/CB/CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
1 Piece/Pieces
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
50000 Piece/Pieces Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
EXPORT PACKING
Price :
surge protective device
Item Name :
surge arrester 12.5kA
Model Numbers :
BR-12.5M 2P
Product Type :
QS
EN type :
T1+T2
Configuration :
2p
Place of Origin :
Wenzhou
Response time :
25ns
MOQ :
2 PCS
Description

2p 12.5kA T1 surge arrester Surge Protective Devices single phase spd

We can produce according to your requirements.

Contact us get the lowest price

T1 surge arrester Features:

BRITEC type 1 and type 1+2 are designed to discharge high current surges without any destruction of the installation. This surge protective device is chararcterized by its capacity to withstand impulse current with 10/350 µs wave form which simulate direct impact coming from a natural lightning current. Type 1 and Type 1+2 SPDs are placed at the entrance point of the installation, in the main distribution board for a global protection of this installation.

T1 surge arrester Technology characteristic:

BRITEC BR-12.5M 2P 12.5kA Single Phase Spd lightning arrester surge protective device thunder protector

BR-12.5M 2P
Max. continuous operating a.c. voltage Uc 275V
Lightning impulse current (10/350us) Iimp 12.5kA
Nominal discharge current (8/20us) In 20kA
Maximum discharge current (8/20us) Imax 50kA
Voltage protection level Up ≤1.3kV
Response time tA ≤25ns
Max. backup fuse 160A
Operating temperature range Tu -40℃—80℃
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Test standards

IEC 61643-11, EN 61643-11


1p surge arrester Dimension:

BRITEC BR-12.5M 2P 12.5kA Single Phase Spd lightning arrester surge protective device thunder protector

1p surge arrester Application:

Application-optimized and prewired combined lightning current.
Particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (e.g.: buildings equipped with lightning rods).

1p surge arrester Certificate:

CB, CE, TUV,RoHS Certificate:

BRITEC BR-12.5M 2P 12.5kA Single Phase Spd lightning arrester surge protective device thunder protector
Company information:

Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. Our company specialized in research and development of surge protection devices.The series of surge protection device Type 1 and Type 2 and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.
.

BRITEC BR-12.5M 2P 12.5kA Single Phase Spd lightning arrester surge protective device thunder protector
Production line:
BRITEC BR-12.5M 2P 12.5kA Single Phase Spd lightning arrester surge protective device thunder protector
BRITEC BR-12.5M 2P 12.5kA Single Phase Spd lightning arrester surge protective device thunder protector
Laboratory equipment:
BRITEC BR-12.5M 2P 12.5kA Single Phase Spd lightning arrester surge protective device thunder protector
BRITEC BR-12.5M 2P 12.5kA Single Phase Spd lightning arrester surge protective device thunder protector
Shipping:
BRITEC BR-12.5M 2P 12.5kA Single Phase Spd lightning arrester surge protective device thunder protector
FAQ:

Q: Are you trading company or manufacturer?

A: We are professional manufacturer specialized in orthopedic and sport products. And we trade our products with our clients directly.

Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.

Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.

Q: What’s your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.

Q: Which payment form you can accept?
A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
