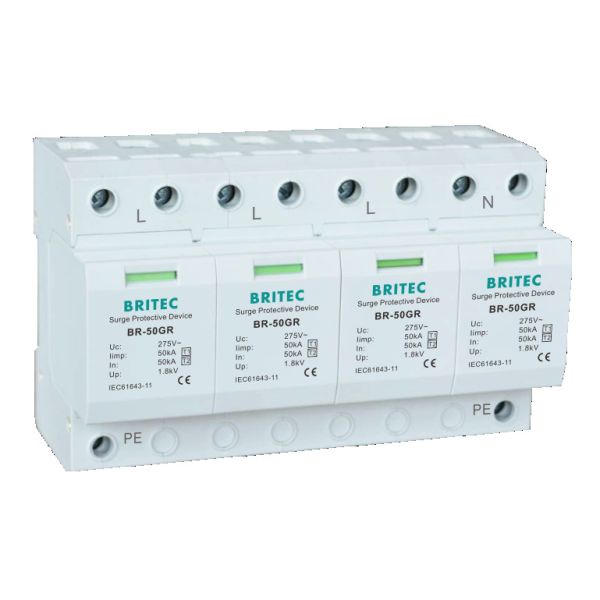

BRITEC BR-50GR 1P 50kA Surge Protection Device spd spark gap spd
BRITEC BR-50GR 1P 50kA Surge Protection Device spd spark gap spd
BRITEC BR-50GR 1P 50kA Surge Protection Device spd spark gap spd
BRITEC BR-50GR 1P 50kA Surge Protection Device spd spark gap spd
BRITEC BR-50GR 1P 50kA Surge Protection Device spd spark gap spd
BRITEC BR-50GR 1P 50kA Surge Protection Device spd spark gap spd
BRITEC BR-50GR 1P 50kA Surge Protection Device spd spark gap spd
BRITEC BR-50GR 1P 50kA Surge Protection Device spd spark gap spd
Specifications
Brand Name :
BRITEC
Model Number :
BR-50GR 1P
Certification :
TUV/CB/CE/ROHS/ISO9001
Place of Origin :
China Zhejiang
MOQ :
1 Piece/Pieces
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
50000 Piece/Pieces Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
EXPORT PACKING
Item Name :
Surge protection device
Type :
Ac Surge Protector
Material :
Thermoplastic UL94-V0
Place of origin :
Zhejiang, China (Mainland)
Pole number :
1P 2P 3P 4P 1+1 3+1 optional
Brand name :
BRITEC
Certificate :
TUV/CE/ROHS/ISO9001
Tu :
-40℃-80℃
Application :
surge protective device is suitable for single-phase TN system
Imax :
160kA
Uc :
275V
Description

50 kA Surge Protection Devices single surge protector type 1 SPD

spark gap spd Surge Protection Devices Features:
  • • 1 pole 50kA Type 1 lightning arrester.
    • limp: 50KA on 10/350 µs current impulse.
    • Imax: 160kA/Phase (8/20μs waveform).
    • With indication window and remote control contacts.
    • 35mm DIN-rail.
    • BR-50GR series are Type 1 surge protective devices designed to discharge high current surges
  • without any damage to the back-up electrical equipment.
    • It is suitable for TN-C system.

Surge Protection Devices Technology characteristic:

BRITEC BR-50GR 1P 50kA Surge Protection Device spd spark gap spd

Specification BR-50GR 1P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 1 + Type 2
SPD dassification according to IEC61643-11 Class I + Class II
Max continuous 0perating a.c. voltage Uc 275V
Lightning impulse current (10/350µs) limp 50kA
Norminal discharge current (8/20µs) In 50kA
Maximun discharge current (8/20µs) Imax 160kA
Voltage protection level Up ≤1.8kV
Follow current extinguishing capability a.c. lifi 3kA rms
Max. backup fuse 500A gG
Response time tA ≤100ns
For mounting on 35mm Din rail
Degree of protection IP20
Payment term 30% deposit in advance,70% before shipment,100% T/T in advance
Certificate CB/CE/ROHS/ISO9001
Logo Customized logo available
Design ability We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)

Surge Protection Devices Dimension:

BRITEC BR-50GR 1P 50kA Surge Protection Device spd spark gap spd

Application:

• Used in the lightning protection zones concept at boundary LPZ0B-LPZ1.
• For protecting low-voltage consumer's installations against indirect lightning discharges.
• Protect electrical and electronic equipment against transients, originating from lightning, switching of
transformers, lighting, and motors.
Advantage:
• Unique designing, patent technology.
• High discharge capacity.
• Low residual voltage.
• DIN rail mountable and ease of installation.
• Quick thermal response self-protected design.
Our Services:
• 20 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.
Installation:
• Installed at the entrance point of the building, in the main distribution board of this installation.
• It should be used as part of lightning protection systems i.e. when lightning rods or meshed cages are
installed.
• Must install SPD strictly according to the wiring diagram provided.
• Better to under the guidance of professional electrician.
• Green tab, normal work status, Red tab, failure status, need to be replaced Rapidly.
Shipping:
BRITEC BR-50GR 1P 50kA Surge Protection Device spd spark gap spd
Company information:
Britec Electric Wenzhou Co., Ltd. is located in the Yueqing city. Britec is dedicated to development,
manufacture, marketing and service of low voltage surge arrester products. The rapidly-developed
regional economy and friendly investment environment ensure Britec’s sustainable developments and
continuous innovations. It is professional in producing SPD.
BRITEC BR-50GR 1P 50kA Surge Protection Device spd spark gap spd
BRITEC BR-50GR 1P 50kA Surge Protection Device spd spark gap spd
BRITEC BR-50GR 1P 50kA Surge Protection Device spd spark gap spd
FAQ:

Q1. Are you manufacturer or trading office?

A: We are manufacturer in Wenzhou, with the ability to export by ourselves.

Q2: Do you support OEM or ODM?

A: Yes, we support OEM & ODM.

Q3: How's your product markets?

A: Our products are welcomed among Europe, South America, Asia and certain countries in Africa, win

us a good reputation.

Q4. How’s your warranty?

A: All our products are 5 years warranted.
