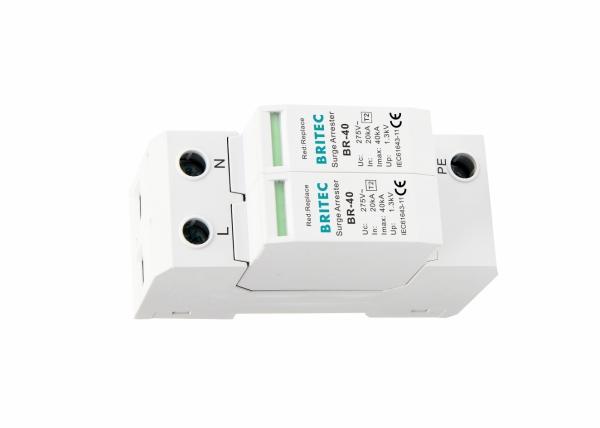

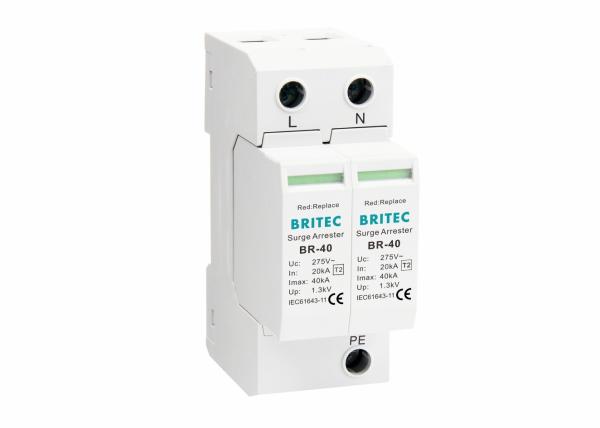

35mm Din Rail TVSS 40ka 2P Type 2 Surge Protector For AC System
35mm Din Rail TVSS 40ka 2P Type 2 Surge Protector For AC System
35mm Din Rail TVSS 40ka 2P Type 2 Surge Protector For AC System
35mm Din Rail TVSS 40ka 2P Type 2 Surge Protector For AC System
Specifications
Brand Name :
BRITEC
Model Number :
TY-40 320 2P
Certification :
TUV
Place of Origin :
China
MOQ :
100 Piece/Pieces
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
50000 Piece/Pieces Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
EXPORT PACKING
Item Name :
lightning arrester
Kinds :
Type 2
Poles :
2P
Uc :
320V
In :
20kA
Imax :
40kA
Protection level :
1.5kV
Tu :
-40℃-80℃
Warranty :
2 years
Material :
Thermal plastic UL94-V0
Description

40ka 2P Surge Protector Type 2 Lightning Protection Device for AC System 35mm Din rail TVSS

40ka 2P Surge Protector Type 2 Lightning Protection Device Product Description:
• TY-40 2P Din Rail 40kA Power Surge Protector for AC Power is designed according to IEC61643 standard.
• Protector applies to power utilization for household and the similar places, facilities for inputting circuit in the thunder direct stroke, or protecting from the damage of the surging current caused by outdoor arrester.
• It is accordance with the criterion of low-voltage Surge Protective Devices-Part 1: Surge Protective Devices Performance Requirements and Test Method of Low-voltage Power Distribution System.
• High energy surge protection, ns response speed
• With good sealing, it is designed as module and 35mm DIN-Rail Mounting.
• High flame retardant, anti-corrosion
• With working indication window, temperature control circuit breaker and built-in over-current protective circuit, the modular SPD can release automatically to avoid fire danger when it breaks down.
• The use of high-performance varistors permits a low protection level, without any line follow current.
• With remote alarm connector, it is convenient for remote monitoring.
• High arresting capacity
• The main module and the base are replaceable.

40ka 2P Surge Protector Type 2 Lightning Protection Device Technology characteristic:

Specification TY320-40 2P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 2
SPD dassification according to EN61643-11 Class II
Max continuous 0perating a.c. voltage Uc 320V
Max. discharge current (8/20µs) Imax 40kA
Norminal discharge current (8/20µs) In 20kA
Voltage protection level Up ≤1.5kV
Max. backup fuse 125A gG
Response time tA ≤25ns
For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range Tu -40℃—80℃
Operating state/fault indication green/red
Enclosure material Thermal plastic

Dimension:

35mm Din Rail TVSS 40ka 2P Type 2 Surge Protector For AC System

40ka 2P Surge Protector Type 2 Lightning Protection Device Applicable Scope:
• It can be installed in the low voltage power distribution cabinet/box of buildings, to protect all kinds of power equipment in the single phase power distribution system between LPZ1 and LPZ2.
• TY-40 2P surge protector is mainly applied to limiting amplitude value of transient over voltage, absorbing, consuming, discharging surging current energy in the electric wiring of AC 50/60Hz.
• For example, low voltage general electricity Cabinet and/or distribution board of buildings, outdoor electricity cabinet/distribution box, and power supply system: TN.

Company profile:

Britec Electric was founded in the year 2003. We are instrumental in manufacturing, trading, exporting, and supplying SPD products to our client’s at most reasonable rates. Our range of products is highly demanded & appreciated in the market because of their sturdy construction premium quality, excellent performance, and long functional life. Before dispatch, our products are checked on varied quality factors to attain utmost client’s satisfaction and to assure the supreme quality.

35mm Din Rail TVSS 40ka 2P Type 2 Surge Protector For AC System

Shipping:

35mm Din Rail TVSS 40ka 2P Type 2 Surge Protector For AC System

Certifications:

35mm Din Rail TVSS 40ka 2P Type 2 Surge Protector For AC System

FAQ:

Q: Are You A Factory Or Trading Company?
A: We are a manufacturer with export license.

Q. How Could I Get A Sample?
A: Generally, we offer samples in 10 days while customer pay the sample fee and shipping cost.

Q. Could You Print Custom LOGO For Items?
A: Yes, we accept customized logo.

Q. Do You Accept OEM Or ODM In Your Factory?
A: Absolutely Yes. Welcome to inquiry OEM & ODM service at any time.

Q: What's Your MOQ?
A: We accept both large and small orders. And for some of the items we have stocks.

Q. What Payment Terms Do You Accept?
A: We usually accept T/T payment terms, but other payment terms also can be accepted after we both confirmed.

Q: What's The Time Of Warranty.
A: We offer 2 years warranty.

Q. How Does Your Factory Do Regarding Quality Control?
A: Quality is priority. Britec always pay great attention to quality control. All raw material we used are environmental-friendly.
