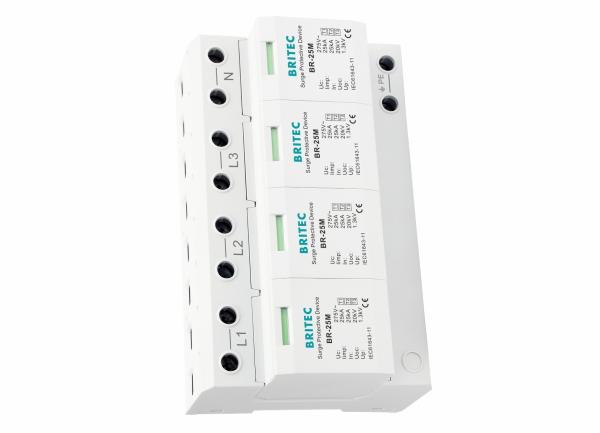

Thunder Arrester 4 Pole Type 1 Surge Protector Thermal Plastic Structure
Thunder Arrester 4 Pole Type 1 Surge Protector Thermal Plastic Structure
Thunder Arrester 4 Pole Type 1 Surge Protector Thermal Plastic Structure
Thunder Arrester 4 Pole Type 1 Surge Protector Thermal Plastic Structure
Specifications
Brand Name :
BRITEC
Model Number :
BR-25M 4P
Place of Origin :
China
MOQ :
100 Piece/Pieces
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
50000 Piece/Pieces Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
EXPORT PACKING
Item Name :
Surge protection device
Class standard :
Type 1+2+3
Uc :
275V
Iimp :
25kA
Poles :
4P
Protection class :
IP20
Operating temperature :
-40℃—80℃
Material :
Thermal plastic UL94-V0
Transport package :
carton
Weight (g) :
1000
Description

Type 1+2+3 Surge Thunder Arrester 4 Pole Surge Protector Surge Protection Device​

Type 1+2+3 Surge Thunder Arrester 4 Pole Surge Protector Presentation:
• The BR-25M 4P is a Type 1+2+3 SPD designed to protect AC power line at the main switchboard.
• It is suitably used in the TN-S power supply system of AC 50/60Hz.
• High protection level, guaranteeing maximum protection efficiency, an absence of follow and leakage currents, a simplification of use and a maximum lifetime.
• It is designed according to IEC61643-1, GB18802.1
• BR-25M series available in multipolar versions to protect single or 3-phase AC networks, this makes them the best surge protection solution for Type 1 requirements.

Type 1+2+3 Surge Thunder Arrester 4 Pole Surge Protector Technology characteristic:

BR-25M 4P
SPD classification according to EN61643-11 with 5M Type 1 + Type 2 + Type 3
SPD classification according to IEC61643-11 with 5M Class I + Class II + Class III
Rated operating voltage Un 220V
Max. continuous operating a.c. voltage Uc 275V
Voltage protection level Up ≤1.3kV
Lightning impulse current (10/350us) Iimp 25kA
Nominal discharge current (8/20us) In 25kA
Maximum discharge current (8/20us) Imax 100kA
Response time tA ≤25ns
Combined impluse Uoc 20kV
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
Max. backup fuse 315A gG
Operating temperature range Tu -40℃—80℃
Relative humudity(25°C) ≤95%
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0

Dimension:

Thunder Arrester 4 Pole Type 1 Surge Protector Thermal Plastic Structure

Type 1+2+3 Surge Thunder Arrester 4 Pole Surge Protector Product Details Show:
• Maximum current of endure the lightning stroke 100KA.
• Time of response<25ns.
• The color of visible window shows operating status, green means normal, red means abnormal.

About us:


Wenzhou Britec Electric Co.,Ltd as a manufature established in year 2003, specilized in Surge arrester with more than 17 years. We are a high-tech enterprise of Zhejiang province, also passed ISO 9001.

Thunder Arrester 4 Pole Type 1 Surge Protector Thermal Plastic Structure
Our certification:
Thunder Arrester 4 Pole Type 1 Surge Protector Thermal Plastic Structure
FAQ:

Q1: Can the price be negotiated?
A: Yes, the price is negotiable. It can be changed according to your quantity.

Q2: Are your surge protector supported for customization?
A: Yes, of course.

Q3: How can you ensure your After-sales Service?
A: We do it in strict accordance with the contract, so that customers can buy our products with confidence.

Q4: Are you a trading company or a manufacturer?
A: We are manufacturer and exporter in the industry, so we can supply product for you with Factory Price.
