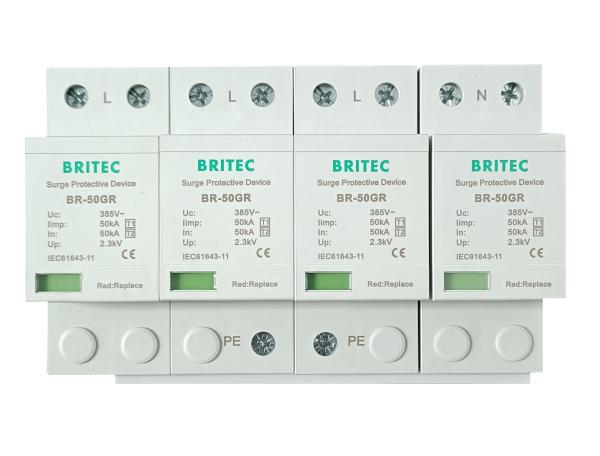

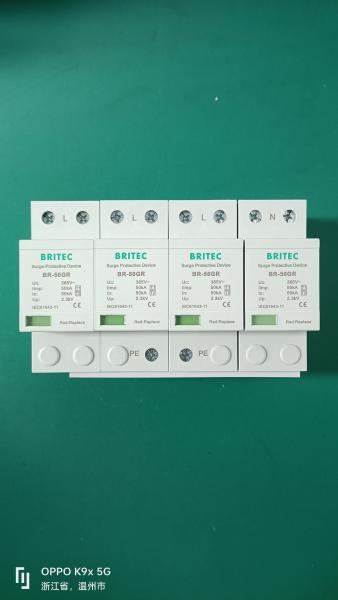

BR-50GR 4P Ac Lighting protection China type 1surge protection device Spd spd t1 t2 type 1 surge arrester
BR-50GR 4P Ac Lighting protection China type 1surge protection device Spd spd t1 t2 type 1 surge arrester
BR-50GR 4P Ac Lighting protection China type 1surge protection device Spd spd t1 t2 type 1 surge arrester
BR-50GR 4P Ac Lighting protection China type 1surge protection device Spd spd t1 t2 type 1 surge arrester
BR-50GR 4P Ac Lighting protection China type 1surge protection device Spd spd t1 t2 type 1 surge arrester
BR-50GR 4P Ac Lighting protection China type 1surge protection device Spd spd t1 t2 type 1 surge arrester
Specifications
Brand Name :
BRITEC
Model Number :
BR-50GR 385 4P
Certification :
TUV
Place of Origin :
China
MOQ :
1 Piece/Pieces
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
50000 Piece/Pieces Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
EXPORT PACKING
Item Name :
3 phase surge protection device
Response time :
≤25 ns
Enclosure material :
Thermoplastic, UL94 V‐0
SPD according :
Type 1+Type 2
Certificate :
TUV,CE,CB,IEC etc
Type of current :
AC
MOQ :
1PCS
Description

50kA three phase Type 1 Surge Protection Device TUV certificated

Ac Lighting Type 1 Surge Protection Device :

Surge protection device(SPD) is an indispensable device for lightning protection of electronic equipment. It is used to limit the instantaneous overvoltage of the power line and signal transmission line to the voltage range that the equipment or system can withstand, or a powerful lightning current drains into the ground to protect the protected equipment or system from impact and damage.

Ac Lighting Type 1 Surge Protection Device Technology characteristic:

BR-50GR 4P Ac Lighting protection China type 1surge protection device Spd spd t1 t2 type 1 surge arrester

BR-50GR 4P Ac Lighting protection China type 1surge protection device Spd spd t1 t2 type 1 surge arrester

BR-50GR 4P Ac Lighting protection China type 1surge protection device Spd spd t1 t2 type 1 surge arrester

Specification BR-50GR 4P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 1
SPD dassification according to IEC61643-11 Class I
Max continuous 0perating a.c. voltage Uc 385V
Lightning impulse current (10/350µs) limp 50kA
Norminal discharge current (8/20µs) In 50kA
Voltage protection level Up 2.3kV
Follow current extinguishing capability a.c. lifi 3kA rms

Max. backup fuse

500A gG

Response time tA

≤100ns

For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range Tu -40℃—80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²

Enclosure material

Thermoplastic UL94-V0

We can produce according to your requirements.

For the lowest price please contact us.

Our products have CE, TUV, CB,RoHS certification and ISO9001 quality mangement system.

Other type for choose:

1,Maximum discharge current:20kA,40kA,80kA,100kA,120kA,200kA

2,Number of poles:1P,1P+N ,2P,3P,3P+N, 4P

3,Maximum continuous operating voltage Uc: 150V,275V,320V,385V ,440V,550V,800V,1000V

Our Main Product

Type 1 surge protection device.

Type 2 surge protection device.

Type 1 + Type 2 surge protection device.

Type 3 surge protection device.

Type 2 + Type 3 surge protection device.

DC (pv, solar) surge protection device.

BRITEC is a real AC&DC surge protection device (SPD) manufacturer, also provide OEM/ODM service. some of the products approved by TUV, CB, CE, EAC according to IEC 61643-11 and EN 61643-11.

T1, Class B, Class I, Iimp(10/350μs): 25kA/50kA

T1+T2, Class B+C, Class I+II, Iimp(10/350μs): 12.5kA/25kA

T2, Class C, Class II, Imax(8/20μs): 20/40/80/100/120/200kA

T3, Class D, Class III, Uoc(1.2/50μs): 10kV, In(8/20μs): 5kA, Imax(8/20μs): 10kA

Our Services:
• 21 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.
Ac Lighting Type 1 Surge Protection Device Installation and note:
• Usually installed in the low-voltage main distribution cabinet of the building incoming line.
• In the normal use of this surge protector, especially during the thunderstorm season, the grounding system of the surge protector should be checked in time to keep it in good grounding condition, otherwise the protection effect of the surge protector will be affected to varying degrees.
Company information:
Wenzhou Britec Electric Co., Ltd. is located in the Yueqing city. Britec is dedicated to development, manufacture, marketing and service of low voltage surge arrester products. The rapidly-developed regional economy and friendly investment environment ensure Britec’s sustainable developments and continuous innovations. It is professional in producing SPD.
BR-50GR 4P Ac Lighting protection China type 1surge protection device Spd spd t1 t2 type 1 surge arrester
BR-50GR 4P Ac Lighting protection China type 1surge protection device Spd spd t1 t2 type 1 surge arrester
Our factory:
BR-50GR 4P Ac Lighting protection China type 1surge protection device Spd spd t1 t2 type 1 surge arrester
Prodution process:
BR-50GR 4P Ac Lighting protection China type 1surge protection device Spd spd t1 t2 type 1 surge arrester
BR-50GR 4P Ac Lighting protection China type 1surge protection device Spd spd t1 t2 type 1 surge arrester
BR-50GR 4P Ac Lighting protection China type 1surge protection device Spd spd t1 t2 type 1 surge arrester
Certificate:
BR-50GR 4P Ac Lighting protection China type 1surge protection device Spd spd t1 t2 type 1 surge arrester
Transportation:
BR-50GR 4P Ac Lighting protection China type 1surge protection device Spd spd t1 t2 type 1 surge arrester
FAQ:

Q1. Does your products listed for safety?

A: Yes, we have TUV, CE, CB these certifications.

Q2. What is the lead time for sample and mass order?

A: Samples is 10 days, and 20 days for mass order.

Q3. Do you accept the OEM / ODM order?

A: Yes.

Q4. Do you have MOQ for order?

A: General our MOQ is 5 piece, but we can accept 1 piece as sample order.

Q5. Can we visit your factory before we cooperate with you?

A: Of course. Welcome to your visiting to our factory.
