Specifications
Brand Name :
BRITEC
Model Number :
BRPV3-1000-20
Place of Origin :
China
Certification :
TUV/CB/CE/ROHS/ISO9001
MOQ :
2PCS
Packaging Details :
carton
Delivery Time :
15 days after receipt of deposit
Payment Terms :
TT
Supply Ability :
1000000 per month
Degree of protection :
IP20
Cross-section area (Max.) :
35mm²
Maximum Discharge Current :
40kA(8/20μs)
Operating Temperature Range :
-40℃~+85℃
Format :
Plug-in Modular
Product Name :
DC Surge Protection Device
Voltage Protection Level :
3.8kV
Response Time :
≤25ns
Description

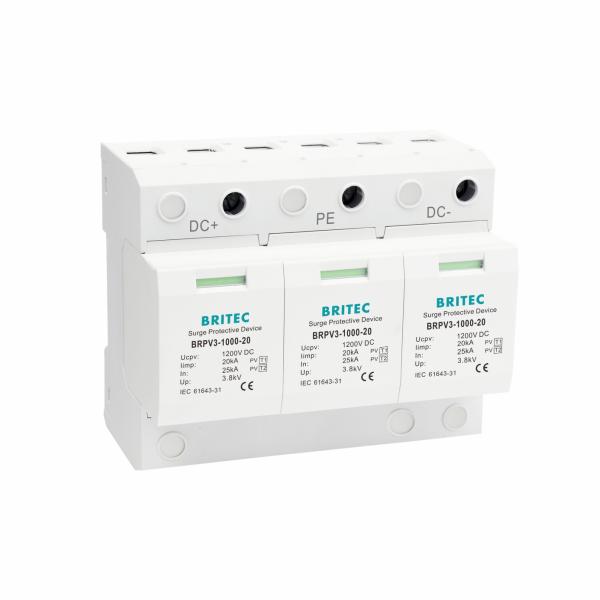

BRPV3-1000-20 DC SPD inverter surge protection pv surge protection device

BRPV3-1000-20 DC SPD inverter surge protection pv surge protection device

Product Description:

The DC Surge Protection Device, also known as a DC SPD or 1000V surge arrester, is an essential device designed to protect your electrical systems from voltage surges. With a Voltage Protection Level of 3.8kV, this SPD provides reliable protection against lightning strikes and other power surges.

When it comes to monitoring the operating state of the surge protection device, you can easily do so with the color indication feature. The device displays a Green light when it is in normal operating condition and a Red light when there is a fault detected, providing you with visual alerts for quick troubleshooting.

With a minimum cross-section area of 4mm² and a maximum cross-section area of 35mm², this SPD is suitable for a wide range of electrical wiring applications. Whether you are protecting your solar panels, DC power supplies, or other DC electrical systems, this surge protection device offers versatile protection.

Ensure the safety and reliability of your electrical systems with the DC Surge Protection Device. Don't wait for a costly surge event to damage your equipment – invest in quality SPDs like this one to safeguard your valuable assets.

Features:

  • Product Name: DC Surge Protection Device
  • Operating state: Green / Red
  • Format: Plug-in Modular
  • Operating Temperature Range: -40℃~+85℃
  • Maximum Discharge Current: 40kA(8/20μs)
  • Storage Temperature Range: -40℃~+85℃

Technical Parameters:

Humidity Range ≤95%RH
Operating state Green / Red
Voltage Protection Level 3.8kV
Storage Temperature Range -40℃~+85℃
Response Time ≤25ns
Maximum Discharge Current 40kA(8/20μs)
Format Plug-in Modular
Operating Temperature Range -40℃~+85℃
Cross-section area (Min.) 4mm²
Enclosure material Thermoplastic UL94-V0

Applications:

BRITEC DC Surge Protection Device (SPD) model BRPV3-1000-20 is a reliable and high-quality product designed to protect sensitive electrical equipment from power surges. With its certifications from TUV, CB, CE, ROHS, and ISO9001, this SPD ensures safety and performance in various applications.

Originating from China, the BRPV3-1000-20 is suitable for a wide range of product application occasions and scenarios. Its plug-in modular format allows for easy installation and maintenance, making it ideal for use in industrial facilities, commercial buildings, data centers, and residential properties.

The minimum order quantity for this SPD is 2pcs, and it comes packaged in a carton for convenient transportation and storage. With a delivery time of 15 days after receipt of deposit and payment terms of TT, customers can rely on prompt and efficient service when ordering this product.

Thanks to its supply ability of 1000000 per month, the BRITEC DC Surge Protection Device is readily available to meet the demands of various projects and installations. The device can operate effectively in a humidity range of ≤95%RH and a storage temperature range of -40℃ to +85℃, ensuring durability and reliability in diverse environmental conditions.

Equipped with a cross-section area (Min.) of 4mm², this SPD offers robust protection against voltage spikes and transient currents, safeguarding valuable equipment and preventing costly damage. Whether it is used in solar power systems, telecommunications networks, or industrial automation, the BRPV3-1000-20 is a versatile solution for surge protection needs.

Customization:

Customize your DC Surge Protection Device with BRITEC's Product Customization Services. Enhance your dc spd experience with the Model Number BRPV3-1000-20, proudly manufactured in China. Rest assured with certifications from TUV/CB/CE/ROHS/ISO9001, ensuring the highest quality standards.

With a minimum order quantity of 2PCS, your product will arrive in carton packaging within 15 days after receipt of deposit. Payment terms are flexible with TT, and our supply ability of 1000000 per month guarantees timely delivery.

Technical specifications include a cross-section area (Min.) of 4mm², operating temperature range of -40℃~+85℃, and storage temperature range of -40℃~+85℃. The degree of protection is rated at IP20, with an enclosure material composed of Thermoplastic UL94-V0.

Support and Services:

The DC Surge Protection Device product offers comprehensive technical support and services to ensure optimal performance and protection. Our team of experts is available to assist with product installation, troubleshooting, and maintenance to address any issues that may arise. In addition, we provide training and resources to help customers maximize the benefits of the surge protection device. Rest assured that our dedicated support team is committed to delivering top-notch service and ensuring customer satisfaction.
