Cold Light Led Surgical Lights Over 130000lux Illuminance With 65pcs Led Bulbs
Cold Light Led Surgical Lights Over 130000lux Illuminance With 65pcs Led Bulbs
Cold Light Led Surgical Lights Over 130000lux Illuminance With 65pcs Led Bulbs
Cold Light Led Surgical Lights Over 130000lux Illuminance With 65pcs Led Bulbs
Specifications
Brand Name :
HFMED
Model Number :
YD02-LED5
Certification :
ISO,CE,SGS,FDA
Place of Origin :
Shanghai,China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, D/P, D/A, MoneyGram
Supply Ability :
300 sets/month
Delivery Time :
5~7 days after the receipt of payment
Packaging Details :
In two wooden case
Illuminance :
≥130,000Lux
Color temperature :
4800±200K
CRI :
96Ra
Size of light field :
120~240mm
Total irradiance :
480W/m²
Total bulb quantity :
65pcs
Description

over 130000lux illuminance cold ligh led shadowless surgical light with 65pcs led bulbs

YD02-LED5 Shadowless Operating Lamp is applicable to lighting for Operatings in the Operating rooms of medical facilities.

There shall be no electromagnetic or other interferences with the equipment and other devices.

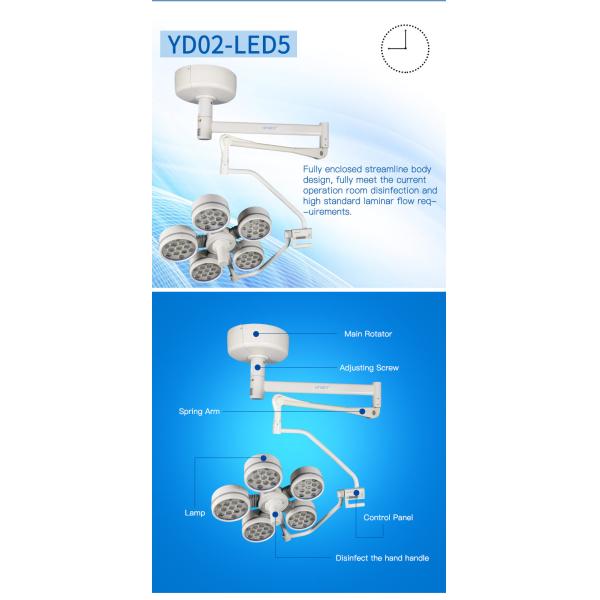

The lamp is featured with the fully closed streamline single/double lamp block structure, meeting the requirements of disinfection and high level laminar flow in the Operating room; the CAD/CAM based integrated reflective optic system, providing deeper illumination; and the color temperature compensation technology, enhancing the color rendering properties, to make it more suitable for cerebrosurgery and other large complicated Operatings.

Normal Operating conditions:

Voltage: ~220V±10% Frequency: 50Hz±1Hz

Operating temperature: 10℃～30℃ Relative humidity: not more than 80%

Standard installation height: 3m Voltage of lamp holder: 24V

Safety level: Level I Lightning protection: Type B

Operating mode: continuous Operating

Installation: permanent installation, not used in the environment with inflammable anaesthetic gases

Disinfection: see relevant sections of the Instructions

Electrical characteristics
Item YD02-LED5
Input power 125VA
Bulb power 3.2V/1W
Main fuse F2AL-250V(quick fuse)
Supply voltage 220V±10％ AC(AC)
Supply frequency 50Hz±1Hz
Performance
Item YD02-LED5
Rated illumination 130,000lx
Color temperature 4800±300K
Temperature rise Not more than 1000W/M2
Lighting depth Not less than 500mm
Mechanical characteristics
Item YD02-LED5
Rotation of rotary body around central axis 360°
Rotation of balancer around rotary body 360°
Upward/downward turning 80°
Rotation of holder around balancer 360°
Rotation of holder block around connection tube 180°
Rotation of lamp around connection tube 180°

How about the package?

Packing Wooden case
Packing size Double Head:91*92*37cm
Other:108*43*60cm
Weight Double Head: GW:21KG NW:14KG
Other: GW:65KG NW:50KG
