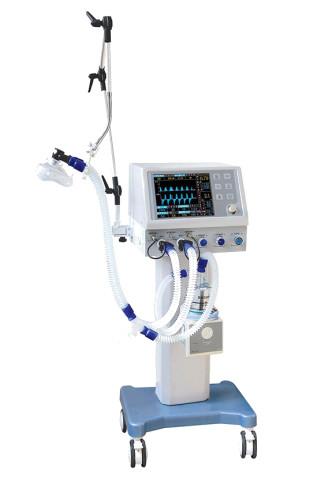

Hospital Machine Emergency Transport Ventilator Breathing Apparatus 50 - 1500ml Tidal Volume
Hospital Machine Emergency Transport Ventilator Breathing Apparatus 50 - 1500ml Tidal Volume
Specifications
Brand Name :
HFMED
Model Number :
HF-700B S
Certification :
CE,ISO
Place of Origin :
Shanghai,China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 sets/month
Delivery Time :
5~7 days after payment received
Packaging Details :
carton or wooden case
Breathing Mode :
A/C, IPPV, SIPPV, IMV, SIMV, PEEP, SIGH, SPONT. MANUAL
Tidal Volume :
50~1500ml
I/E Ratio :
4:1 ~ 1:4
Respiration Frequency :
1~99 bpm
IMV Frequency :
1~20 bpm
Lung compliance :
≤30 mL / kPa
Maximum Minute ventilation :
≥18L / min
Pressure Limited :
1.0kPa~ 6.0kPa
PEEP :
0 ~ 1.0 kPa
Ptr :
-1.0kPa~1.0kPa
Description

Ventilator breathing apparatus hospital machine Emergency Transport Ventilator

1/ Bulit-in 10.4'LCD display, P-T,F-T,P-V,F-V waveforms, with lock screen,Screen could be rotated freely.
2/ Ventilation modes:A/C,SIPPV,IPPV,SIMV,PSIMV,PSV,CPAP,PCV,VCV,SPONT,MANNUAL
3/ Tidal Volume:Adjustable:20~1500ml ,Display: 0~2000ml
4/ Oxygen Concentration: 21%~100%
5/Pressure trigger, flow trigger,Pressure trigger:1.0 ~ 10.0 L/min
6/ Inspiratory Plateau time:0-50% adjustable

Main technical specifications:
Breathing Mode: A/C, IPPV, SIPPV, IMV, SIMV, PEEP, SIGH, SPONT. MANUAL
Tidal Volume: 50~1500ml
I/E Ratio: 4:1 ~ 1:4
Respiration Frequency : 1~99 bpm;
IMV Frequency: 1~20 bpm
Lung compliance: ≤30 mL / kPa
Maximum Minute ventilation: ≥18L / min
Pressure Limited: 1.0kPa~ 6.0kPa
PEEP: 0 ~ 1.0 kPa
Ptr: -1.0kPa~1.0kPa
Max .Safe Pressure: ≤6.0 kPa
Trigger Method: Pressure Trigger
Control Method: Pressure Control
Ventilation monitoring:
Tidal volume,Minute ventilation,Frequency,Airway Pressure,I/E,inspiration time,PEEP,FiO2,
Waveform of time-airway Pressure and so on.

Product Size

Length(mm)

660
Width(mm)

520
Height(mm)

1110
CBM(mm3)

0.38
N/W(kg)

35
G/W(kg)

42
Remark
Main Unit CTN/Li-lon
CTNS

1

Product Detail

Hospital Machine Emergency Transport Ventilator Breathing Apparatus 50 - 1500ml Tidal Volume

FAQ

1.Can you provide us a competitive price and good quality products?
We have our strict evaluation criteria of quality on our partner factory. We did complete and detailed market research and priced competitively.

2.What is the charge standard about the Samples?
1) For our first cooperation, buyer afford the sample fee and shipping cost, and the cost will be refund when made formal order.
2) For our old customer, we will send free sample, even though new designs sample, when have stocks

3.What are the Payment Term?
We can accept L/C, T/T, Western Union, MoneyGram, Paypal

4.What are the Shipping methods?
If your order is not big enough, Door to Door Service is the best choice via UPS, FEDEX, DHL, EMS.
For big quantity, by air or by sea through your forwarder is one Normal Way, we also can provide cost-effective forwarder for your reference.
