Specifications
Brand Name :
HFMED
Model Number :
HFEOT99S
Certification :
CE, ISO,SGS
Place of Origin :
SHANGHAI,CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets/month
Delivery Time :
5 days after the receipt payment
Packaging Details :
Wooden case
Length :
2170mm
Width :
550mm
Elevation(up/Down) :
690/1100mm
Power Source :
Electricity and Hydraulic
Trendelenburg :
30
Reverse Trendelenburg :
30
Lateral Tilt(Left/Right) :
18/18
Head Rest(up/Down) :
60/90
Back Plate(up/Down) :
75/35
Description

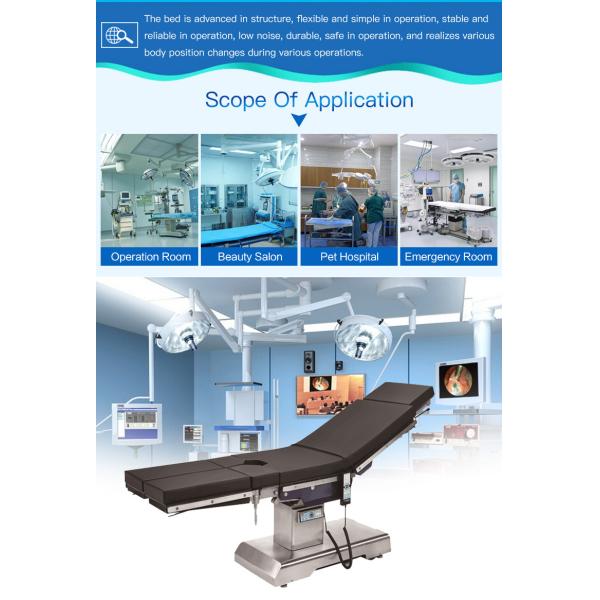

Electric Leg Plate Surgical Operation Bed Table for Radiolucent

Introduction:

1. Meet demand of general surgical operation;

2. Electro Motor operating table;

3. Adopts full 304 stainless steel;

4. Excellent properties on anti-rust;

5. Tabletop is X-raying available;

6. Tabletop can slide for over 300mm.

7. Double control: remote control and panel control on its basic column

8. Base with German "Tente" brand Big Castors

9.Gas Spring support to adjust leg plate

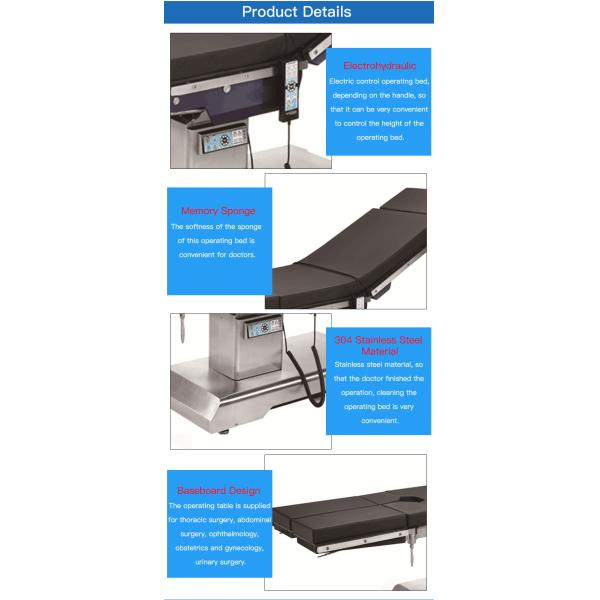

Main Features:

1. Optional mechanical brake and electric brake.

2. Overall table is made of high quality 304 stainless steel.

3. Buile-in kidney bridge meets C-arm need.

4. Rational base design provides an active space for medical staffs' feet.

5. Imported hydraulic control system achieves low noise, high security and reliability.

6. Leg panels can be replication, outreach and removable, convenient for surgery.

7. The table has five parts: head board, back board, kidney elevator, hip board and leg board.

8. High-tech PU matress makes the patients relaxed and comfortable.


Specification:

Type HFEOT99S Hydraulic Operating Bed
Elevation(up/down) 690mm/1100mm
Trendelenburg/Reverse trendelenburg [30°,30°]
Lateral tilt(left/right) 20°/20°
Head rest(up/down) 40°/90°
Leg plate(up/down&horizontal positioning) 15/90/90°
Back plate(up/down) 85°/40°
Kidney bridge 110mm
Longitudinal sliding 350mm
Warranty 2 years
Operation Table delivery time 5-7 days
Power 220V,50Hz,1.0KW
Accessories 1 Anaesthetic screen;2 Shoulder rest;2 Arm support;
2 Waist support;2 Knee crutch;2 Foot plate;2 Long slider
