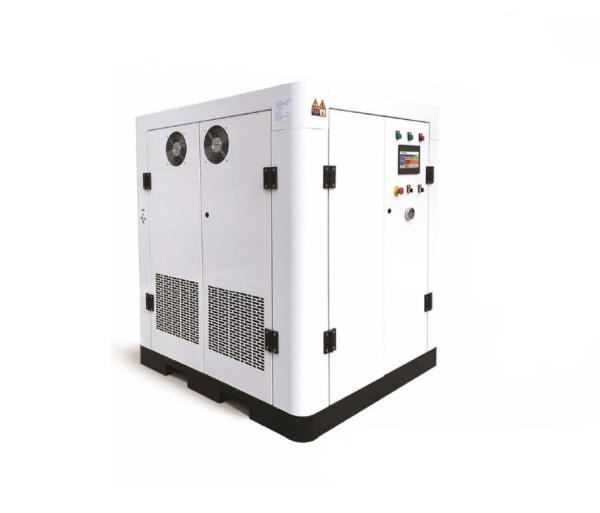

CE 6m3/H Hospital Medical Oxygen Generator Machine AC 380V
CE 6m3/H Hospital Medical Oxygen Generator Machine AC 380V
Specifications
Brand Name :
Zenva
Model Number :
3m3~6m3/h integrated oxygen generator
Certification :
CE
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
300 per month
Delivery Time :
5-8 working days after receiving the payment
Packaging Details :
Carton Box
Product Name :
integrated oxygen generator
Model No. :
3m3~6m3/h integrated oxygen generator
Advantage :
Portable, highly integrated
Applicable Industries :
Hospitals
Oxygen production :
3m3/h, 6m3/h
oxygen concentration :
≥93% ± 3%
Input voltage :
AC380v
Origin :
Shanghai, Pudong
Description

3m3~6m3/h Integrated Oxygen Generator Oxygen Generator for Hospitals and Medical Applications

Product overview
The 3m3~6m3/h modular integrated oxygen generator is a new type of oxygen generator composed of multiple oxygen generator modules stacked in parallel. Using the principle of PSA, multiple adsorption towers work alternately, using oil-free air compressors, refrigeration dryers, composed of four-stage filter, the whole equipment has better running stability and longer service life.

Four Conditions for Stable Operation of PSA Oxygen Production System

1. Clean
The cleaner the air entering the host, the better, and the cleaner the removal of moisture and oil, the better the protection of molecular sieves.
2. Low Pressure
Stable pressure can ensure the good adsorption performance of molecular sieve, and then ensure the stable oxygen concentration.
3. Steady Flow
The stable flow rate and scientific air intake method can effectively protect the molecular sieve from being pulverized, and can also ensure a stable oxygen concentration.
4. Normal Temperature
The air temperature entering the host is easy to control at about 20°C.

Technical parameters

3m3/h oxygen generator technical parameters 6m3/h oxygen generator technical parameters
oxygen production 3m3/h oxygen production 6m3/h
oxygen concentration ≥ 93% ± 3% oxygen concentration ≥ 93% ± 3%
output pressure 0.40MPa ~ 0.65MPa output pressure 0.40MPa ~ 0.65MPa
Input voltage AC380v Input voltage AC380v
equipment power ≤ 5.5kw Equipment power ≤13kW
Equipment size 1300*1200*1500mm Equipment size 1400*1850*1730mm

CE 6m3/H Hospital Medical Oxygen Generator Machine AC 380V

Product tags

psa medical oxygen generator

,

medical psa oxygen generator

,

hospital oxygen generator
