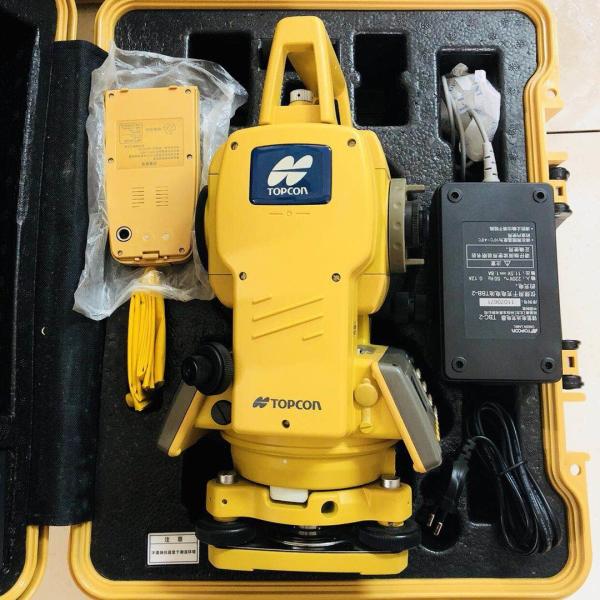

High Precision Used Surveying Equipment Topcon Total Station Gts-252
High Precision Used Surveying Equipment Topcon Total Station Gts-252
High Precision Used Surveying Equipment Topcon Total Station Gts-252
High Precision Used Surveying Equipment Topcon Total Station Gts-252
Specifications
Brand Name :
Topcon
Model Number :
GTS-252
Place of Origin :
Japan
MOQ :
1
Price :
discuss personally
Payment Terms :
T\T,Paypal
Supply Ability :
50 pcs per week
Delivery Time :
1-3 days after payment
Packaging Details :
in an individual box
original place :
Japan
feature :
used
brand name :
Topcon
model :
GTS-252
color :
yellow
length :
150 Millimeters
Description

almost brand new , high precision Used surveying equipment Topcon GTS-252 Total Station For Sale

The GTS-252 total station is a used one in very good working condition.

The GTS-252 combines Topcon’s tradition of rugged field-ready quality with accuracy and places it in an economical, compact design perfect for everyday measuring and positioning applications.

The GTS-252 meets or exceeds the precision and durability of most competitive high end models. These rugged total stations have an environmental rating of IP-54, and come standard with dual axis compensation and a dual keyboard and display.

Specifications

Telescope

Length 150 Millimeters
Objective Lens Diameter 45mm (EDM:50mm)
Magnification 30x
Image Erect
Field of View 1°30
Resolve Power 3″
Min. Focus Distance 1.3 meters


Measurement Range

1 Prism 6560 ft, 2000 meters
3 Prism 8856 ft, 2700 meters


Measuring Accuracy

Prism Mode ±(2mm + 2ppm x D)m.s.e. fine, N/A
Measurement Time 1mm: 1.2sec. (Initial 4sec.) fine, 0.2sec. (Initial 3sec.) coarse, N/A


Angle Measurement

Method Absolute Reading
Detection 2 horizontal, 1 vertical
Minimum reading 5″/1″, 1/5 mgon


Tilt Correction

Type Automatic Vertical and Horizontal compensator
Method Liquid surface reflective profile sensor reading type
Compensating Range ±3′
Correction Unit 1 arc sec, N/A

Computer Unit

Display 2 screen, dot matrix graphic LCD display


Power

Approximate battery life 9 hours including distance measurement , 40 Angle measurement only

Durability

Protection against water and dust IP54
Temperature -20 to 50 degrees C (-4 to 122 degree F)
Weight Instrument 4.9KG (10.8lb)

Our Services


We offer qualify superior pre-sale service to help you choose the right goods, highclass after service to ravel out your concerns and life long technical support.

Our warranty policy:
1. For instruments (total station,GNSS,auto level), we offer 6 months warranty,for accessories(Battery ,Cable,Charger,Prism,pole,tripod ,levelling staff).we offer 3 months warranty,from the day you get the product.
2. For product within the warranty period,please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair.Please make sure to contact us first instead of sending the damaged parts direct to us.
3. For problem out of the warranty period or warranty liability,we will judge the problem and quoted for you.You need to pay double-run freight and the maintenance cost.
4. For all instrument we provide life-long technical support.Remark:Improper use of the instrument and man-made damage of the instrument is not covered in warranty liability.Warranty only aimed at the problem caused by the product quality.

Shipping Information:

  • Please refer to the below table which shown the detail arrival time in percentage.
Country Shipment Time Day( Business Days/Working Day)
7 - 10 days 8 - 19 days 17 - 25 days 25 - 35 days 35 - 60 days
United States 4% 55% 21% 15% 5%
Canada 2% 55% 23% 16% 4%
Ausralia 18% 52% 20% 8% 2%
United Kingdom 8% 52% 30% 8% 2%
Germany 2% 12% 22% 42% 22%
Russia 3% 15% 20% 28% 34%
Other Asian Countries 4% 55% 21% 15% 5%
Other European Countries 1.5% 12% 22.5% 45% 19%
