Specifications
Brand Name :
Wanggan
Model Number :
S2
Certification :
ISO9001
Place of Origin :
China
MOQ :
2
Price :
$70-$80
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000 sets/month
Delivery Time :
10 working days
Packaging Details :
19*15*9cm 0.4kg
Machine name :
GNSS GPS Survey Equipment
Satellite signals: :
GPS GLONASS SBAS BeiDou
Use Range :
Agriculture, Pond, Outdoor explore etc
Use way :
handheld, machine load
Battery type :
Lithium Battery
Name :
GPS Land Area Measurement Device
Function :
gps land survey meter
Feature :
gps land area measurement
Weight :
0.4kg
Package size :
19*15*9cm
Description

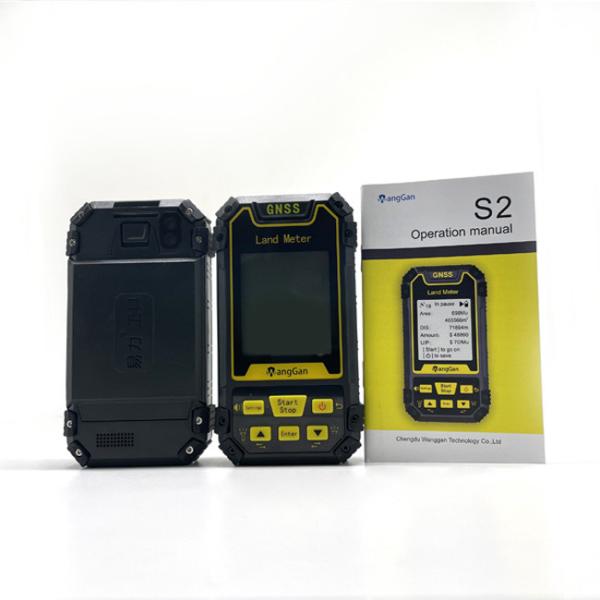

GNSS GPS Survey Equipment Land Surveying Instrument GPS Land Meter Measuring Land Area Distance Tools

Slope Measurement:

. At the Slope in parameter setting, press the [▲/▼] button to set the gradient.

. After setting is completed,press the d to return main interface.

.In the main interface,press the [▲/▼] button to switch function to "Slope measurement".

.Press the [ Start] button at the staring point and circle the slope.

. Back to the starting point, press the I Stop ] button to pause measurement and view data.If the measurement is not completed, press the [ Start]

button again to continue the measurement.

.If the measurement is completed, press "power" button to save the data

Technology Parameter Of Handheld GPS Survey Equipment:

Receiver chip High sensitivity GPS receiver chip
Receiver antenna

Taimeng passive large-size planar antenna
Efficient startup 1sec for warm boot, 30sec for cold boot.
Area accuracy Measurement error within 0.03Mu(1-3Mu),2%(above 3Mu)
Distance accuracy

Within 1m(HDOP less than 1.0,measuring 100m in length)
Function characteristics

Longitude and latitude display,altitude display,area measurement,distance measurement,land price calculation
Data statistics

Area statistics,distance statistics
Area record 99pieces
Distance record 99pieces
Track display

The track will be displayed in real time in the course of measurement,it can also be viewed in statistical records.
Barometric leveling

About 1meter(Barometric measurement,the absolute altitude value needs to be calibrated)

About 10meters(GPS measurement ,HDOP within 1.0)
HDOP setting Custom HDOP setting
Screen display

2.4 inch outdoor HD black-white screen
Prompt tone Voice broadcast
Working temperature -20°C~65°C
Storage temperature -40°C~75°C
Equipment size 117mm×61mm×22mm
Equipment weight

120g(No battery)
Data interface

USB interface,it can be charged through this interface
Standard configuration

Host 1,lithium battery 1,charger 1,data line 1,lanyard 1,instruction 1,warranty card 1,packaging box 1.
