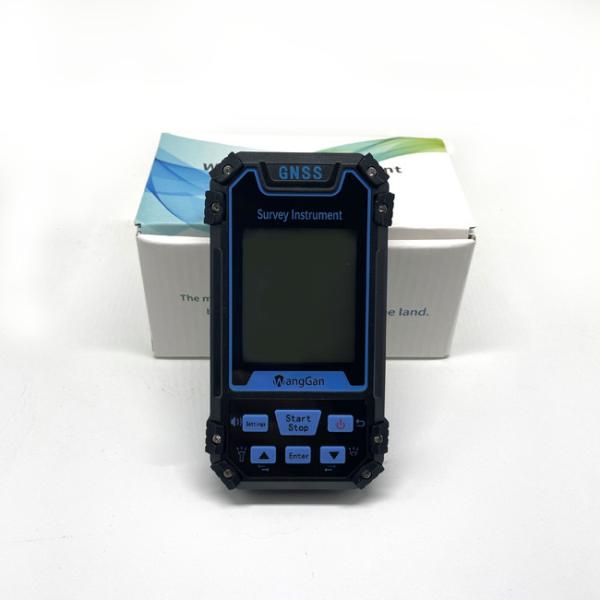

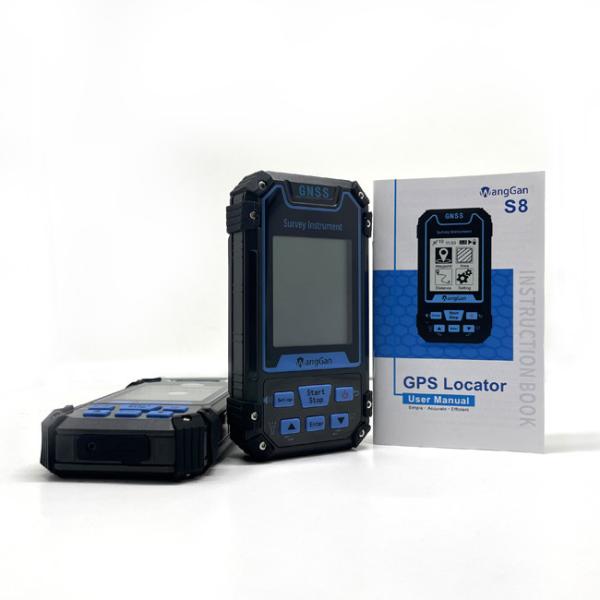

Multi-function Locator Altitude Measuring Tool Handheld Land Meter for Agriculture

The Entry Function of Waypoint (Recording a waypoint with known latitude and longitude) Of GNSS GPS Survey Equipment:

1. In the home screen of the device, press the [Setting] button to enter the setting interface.

2. Please press the [▲][▼] button to move to "Waypoint",and press [Enter] to enter.

3. Please select "Establish" and enter. After entering the interface , according to the specific latitude and longitude information of the known waypoint, press [Enter] to switch the item to be changed, and press the [▲] [▼] button to change the specific value.

4. After the change is completed, press the [Enter] button continuously. When the input box moves out of the last option, the entered information will be saved.

The Navigation And Viewing Function of Waypoint

1. In the home screen of the device, press the [Setting] button to enter the setting interface.

2. Please press the [▲][▼] button to move to "Waypoint ",and press the [Enter] button to enter. Next select "Check Waypoint " and enter.

3. After entering , please press the [▲][▼] button to choose the waypoint that you want to navigate, and then press the [Enter] button to view the specific information of the selected waypoint.

4. After confirming the navigation information, press the [Start/ Stop] button to start navigate,and you can delete the waypoint information by double-pressing the [Enter] button.

5. During navigation, the pointer points to the navigation point. When the navigation point is reached, the bottom of the screen will show the destination. And press the "Start" button to exit navigation.

setting interface

Waypoint viewing interface

Pointer: The direction of the pointer is the direction of the navigation target point.

Heading angle: The angle between the direction of travel and the north direction

V:Displacement speed of device.

D:Distance from target point
