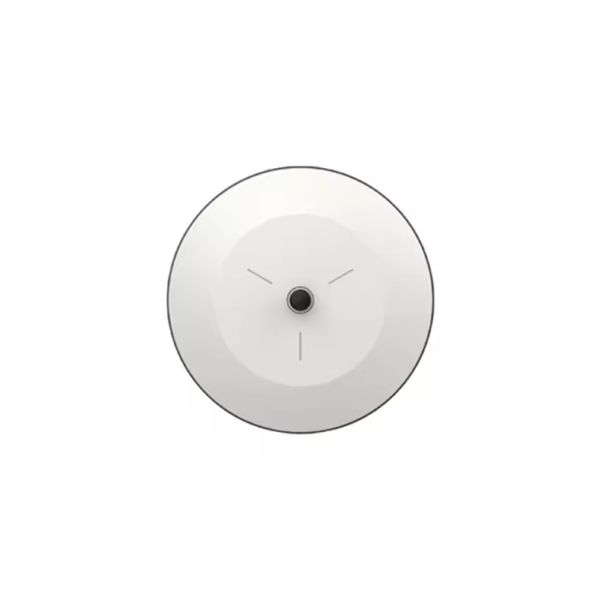

Super Base Gnss CHCNAV Rtk B5/Ibase/X1 With High Accuracy Dual Frequency
Super Base Gnss CHCNAV Rtk B5/Ibase/X1 With High Accuracy Dual Frequency
Super Base Gnss CHCNAV Rtk B5/Ibase/X1 With High Accuracy Dual Frequency
Super Base Gnss CHCNAV Rtk B5/Ibase/X1 With High Accuracy Dual Frequency
Super Base Gnss CHCNAV Rtk B5/Ibase/X1 With High Accuracy Dual Frequency
Super Base Gnss CHCNAV Rtk B5/Ibase/X1 With High Accuracy Dual Frequency
Super Base Gnss CHCNAV Rtk B5/Ibase/X1 With High Accuracy Dual Frequency
Super Base Gnss CHCNAV Rtk B5/Ibase/X1 With High Accuracy Dual Frequency
Super Base Gnss CHCNAV Rtk B5/Ibase/X1 With High Accuracy Dual Frequency
Super Base Gnss CHCNAV Rtk B5/Ibase/X1 With High Accuracy Dual Frequency
Specifications
Brand Name :
CHCNAV
Model Number :
B5
Place of Origin :
China
MOQ :
1 set
Price :
1set $2,800.00
Payment Terms :
T/T, L/C
Supply Ability :
1 ~ 30 day
Delivery Time :
30 work day
Product name :
RTK Receiver CHCNAV B5
Channel :
624
storage format :
Can directly record HCN, HRC, RINEX
storage :
Standard 8GB memory
Waterproof and dustproof :
IP68 level
Material :
Magnesium alloy AZ91D body
weight :
1.73kg
size :
160.54 mm*103 mm
Description

Super Base Gnss Chcnav Rtk B5/Ibase/X1 With High Accuracy Dual Frequency

overview

The B5 GNSS receiver is a fully integrated professional GNSS base station, specifically designed to meet 95% of surveyors' needs
when work in UHF GNSS base and rover mode. The performance of the B5 UHF base station compared to a standard external UHF radio
modem is almost perfect. But its unique design eliminates the need for a heavy external battery, cumbersome cables, external radio
and radio antenna. Its 5-watt radio module provides operational GNSS RTK coverage up to 25 km with optimai conditions and features
a real-time UHF interference self-checking technique, allowing the operator to select the most appropriate frequency channel to
use.
Product Paramenters
project
content
parameter
Receiver characteristics
satellite tracking
GPS+BDS+Glonass+galileo+QZSS, support Beidou third-generation satellites, support five-star sixteen-frequency
operating system
LINUX operating system
number of channels
1408 channels
Initialization time
<5s(typ.)
Initialize reliability
>99.99%
Receiver appearance
button
1 dynamic/static switch key,1 power key
indicator light
1 differential signal light, 1 satellite light, 1 static data acquisition light, 1 power light
Nominal accuracy
static precision
Plane acuracy:±(2.5+0.5×10-6×D)mm
Elevation accuracy: ±(5+0.5×10-6×D) mm
RTK accuracy
Plane Acuracy:±(8+1×10-6×D)mm
Elevation accuracy: ±(15+ 1×10-6×D) mm
Stand-alone accuracy
1.5m
Code differential accuracy
Plane Acuracy.±(0.25+1×10-6×xD)m
Elevation accuracy.±(0.5+1×10-6×D)m
GNSS+Inertial
Navigation
IMU
200Hz
slope
0~60°
Tit compensation
accuracy
10mm+0.7mm/°tilt (accuracy within 30°<2.5cm)
Electrification parameters
Battery
Built-in 6800mAh lithium battery,support 15 hours battery life of mobile station
External power supply
Support external power supply via USB port
physical properties
Size(L*W*H)
119mm*119mm*85mm
weight
0.73kg
Material
Magnesium alloy AZ91D body
Operating temperature
-45℃~+75℃
storage temperature
-55℃~+85℃
Waterproof and dustproof
IP68 class
shock shock
IK08 class
Anti-drop
Resist2 meters free fall
data output
output format
NMEA0183,binary code
output method
BT/Wi-Fi/Radio
static storage
storage format
Can directly record HCN,HRC,RINEX
storage
Standard 8GB built-in storage
Download method
Universal USB data download,HTTP download
data communication
I/O interface
1 extemal UHF antenna port
1 USB-TypeC interface,support charging,power supply,data download
network module
Handbook supports 4G full Netcom
Radio station
Built-in high frequency 450-470MHz single receiver radio
protocol
CTI protocol, transparent transmission, TT450
Blue tooth
BT4.0, backward compatible with BT2.x, compatible with Windows, Android, IOS systems
data transmission
Wi-Fi data link
Wi-Fi
802.11 b/g/n
NFC
Support NFC flash connection
Receiver function
Super double
Support radio + network two-way data differential at the same time, provide comprehensive data services
One-click match
Support handbook software to match base station data with one key
Remote upgrade
Support one-key remote upgrade
Handbook parameters
model
HCE600 Android Measurement Handbook
The internet
4G full Netcom, built-in eSIM for three years of surveying and mapping traffic
operating system
Android 10
CPU
Octa-core 2.0Ghz processor
LCD saeen
5.5"HD display
Battery
14 hours of battery life
Waterproof and dustproof
IP68

Super Base Gnss CHCNAV Rtk B5/Ibase/X1 With High Accuracy Dual Frequency

Super Base Gnss CHCNAV Rtk B5/Ibase/X1 With High Accuracy Dual Frequency

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
