Specifications
Brand Name :
Unistrong
Model Number :
G970ii
Place of Origin :
China
MOQ :
1 piece
Price :
$3,050.00
Payment Terms :
L/C, T/T
Supply Ability :
1 ~ 30 day
Delivery Time :
30 work day
Warranty :
3 years
Product name :
RTK Unistrong G970ii
Channel :
800 Channels
DGNSS :
＜0.5m
Power :
Internal battery
Internal UHF radio :
1W/2W（adjustable）
Removable battery :
24.5Wh(Two pieces)
Weight :
1.2kg
IMU :
60°
Protocol :
SOUTH, Hi-target, Trimtalk, Transeot
Description

Unistrong G970II GPS Gnss Rtk Receiver Surveying Instrument

Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument

Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument

Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument

Technical Specificat
Product model G970II
GNSS Channels 800 channels
Satellite Signals GPS: L1C/A,L1C,L1P,L2C,L2P,L5;
GLONASS:G1P1,G1OC,G2OC,G2P2,G3OC
BDS: B1I, B2I, B3I, B1C, B2a, B2b, ACEBOC;
Galileo: E1BC, E5a, E5b, ALTBOC, E6
QZSS: L1C/A, L1C, L2C, L5, LEX;
SBAS: L1, L5;
IRNSS: L5;
L-Band

Accuracy		 Static H: 2.5mm±1ppm,V: 5mm±1ppm
RTK H: 8mm±1ppm,V: 15mm±1ppm
DGNSS <0.5m
ATLAS H10 8cm
Initialization
Time		 8s
Initialization
Reliable		 99.9%


System		 OS Linux
Memory 8GB,support expandable MicroSD
Wi-Fi 802.11 b/g/n
Bluetooth V2.1+EDR/V4.1Dual, Class2
E-Bubble Support
IMU Tilt Survey Fusion positioning, 400Hz refresh rate, 2cm (@60°Tilt degree)
Audio support TTS audio broadcast
Datalink UHF radio T/Rx Internal Radio, 1W/2W adjustable, 410-470MHz
Radio protocol Support GeoTalk, SATEL, PCC-GMSK, TrimTalk, TrimMark, South, Hi-Target
Network 4G-LTE, TE-SCDMA, CDMA(EVDO 2000), WCDMA, GSM(GPRS)
Reference
outputs		 RTCM2.3, RTCM3.2, CMR,CMR+,ROX
Physical Interface 1*TNC Radio Antenna, 1*5Pin(Power & RS232),1*7Pin (USB 81 RS232)
Button 1 Power Button
Indication Light 4 Indication Lights
Size Φ156mm×H76mm
Weight 1.2kg
Power supply Battery capacity 7.2V, 24.5Wh(standard two batteries)
Life Timer Static Survey: 15 hours, Rover RTK survey: 12h
External power
source		 DC 9-18V, with overvoltage protection
Environment Work Temperature -35ºC~+65ºC
Storage
Temperature		 -55ºC~+85ºC
Waterproof
& dustproof		 IP68
Humidity 100% anti-condensation

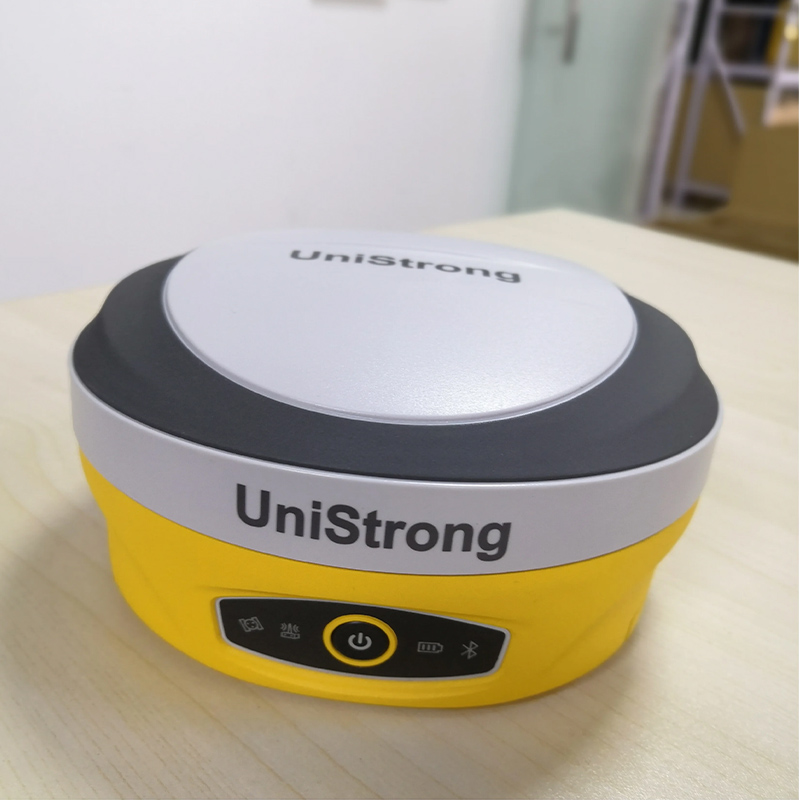

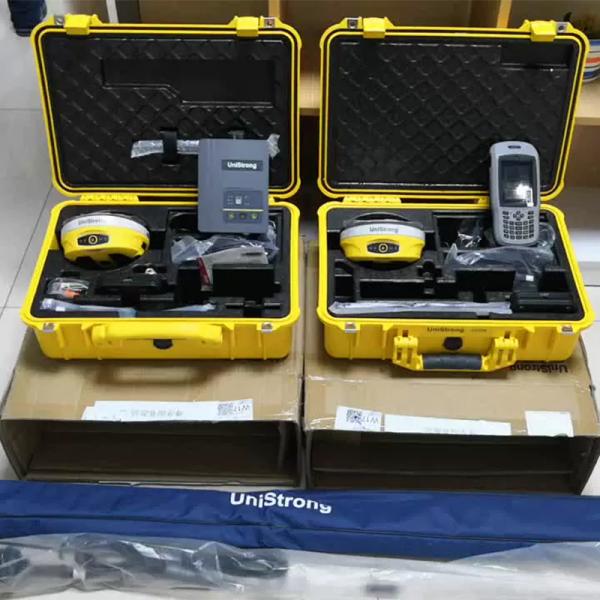

REAL PRODUCT PHOTO

Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument

Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument

Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying InstrumentUnistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument

Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying InstrumentUnistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying InstrumentUnistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying InstrumentUnistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument
