Specifications
Brand Name :
Kolida
Model Number :
442-R10U
Place of Origin :
China
MOQ :
1 set
Price :
＄1,250.00
Payment Terms :
T/T, L/C
Delivery Time :
30 work day
Product Name :
Robotic Total Station
Customized support :
OEM, ODM, OBM
Model :
442-R10U
Magnification :
30X
Reflectorless :
1000m
Single Prism :
5000m
Display :
LCD Display
Accuracy: Non Prism :
2+2ppm
Accuracy :
2"
Material :
Aluminum Alloy
Operating time :
10 hour
Package :
Carton Box
Application :
Surveying
Waterproof and dustproof :
IP65
Description

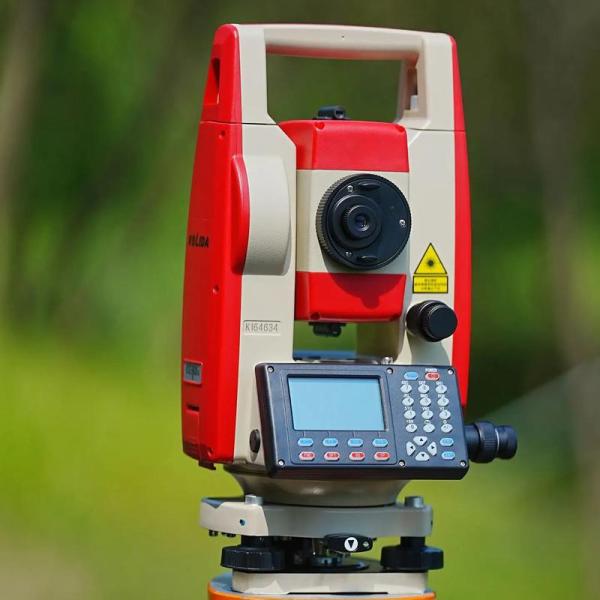

New products fast measure speed 1000m reflectorless kolida 442-R10U surveying total station

Specification

Built-in Bluetooth wireless transmission
Bluetooth wireless transmission, no need to use the transmission cable, only need to install the exclusive mobile phone app and lean against the instrument, you can get the measurement results on your mobile phone through the NFC function.

Laser Spotting
Laser pointing|Quick Measurement|Accurate Measurement

One Touch Measurement
The new Quick Measurement key, just press the black circular measurement key on the side of the Total Station.
Measurement can be started immediately.

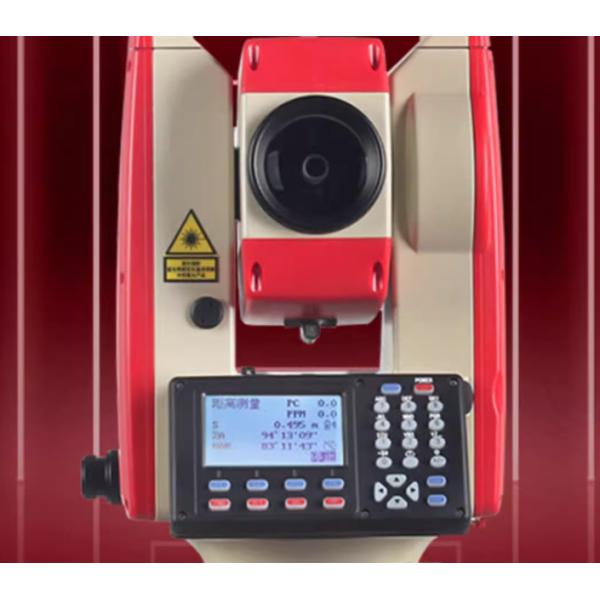

Convenient buttons on the large colour screen
Convenient keys and large colour display with clear and bright screen.

Waterproof and dustproof
No need to worry about the surrounding environment affecting the accuracy of the instrument.

Massive storage space upgrade
The storage space is upgraded, which can store about 100,000 coordinate points to meet the daily storage requirements.

High precision Kolida KTS 442R10U Reflectorless 1000m Kolida Total Station


Distance Measurement
Reflectorless
1000m
Single Prism
5000m
Accuracy: Non Prism
3+2ppm
Accuracy: Prism
2+2ppm
Sheet
2+2ppm
Measurement Time
0.3s In Fine
0.1s In Tracking
Atmospheric Correction
Manual Input, Auto Correction
Prism Constant
Manual Input, Auto Correction
Temperature Correction
Manual Input, Auto Correction
Distance Reading
Max: 99999999.9999m Min: 0.1mm


Angle Measurement
Accuracy
2"
Method
Absolute, Continuous
Disk Diameter
79mm
Detection Method
V: Dual, H: Dual
Angle Reading
Min: 0.1"


Telescope
Erect
Tube Length
154mm
Effective Aperture
48mm
Magnification
30x
Field Of View
1°30'
Resolving Power
3"
Minimum Focus Distance
1.2m
Reticle Illumination
4 Brightness Levels


Keyboard And Display
Keyboard
Alphanumeric 24 Keys
Display
Black & White
Resolution
160*96 dpi
Position
Face 1, Face 2


Operation System
Operation System
None
Processor
None
Memory
32000 Points


Interface
WIFI
None
Bluetooth
None
SD Card
Yes
Serial Port
Yes
Mini USB
Yes
Mirco USB
None
USB Flash Disk
None
SIM Card
None


Compensator
System
Liquid, Dual Axis
Working Range
±4'
Accuracy
1"


Plummet
Laser Plummet (Default)
Accuracy
±1.5mm @1.5m
Laser Brightness
Adjustable
Wavelength
630-670nm
Laser Class
Class 2 /IEC60825-1
Laser Power
<0.4mW
Optical Plummet (Optional)
Erect
Magnification
3x
Focusing Range
0.5m --
Field Of View
5"
Accuracy
±1.5mm @1.5m


Battery
Type
Lithium/3100mAH
Voltage
7.4V
Operating time
10 hours

Vial
Plate Vial
30" /2mm
Circular Vial
8' /2mm


General
IP Rate
IP65
Temperature Range
-20°C -- +50°C
Dimension
200*190*330mm
Weight
5.5kg

New Products Fast Measure Speed 1000m Reflectorless Kolida 442-R10u Surveying Total Station

New Products Fast Measure Speed 1000m Reflectorless Kolida 442-R10u Surveying Total StationNew Products Fast Measure Speed 1000m Reflectorless Kolida 442-R10u Surveying Total Station

New Products Fast Measure Speed 1000m Reflectorless Kolida 442-R10u Surveying Total Station

Certifications
Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),

North America(4.00%),Eastern Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
