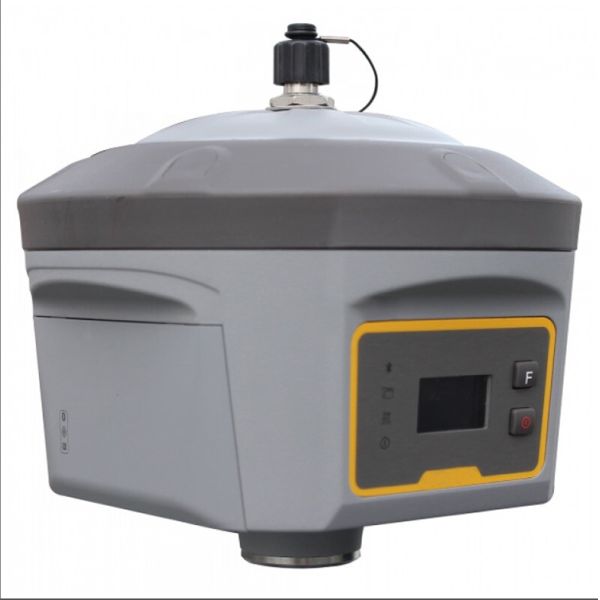

New Version Gps Rtk SOUTH G6 Receiver Surveying Instrument Rtk Gnss Survey Gps Base And Rover
New Version Gps Rtk SOUTH G6 Receiver Surveying Instrument Rtk Gnss Survey Gps Base And Rover
New Version Gps Rtk SOUTH G6 Receiver Surveying Instrument Rtk Gnss Survey Gps Base And Rover
New Version Gps Rtk SOUTH G6 Receiver Surveying Instrument Rtk Gnss Survey Gps Base And Rover
New Version Gps Rtk SOUTH G6 Receiver Surveying Instrument Rtk Gnss Survey Gps Base And Rover
New Version Gps Rtk SOUTH G6 Receiver Surveying Instrument Rtk Gnss Survey Gps Base And Rover
New Version Gps Rtk SOUTH G6 Receiver Surveying Instrument Rtk Gnss Survey Gps Base And Rover
New Version Gps Rtk SOUTH G6 Receiver Surveying Instrument Rtk Gnss Survey Gps Base And Rover
New Version Gps Rtk SOUTH G6 Receiver Surveying Instrument Rtk Gnss Survey Gps Base And Rover
New Version Gps Rtk SOUTH G6 Receiver Surveying Instrument Rtk Gnss Survey Gps Base And Rover
Specifications
Brand Name :
SOUTH
Model Number :
G6
Place of Origin :
China
MOQ :
1 piece
Price :
$4,900.00
Payment Terms :
L/C, T/T
Supply Ability :
1 ~ 30 day
Delivery Time :
30 work day
Product name :
RTK receiver SOUTH G6
Customized support :
OBM, ODM, OEM
Internal battery life :
Static 12hours
Channels :
336, 965 (optional) channels
Supports :
WIFI
Working range :
5km typical, 8~10km optimal
Weight :
950g
Application :
full-wave
Description

New Version Gps Rtk SOUTH G6 Receiver Surveying Instrument Rtk Gnss Survey Gps Base And Rover

Overview
Products Description

New Version Gps Rtk SOUTH G6 Receiver Surveying Instrument Rtk Gnss Survey Gps Base And Rover

Specification
GNSS performance Channels 336, 965 (optional)
GPS L1C/A, L1C, L2C, L2E, L5
GLONASS L1C/A, L1P, L2C/A, L2P, L3
BDS B1, B2, B3
GALILEO E1, E5A, E5B, E5AltBOC, E6
SBAS L1 C/A, L5
QZSS, WAAS, MSAS, EGNOS, GAGAN
L-Band Trimble RTX
Positioning output rate 1Hz~50Hz
Initialization time <10s
Initialization reliability >99.99%
Positioning precision Static surveying Horizontal: 3mm+0.1ppm RMS; Vertical: 3.5mm+0.4ppm RMS
Code differential positioning Horizontal: 0.25m+1ppm RMS; Vertical: 0.50m+1ppm RMS
Real-time kinematic surveying Horizontal: 8mm+1ppm RMS; Vertical: 15mm+1ppm RMS
RTX Horizontal: 4-10cm; Vertical: 8-20cm
SBAS positioning Typically<5m 3DRMS
xFill Horizontal: 5+10mm/min RMS; Vertical: 5+20mm/min RMS
IMU tilt compensation --
Single positioning --
User interaction Operaing system Linux
Buttons Double buttons and visual operation interface
LCD 0.96 inch HD OLED screen, the resolution is 128 x 64
Indicators --
Web UI Accessing by WIFI or USB mode to monitor the receiver
Voice guide iVoice intelligent voice technology provides status and operation voice promptly, Supports Chinese, English, Korean, Russian, Portuguese, Spanish, Turkish
Secondary development Providing secondary development package, and opening the OpenSIC observation data format and interface definition for secondary development
Data cloud service Web page cloud service management platform, supporting online register etc
Hardware performance Dimension 152mm (diameter) × 137mm (height)
Weight 1.44kg (including battery)
Material Magnesium alloy shell
Operating temperature -40°C ~ +65°C
Storag temperature -55°C ~ +85°C
Humidity 100% Non-condensing
Waterproof/Dustproof IP67 standard, protected from long time immersion to depth of 1m, and fully protected against blowing dust
Shock and vibration MIL-STD-810G standard vibration test certified
Power Supply 9-25V wide voltage DC design, with overvoltage protection
Battery High capacity removable battery with the indicator displaying the power usage, 7.4V, 6800mAh/per
Battery solution (Providing the 7 × 24h battery solution)
Battery life More than 30h (static mode), More than 15h (RTK mode)
Communications I/O port 5-PIN LEMO port, 7-PIN USB port (OTG), 1 network/radio data link antenna port, SIM card slot
Wireless modem Integrated internal radio receiver and transmitter 1W/2W/3W
Frequency Range 403-473MHz
Communication Protocol Trimtalk450S, SOUTH, SOUTH+, SOUTHx, huace, ZHD, Satel
Cellular Mobile Network TDD-LTE, FDD-LTE 4G network modem
Double Module Bluetooth BLEBluetooth 4.0 standard, Bluetooth 2.1 + EDR standard
NFC Communication Realizing close range (shorter than 10cm) automatic pair between receiver and controller
External Devices --
WIFI Standard IEEE 802.11 b/g
WIFI Hotspot Adopting the WIFI hot spot function, any smart terminals (controller, cellphone and PC) can connect to the receiver easily
WIFI data link The receiver can transmit and receive correction via WiFi
Data storage/ Transmission Data Storage 8GB internal storage, supports external USB data storage, changeable record interval, supports up to 50Hz raw data collection
Data Transmission USB data transmission, FTP download, HTTP download
Data Format Static data format: STH, Rinex2.x and Rinex3.x etc
Differential data format: CMR+, CMRx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2
GPS output data format: NMEA 0183, PJK plane coordinates, binary code, Trimble GSOF
Network model support: VRS, FKP, MAC, supporting NTRIP protocol
Inertial sensing system Tilt survey Built-in tilt compensator, correcting coordinates automatically according to the tilt direction and angle of the centering rod
Electronic bubble Controller software display electronic bubble, checking leveling status of the centering rod real time
Thermometer Built-in thermometer sensors, adopting intelligent temperature control tech nology, monitoring and adjusting the receiver temperature in real time

Product Display

New Version Gps Rtk SOUTH G6 Receiver Surveying Instrument Rtk Gnss Survey Gps Base And RoverNew Version Gps Rtk SOUTH G6 Receiver Surveying Instrument Rtk Gnss Survey Gps Base And RoverNew Version Gps Rtk SOUTH G6 Receiver Surveying Instrument Rtk Gnss Survey Gps Base And RoverNew Version Gps Rtk SOUTH G6 Receiver Surveying Instrument Rtk Gnss Survey Gps Base And Rover

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike
Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.
Customer Photos
Certifications
Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
