Specifications
Brand Name :
Stonex EL302A Level
Model Number :
EL302A
Place of Origin :
China
MOQ :
1 set
Price :
＄1,250.00
Payment Terms :
T/T, L/C
Delivery Time :
30 work day
Product Name :
High precision electronic level
Customized support :
OEM, ODM, OBM
Model :
FOIF
Magnification :
32X
Compensation range :
±15′
compensating error :
0.2″
Display :
LCD Display
shortest sighting distance :
1m
Time :
1s
usb data transfer :
support
Operating time :
>12 hours
Waterproof and dustproof :
IP55
Description

FOIF EL302A Digital Level With High Precision LCD Screen For Land Survey

Product Description
Features:
EL300 Series Digital Level:
  • Quicker and easier than an optical level; Easy one-touch operation, simply push the MEAS button
  • Quick height and distance result-the reading is displayed almost instantly with measurement

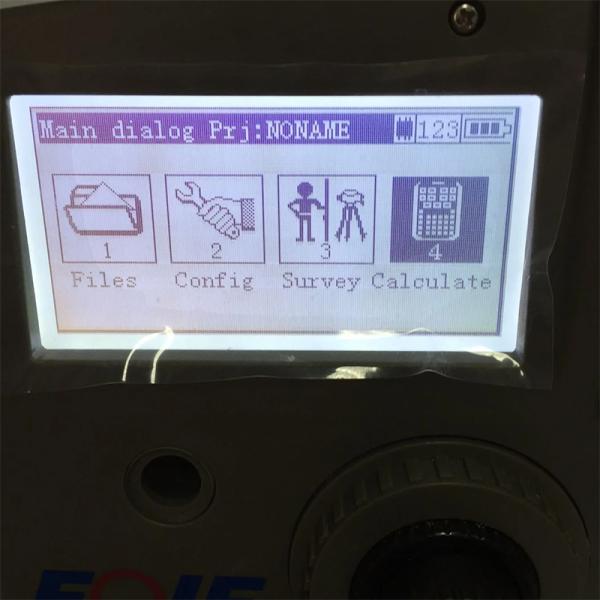

  • LCD display presents all important measured data at a glance and shows the next step to take
  • Reliable reading, even in dim light conditions
  • Standard deviation of 1km double run: ≤±0.6mm (electronic reading)
  • Far measuring range: ≥ 105m
  • On board program, such as BF, BFFB, BFBF, BBFF, FBBF, stake out, intermediate
Available models:
  • EL302A
  • EL312A
  • Available Bar Code Staff: Light compact measuring Tape (B3120),
    Telescopic Aluminum 5m (B2650) and Fixed Height Fiber Glass 2m or 3m (B2620 or B2630)

FOIF EL302A Laser Digital Auto Level Survey Instrument For Land SurveyFOIF EL302A Laser Digital Auto Level Survey Instrument For Land SurveyFOIF EL302A Laser Digital Auto Level Survey Instrument For Land SurveyFOIF EL302A Laser Digital Auto Level Survey Instrument For Land SurveyFOIF EL302A Laser Digital Auto Level Survey Instrument For Land Survey

Specification

Accuracy
Electronic measurement
±0.7mm
optical measurement
±1.5mm
Distance measurement
D10m: ±0.2%*D
Electronic measurement
time for single measurement
≤2s
Range
2-105m
Measurement modes
Single, average, tracking
Display resolution(m/inch selectable)
Height
0.01mm/0.00001ft
Distance
1mm/0.001ft
Telescope
Clear objective aperture
45mm
Magnification
30x
Field of view at 100m
2.6m
Shortest focus distance
1.0m
Automatic compensator
Working range
14'
Setting accuracy
±0.5"

Power
Battery
2000mAh Ni-MH rechargeable
Continuous operation time
12hours

Measurement programs
On-board programs
BF, BFFB,BFBF,BBFF,FBBF, stake out, intermediate
Onboard adjustment
Yes

Others
Memory
3000points, supports SD card
Display
LCD, 7 lines*32characters
Keyboard
Alphanumerical key board
Interface
USB, RS-232C optional, Bluetooth
Sensitivity of circular level
8'/2mm
Water and dust protection
IP54
Operating Temp
-20℃~+50℃
Net Weight
3kg
