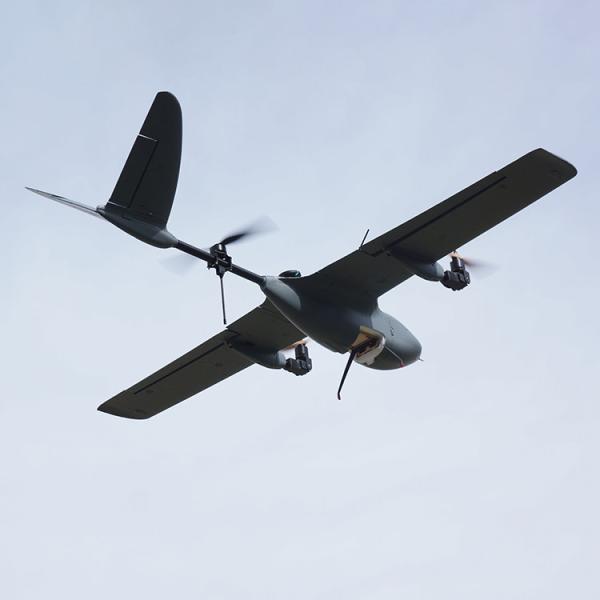

UAV Mapping Drone Nimbus V2 VTOL Long Range Fixed Wing UAV for Mapping
UAV Mapping Drone Nimbus V2 VTOL Long Range Fixed Wing UAV for Mapping
UAV Mapping Drone Nimbus V2 VTOL Long Range Fixed Wing UAV for Mapping
UAV Mapping Drone Nimbus V2 VTOL Long Range Fixed Wing UAV for Mapping
Specifications
Brand Name :
Helicopter
Model Number :
VTOL
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 pcs fer Month
Delivery Time :
5 days
Packaging Details :
Carton
product name :
UAV Mapping Drone
Length :
1300mm
Wingspan :
1800mm
Material :
Carbon Fiber
Description

UAV Mapping Drone Nimbus V2 VTOL Long Range Fixed Wing UAV for Mapping

Foxtech Nimbus VTOL V2 for Mapping and Survey-RTK/PPK Version (DA16S Combo)

This Nimbus V2 can be equipped with Foxtech Map-01 and Map-A7R mapping cameras to do mapping jobs, when

you use this Nimbus to do mapping, also could equipped Nimbus with RTK, and PPK system to increase the map

precision. Foxtech Nimbus VTOL V2 is a cost-effective plane compared with other expensive multicopters or fixedwings,

it is a good option for customers to do mapping jobs and long range inspection.

Features:
Take off and land vertically like a multicopter.
Great Wind Resistant Feature.
Go waypoints & click-go automatically in either fixed wing or multicopter mode.
No launching rail or parachute needed, launching directly from an area as small as 4x4m.
Do mapping jobs by designing in ground station.
In case there is any failure on ailerons, elevators, Nimbus VTOL mapping version can switch to multicotper mode to save the plane.

Your Purchase Includes (RTK/PPK Combo):
1x Nimbus VTOL V2 White Version/Grey Version
2x 28kg Servo
2x Foxtech 3520 KV520
1x Foxtech X5008 KV330
1x Hobbywing XRotor 40A ESC(no BEC)
2x Hobbywing XRotor Pro 50A
1x Pair 1380 Wooden Propeller
1x 1755 MARKII Matte Propeller
1x Px4 Air Speedometer
1x ASSAN 8A UBEC
1x Foxtech DA16S 16-Channel Radio Controller
1x Pixhawk 2.1 Standard Set with Here GNSS
1x RTK/PPK System
1x Assembling, tuned and Flying Test Service

Optional:
RB20 Signal Relay
PG20 Dual Battery Swapping Board
Foxtech Map-01 Mapping Camera
Foxtech Map-A7R Full-Frame Mapping Camera with 35mm Lens
Mapping Camera Mounting Plate
