RTK GNSS Receiver 2019 hot sell 220 channel kolida K5 Plus+ GNSS receiver rtk gps survey instrument
RTK GNSS Receiver 2019 hot sell 220 channel kolida K5 Plus+ GNSS receiver rtk gps survey instrument
RTK GNSS Receiver 2019 hot sell 220 channel kolida K5 Plus+ GNSS receiver rtk gps survey instrument
RTK GNSS Receiver 2019 hot sell 220 channel kolida K5 Plus+ GNSS receiver rtk gps survey instrument
Specifications
Brand Name :
Kolida
Model Number :
K5 plus+
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 set per month
Delivery Time :
3 days
Packaging Details :
Carton
product name :
RTK GNSS Receiver
channel :
220
Water/Dustproof :
IP67
With external radio :
8-20km
Network RTK :
15 mm + 0.5 ppm RMS
Internal momery :
1.02kg
Description

RTK GNSS Receiver 2019 hot sell 220 channel kolida K5 Plus+2018 infinity GNSS receiver rtk gps survey instrument

Longer working hours

Bigger battery volume

Smart Power Management

Extra Battery compartment

How To Connect

Insert SIM card

Wait to see "SIM is ready"

Tick “SMS Enable”

Tick “SMS Report”

Input the cellphone number that you want to receive notice

Key Features:

RTK GNSS Receiver 2019 hot sell 220 channel kolida K5 Plus+ GNSS receiver rtk gps survey instrument

RTK GNSS Receiver 2019 hot sell 220 channel kolida K5 Plus+ GNSS receiver rtk gps survey instrument

Specification:

SPECIFICATIONS
Surveying Performance
Channel 220 Channels
Signal Tracking BDS B1, B2, B3,
GPS L1C/A, L1C, L2C, L2E, L5
GLONASS L1C/A, L1P, L2C/A,L2P, L3
SBAS L1C/A, L5( Just for the satellites supporting L5 )
Galileo GIOVE-A, GIOVE-B, E1, E5A, E5B
QZSS,WAAS, MSAS, EGNOS, GAGAN, SBAS
GNSS Feature Positioning output rate: 1HZ~50HZ
Initialization time : <10s
Initialization reliability: >99.99%
Positioning Precision
Code Differential GNSS Positioning Horizontal: 0.25 m + 1 ppm RMS
Vertical: 0.50 m + 1 ppm RMS
SBAS positioning accuracy: typically<5m 3DRMS
Static GNSS Surveying Horizontal: 2.5 mm + 0.5 ppm RMS
Vertical: 5 mm + 0.5 ppm RMS
Real-Time Kinematic Surveying (Baseline<30km) Horizontal: 8 mm + 1 ppm RMS
Vertical: 15 mm + 1 ppm RMS
Horizontal: 8 mm + 0.5 ppm RMS
Network RTK Vertical: 15 mm + 0.5 ppm RMS
RTK initialization time: 2~8s
Physical
Dimension 13.4cm × 11.8cm
Weigh 1.02Kg(includiing installed battery)
Material Magnesium aluminum alloy shell
Environmental
Operating -45℃~+60℃
Storage -55℃~+85℃
Humidity Non-condensing
Waterproof/Dustproof IP67 standard,protected from long time immersion to depth of 1m
IP67 standard,fully protected against blowing dust
Shock and Vibration Not operating: Withstand 2 meters pole drop onto the cement ground naturally
operating : Withstand 40G 10milliseconds sawtooth wave impact test
Electrical
Power Consumption 2W
Battery Rechargeable,removeable Lithium-ion battery
Battery Life Single battery: 7h (static mode)
5h (internal UHF base mode)
6h (rover mode)
Communications and Data Storage
I/O Port 5PIN LEMO external power port+RS232
7PIN LEMO RS232 + USB
1 network/radio data link antenna port
SIM card slot
Wireless Modem Integrated internal radio receiver and transmitter 0.5W/2W
External radio transmitter 5W/25W
Working frequency 410-470MHz
Communications Protocol Trim Talk450s,TrimMark3,PCC EOT,KOLIDA
Cellular Moblie Network WCDMA3.5G network communication module,GPRS/EDGE compatible,
CDMA2000/EVDO3G optional
Double Module Bluetooth BLEBluetooth 4.0 standard,support for android,ios cellphone connection
Bluetooth 2.1 + EDR standard

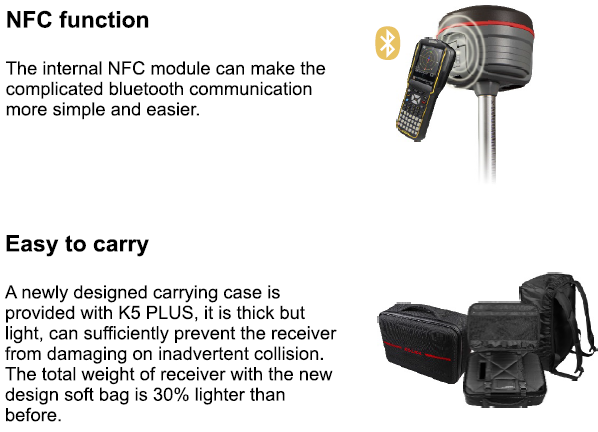

NFC Communication (Optional) Realizing close range (shorter than 10cm)automatic pair between K5 PLUS and controller
(controller equipped NFC wireless communication module needed)
Data storage/Transmission 4GB internal storage, more than 3 year raw observation data (1.4M/day)
base on recording from 14 satelites Plug and play more of USB data transmission
Data Format Differential data format: CMR+,CMR×,RTCM 2.1,RTCM 2.3,RTCM 3.0, RTCM3.1,RTCM3.2
GPS output data format: NMEA0183,PJK plane coordinates,binery code
Network model support: VRS,FKP,MAC,supporting NTRIP protocol
Inertial Sensing System(Optional)
Tilt Survey

Built-in tilt compensator, correcting coordinates automaticlly according to the tilt direction and angle of the centering rod
Electornic Bubble Conteroller software display electronic bubble, checking leveling status of the centering rod real time
User Interaction
Buttons One-button operation, Visual operation, convenient and efficient
