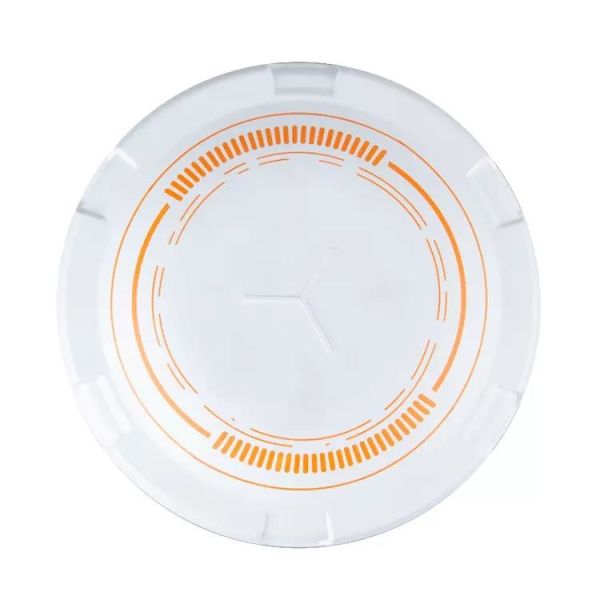

Sino/Comnav N3 Antenna GPS Surveying Instrument With High Precision Gnss Receiver RTK
Sino/Comnav N3 Antenna GPS Surveying Instrument With High Precision Gnss Receiver RTK
Sino/Comnav N3 Antenna GPS Surveying Instrument With High Precision Gnss Receiver RTK
Sino/Comnav N3 Antenna GPS Surveying Instrument With High Precision Gnss Receiver RTK
Sino/Comnav N3 Antenna GPS Surveying Instrument With High Precision Gnss Receiver RTK
Sino/Comnav N3 Antenna GPS Surveying Instrument With High Precision Gnss Receiver RTK
Sino/Comnav N3 Antenna GPS Surveying Instrument With High Precision Gnss Receiver RTK
Sino/Comnav N3 Antenna GPS Surveying Instrument With High Precision Gnss Receiver RTK
Sino/Comnav N3 Antenna GPS Surveying Instrument With High Precision Gnss Receiver RTK
Sino/Comnav N3 Antenna GPS Surveying Instrument With High Precision Gnss Receiver RTK
Sino/Comnav N3 Antenna GPS Surveying Instrument With High Precision Gnss Receiver RTK
Sino/Comnav N3 Antenna GPS Surveying Instrument With High Precision Gnss Receiver RTK
Sino/Comnav N3 Antenna GPS Surveying Instrument With High Precision Gnss Receiver RTK
Sino/Comnav N3 Antenna GPS Surveying Instrument With High Precision Gnss Receiver RTK
Specifications
Brand Name :
Comnav
Model Number :
N3
Certification :
CE
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs per year
Delivery Time :
5-8 work days
Packaging Details :
With Standard Epxort Packing Ways
Static and Fast Static :
less than 10 s
Working range :
5km typical, 8~10km optimal
Function :
Blue Tooth for Surveying
Application :
full-wave
Frequency :
1198 channels
Selling Units :
Single item
Description
Overview
Quick Details
Warranty:
3 years
Customized support:
OBM, ODM, OEM
Place of Origin:
Jiangxi, China
Brand Name:
Sino GNSS/ComNav
Product name:
GNSS RTK
Frequency:
1198 channels
Static and Fast Static:
less than 10 s
Real Time Kinematic:
Horizontal: 8 mm+1 ppm
Working range:
5km typical, 8~10km optimal
Supports:
WIFI
Function:
Blue Tooth for Surveying
Internal battery life:
Static 12hours
Application:
full-wave
GPS:
L1 CA/L1P/L1C/L2P/L2C/L5

Packaging & Delivery

Selling Units:
Single item
Single package size:
75X45X35 cm
Single gross weight:
30.000 kg
Package Type:
 GPS Instrument Receiver Module Price Sino N3 RTK Radio 1198 Channel Combined GPS  1 set packed in 3 cartons: 45*25*40cm (7kg) 45*25*40cm (7kg) 145*17*14cm(5kg)
Lead Time:
Quantity(sets) 1 - 10 >10
Est. Time(days) 12 To be negotiated
Video Description
00:09
00:5

PERFORMANCE SPECIFICATIONS
POSITIONING PERFORMANCE
High-Precision Static
Horizon: 2.5 mm + 0.1 ppm RMS
Vertical: 3.5 mm + 0.4 ppm RMS
Static and Fast Static
Horizon: 2.5 mm + 0.5 ppm RMS
Vertical: 5 mm + 0.5 ppm RMS
RTK Accuracy
Horizon: 8mm+1ppm RMS
Vertical: 15mm+1ppm RMS
Network RTK
Horizon: 8mm+0.5ppm RMS
Vertical: 15mm+O.5ppm RMS
Initialization time
Typically 2-10s
Initialization reliability
Typically > 99.9%
Internal Battery
Battery 7.4V 6800mAh lithium-ion rechargeable and removable battery.RTK rover(UHF/Cellular) for 10 hours.Power indicator embedded.
Working time Quick charge within 3.5 hours.
Communication
Internal UHF Transceiver Radio
Frequency 403-473MHz
Transmitting power 1 ~4W Hi-Target Advanced Radio Supports protocols: HI-TARGET, TRIMTALK450S, TRIMMARK III, SATEL-3AS, TRANSEOT
Working Range Typically 3~5km, optimal 5~8km
Physical
Dimensions 158mm x 98mm (6.22inch x 3.86inch)
Weight lighter than 1.3kg (2.65lb) within internal battery
Operation temperature -40°C~+75°C (-40°F~ + 167°F)
Storage temperature -50°C~+85°C (-58°F~ + 185°F)
Temperature control Auto-adjust the working power to maintain the temperature
Interface
Blue Tooth 4.0/2.1 + EDR, 2.4 GHz. USB 20 port with OTG function. 1 SMA antenna connector. 1 DC power input(S-pin). 1 SIM card slot Near FieldCommunication(NFC)
I/O Interface
Control Panel
Physical button 1
Touchscreen Support glove mode and wet-finger mode
Environment
Dustproof&Waterproof IP67 dustproof, protected from temporary immersion to depth of 1 m (3.28ft)
Humidity 100% condensing

Sino/Comnav N3 Antenna GPS Surveying Instrument With High Precision Gnss Receiver RTK

Sino/Comnav N3 Antenna GPS Surveying Instrument With High Precision Gnss Receiver RTK

Packaging & Shipping

Original Packing.

Your products will be shipped within 3 days after received payment.

Our Services

Your inquiry will be replied within 24 hours, we welcome your email and call at any time.

Our products are original and 100% new. and they will be carefully checked before we ship them out.

All the products we sell have one year warranty and we can supply technical support.

Company Information

Shanghai Galxy International Trade company, Ltd. combining with developing, researching and producing. Our company is located in Pudong Developing Zone, and has two subsidiary companies: Shanghai Galaxy International Trade Co., Ltd. and Mato Opto-electrical High-tech Company. Our company has researching center and factory in Changzhou.

Our main products are as following: total station, electronic theodolite, automatic level, laser level, rotation laser, GPS, distance laser sensor and accessories, such as tripod, prism, pole, staff and USB cable for total station. Our company designs software for many domestic and oversea factories, for example, Boif, TJOP, Stanley, and Cst-Berger. We have powerful capacity in technical research, and the products we designed have advanced technology and steady performance. The non-prism total station and the absolute coding measure instrument we developed and produced have very competitive points in the measure instrument market.

We expect that we could cooperate with more business partners from all over the world. In addition, we can do OEM service for companies or dealers that want to find better producers in China.

Our goal is to produce the best surveying instruments in the world.

Our target is to globalize the market, internationalize the quality and maximize the profit!
