Specifications
Brand Name :
FOIF
Model Number :
RTS-102R10
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Supply Ability :
1000 pieces per year
Packaging Details :
Within Standard Exported Packing Way
Water and dust protection :
IP54 (IEC60529)
Interface :
USB/RS-232C/Bluetooth(Optional)
Keyboard :
Alphanumerical key board, both sides
Sensors :
Built-in temperature and pressure sensors
Memory :
4G internal memory
CPU :
ARM9 Core
Charging time ( at +20℃) :
Approx. 4 hours
Charger :
FDJ6-LI9 (100V / 240V)
Continuous operation time :
8 hours
Output voltage :
7.4V DC
Laser wave length :
635nm
Description

FOIF RTS100 Series Reflectorless Total Station 3400mAh Li-ion Rechargeable Battery FOIF RTS-102R10 price

FOIF RTS100 series reflectorless total station 3400mAh Li-ion Rechargeable Battery FOIF RTS-102R10 price With Dual-axisFOIF RTS100 series reflectorless total station 3400mAh Li-ion Rechargeable Battery FOIF RTS-102R10 price With Dual-axisFOIF RTS100 series reflectorless total station 3400mAh Li-ion Rechargeable Battery FOIF RTS-102R10 price With Dual-axisFOIF RTS100 series reflectorless total station 3400mAh Li-ion Rechargeable Battery FOIF RTS-102R10 price With Dual-axisFOIF RTS100 series reflectorless total station 3400mAh Li-ion Rechargeable Battery FOIF RTS-102R10 price With Dual-axis

Model RTS-102R10
Telescope
Length/Image 156mm/Erect
Objective aperture φ45mm
Magnification 30x
Field of view 1°30’
Shortest focus distance 1.0m
Angle measurement
Reading system Absolute encoder
Angle unit 360/400gon/6400mil,selectable
Display resolution 0.5"/1"/5"(0.1mgon/0.2mgon/1mgon)
Accuracy 2"
Distance measurement(R500)
Display resolution(m/inch) selectable 0.1mm/1mm
Laser class prism Class1
Reflector /Reflective sheet Class3R
Measurement range (Good condition)
Reflectorless 1 to 600m
Reflective sheet/RP60 1 to 800m
Single prism 1 to 5000m
Accuracy
Prism 2mm+2ppm
Reflective sheet/RP60 3mm+2ppm
Reflectorless 1-200m: 3mm+2ppm/>=200m:5mm+3ppm
Measuring time Initial : 2s
Prism(Standard model) 3s
Reflective sheet/RP60(Standard model) 3s
Reflectorless(Standard model) 3s
Level vial sensitivity
Plate level vial 30" /2mm
Circular level vial 8' /2mm
Compensator Dual-axis compensator
Working range 3'
Setting accuracy 1"
Laser plummet(Standard)
Accuracy ±1mm/1.5m
Laser class Class 2/ IEC60825-1
Laser brightness Adjustable
Laser wave length 635nm

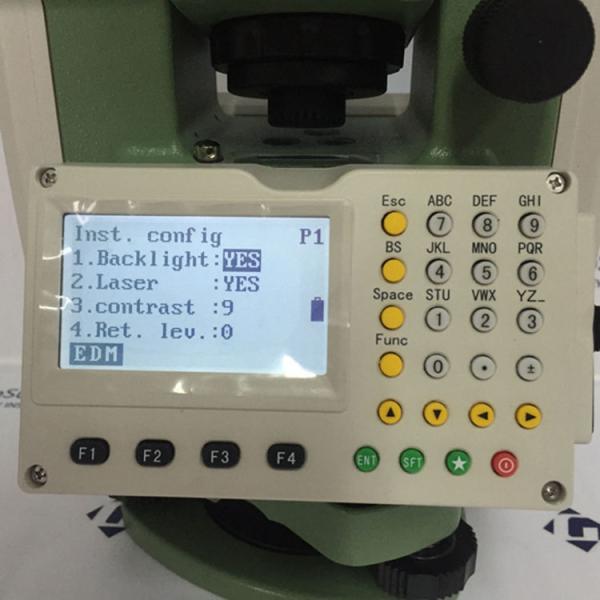

Display
LCD, 6lines X2Ocharacters(96 X160 dots )
Power
Battery 3400mAh Li-ion Rechargeable
Output voltage 7.4V DC
Continuous operation time 8 hours
(Single distance measurement every 30 seconds
Charger FDJ6-LI9 (100V / 240V)
Charging time ( at +20℃) Approx. 4 hours
Application programs
Data collection/Stake out/Resection/REM/MLM/Point to line
AREA/Z coordinate/OFFset/3D Road/Traverse adjustment
Tape measurement/Section/Axis postioning measurement
Others
CPU ARM9 Core
Memory 4G internal memory
Sensors Built-in temperature and pressure sensors
Keyboard Alphanumerical key board, both sides
Weight(including batteries) 9.0kg
Interface USB/RS-232C/Bluetooth(Optional)
Water and dust protection IP54 (IEC60529)

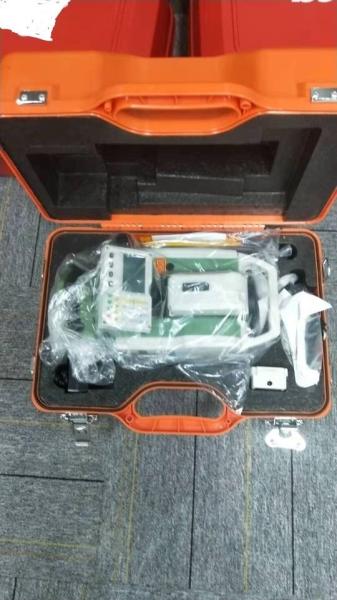

Packaging & Shipping
