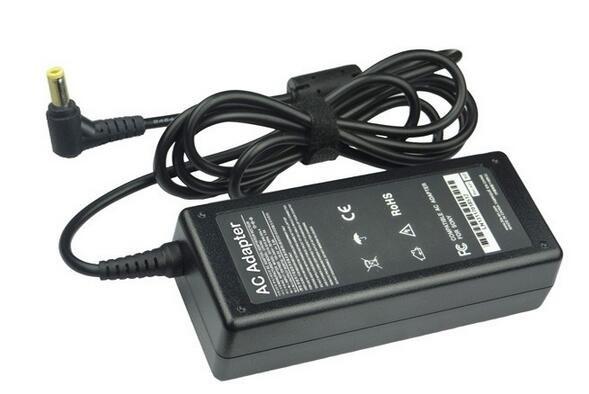

AC DC power adapter 12v 2a 5a 6a 8a 10a 15a medical power supply adapter UL SAA KC PSE
AC DC power adapter 12v 2a 5a 6a 8a 10a 15a medical power supply adapter UL SAA KC PSE
Specifications
Place of Origin :
Shenzhen
Brand Name :
Anenerge
Certification :
CB UL cUL CE Rohs FCC
Packaging Details :
White Box
Delivery Time :
5-7 days
Payment Terms :
T/T, Western Union
Supply Ability :
50000 pcs per Month
MOQ :
Negotiable
power :
24w 60w 120w
marked :
UL SAA KC PSE
voltage :
9v 12v 24v
Description

AC DC power adapter 12v 2a 5a 6a 8a 10a 15a medical power supply adapter UL SAA KC PSE

AC DC power adapter 12v 2a 5a 6a 8a 10a 15a medical power supply adapter UL SAA KC PSEAC DC power adapter 12v 2a 5a 6a 8a 10a 15a medical power supply adapter UL SAA KC PSE

sage

* LED strip ,LED light ,LED table lamp.

* Router,amplifier,CCTV camera,

* Home appliances ,setup box ,speaker,

* Audio & Video equipments,

* Wireless communication electronics .

* Medical equipments
DC Output Voltage 24V± 5%
DC Output Current 2500mA
DC Output Power 60W
Working efficency 83%
Adapter Size 126*45*32mm(L/W/H)
Efficiency level 5
Warranty 2years
Certificates approved TUV CB CE GS ROHS UL/CUL FCC IECS SAA C-tick
Input Rated Voltage 86Vac~264Vac
Input Frequency Range 47Hz~63Hz
Safety protection output voltage protection (120%-150% rated output current)
output current protection (150%-180% rated output current)
short current protection
Ripple and Noise less than 60Mv at full road with 20MHz bandwidth
DC connector 5.5*2.1*12mm (optional)
DC cable 1.5m 2464UL 20AWG cable (optional)
Operating Temperature 0°C - +55°C
Storage Temperature -20°C - +85°C
Safety Standard EN60950 EN60601 ESD (EN61000 3-3)
CAS (60950 ITE/TE,EN60601 Medical) FCC Part 15 subpart B Class 2
AN/NZS CISPR 22:2006
Turn On Delay Time less than 3S (AC:110V and full load)
Dielectric Voltage A IEC320 three pin input---output(FG)3000Vac one minute
Input Current less than 0.5A
Input Inrush Current less than 30A
Leakage Current less than 5mA
Standby power less than 0.1w
Net Weight 76g/pcs
Gross Weight 14.6kg/carton
Carton Box Size 39*31*29cm
