Specifications
Brand Name :
GUOMAT
Model Number :
1R 12-826
Certification :
ISO/TS16949
Place of Origin :
Guangdong , China
MOQ :
1pc
Price :
$59-159/pc
Payment Terms :
T/T, Western Union,paypal or others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customer's need
Material :
Rubber ,Steel
Bellows :
566-24-3-524
GOODYEAR :
1R 12-826
DT :
2.61032
DAF :
0 392 022
VOL-VO :
20 703 452
Description

Truck Air Springs GOODYEAR 1R 12-826 566-24-3-524 for VOL-VO 20 703 452 21 013 010

VEYANCE Maker Part number

Goodyear Flexmember Part Number: 566-24-3-524 / 566 24 3 524 / 566243524

Piston: Steel

Service Assembly: 1R12-826

Type: Crimped On Metal

Maker Part Number

VOL-VO 70311683

VOL-VO 21097433

VOL-VO 21513833

VOL-VO 21160951

VOL-VO 21057936

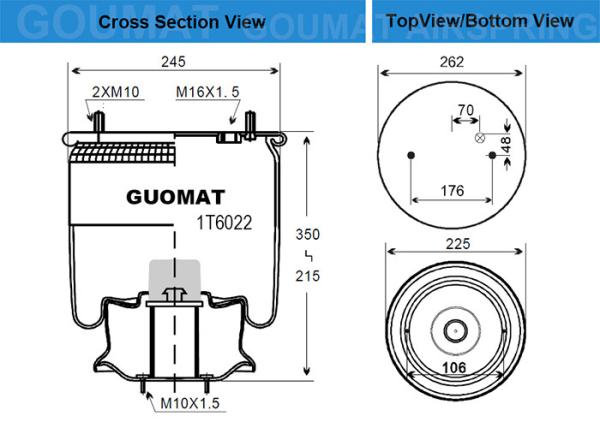

GUOMAT 1T12-826 Technical parameters

❶ Screw Bolt / Stud

Top Cover Plate screw bolt / Stud Tooth :2 pcs M10X1.75

Screw Center Distance of Top Cover Plate : 176 mm

❷ Gas Hole / Air inlet /Air Fitting

Gas Hole / Air inlet : M16x1.5.

Distance Between Gas Hole and Stud :48 mm

Distance Between Gas Hole and Central Axis : 70 mm

❸ Cover Plate

Top Cover Plate Diameter: Ø262 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter: 245 mm

Rubber Bellows MAX Height : 350 mm

Rubber Bellows MIN Height :215 mm

Working stroke : 135 mm

❺ Bumper block / Buffer block

Bumper Block

❻ Bottom Piston

Bottom Piston Diameter : Ø225 mm

Bottom Piston Height :183 mm

❼ Piston Bolt

Piston Bolt Tooth : M10X1.5

2 pieces of Bolt

Middle faster between center Bolt : 106 mm

Cross References Vehicle​​s OEM References
GOODYEAR 1R 12-826 VOL-VO 20 703 452
GOODYEAR 566-24-3-524 VOL-VO 21 057 939
DT 2.61032 VOL-VO 21 013 010
　 VOL-VO 21 513 836

We supply the conventional models of complete air suspension springs

Contitech Firestone Goodyear Phoenix Dunlop FR CF Gomma Taurus
4022 NP 05 W01-M58-8612 1R11-781 1DK 22E 9 　 　 　
4912 NP 07 W01-M58-8786 1R13-711 1DK 28F-4 D 13B 40 　 　
50046 W01-M58-6251 1R11-826 1T15S-6 　 　 　
4154 NP 05 W01-M58-6289 1R12-703 　 D 12B 09 1T 323-40 　
4157 NP 04 W01-M58-6297 1R11-111 D 21A 4 D 12B 18 　 KR 915-54
4157 NP 10 W01-M58-6315 1DK 20A 51 　 　 KR 91521 　
4157 NP 08 W01-M58-6317 1R11-773 1DK 20C-2 D 12B 30 　 KR 915-53NW
81 M16 K1 W01-M58-6334 1R14-719 1D 28B-7 D 13B 36 　 KR 621-31
4810 NP 05 W01-M58-6338 1R14-730 1D 28A 10 D 13B 25 1T 19E-1 KR 621-18
810 MB W01-M58-6345 1R14-716 1D 28A-2 　 　 　
4023 NP 03 W01-M58-6348 1R14-729 1D 28A-10 D 13B 26 1T 19E-2 KR 624-18
811 MB W01-M58-6359 1R14-718 　 D 13B 34 1T 19E-2 　
813 MB W01-M58-6364 1R14-061 1D28G-9121 　 　 　
4004 NP 03 W01-M58-6366 1R11-706 1DK 22E-5 D 12B 25 1T 300-33 K505-27SM
4022 NP 03 W01-M58-6367 1R11-714 1DK 22E-9 D 12B 14 1T 300-37 KR 725-28
4157 NP 05 W01-M58-7074 1R11-106 1DK 21A-3 D 12B 17 1T 300-38 KR 915-54

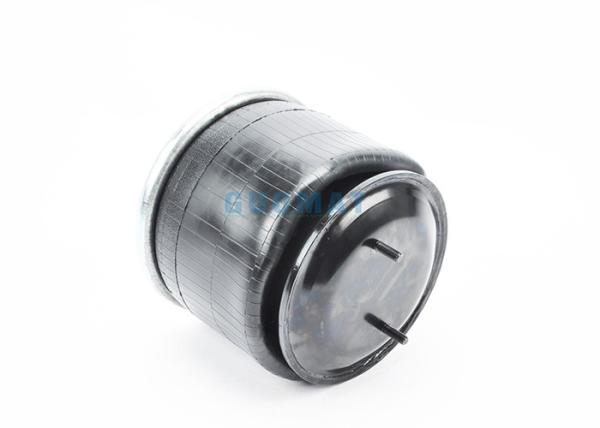

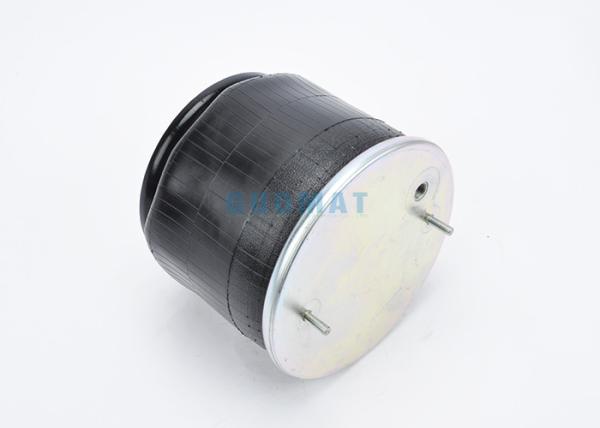

1R 12-826 Steel piston and cover plate pictures

Rubber Steel Truck VOL-VO Air Spring Heavy Duty 20 703 452 21 013 010Rubber Steel Truck VOL-VO Air Spring Heavy Duty 20 703 452 21 013 010Rubber Steel Truck VOL-VO Air Spring Heavy Duty 20 703 452 21 013 010
