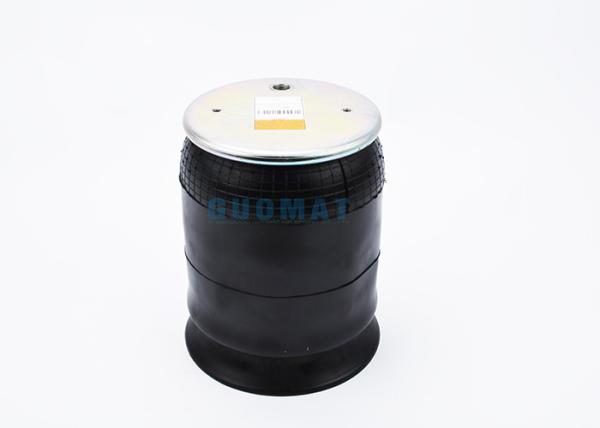

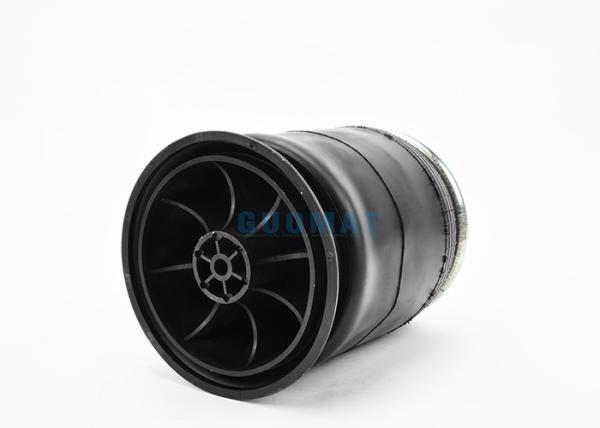

Schmitz Trailer 750999 Spring Helper Airbags Air Suspension Components Firestone Bellows
Schmitz Trailer 750999 Spring Helper Airbags Air Suspension Components Firestone Bellows
Schmitz Trailer 750999 Spring Helper Airbags Air Suspension Components Firestone Bellows
Schmitz Trailer 750999 Spring Helper Airbags Air Suspension Components Firestone Bellows
Schmitz Trailer 750999 Spring Helper Airbags Air Suspension Components Firestone Bellows
Schmitz Trailer 750999 Spring Helper Airbags Air Suspension Components Firestone Bellows
Schmitz Trailer 750999 Spring Helper Airbags Air Suspension Components Firestone Bellows
Schmitz Trailer 750999 Spring Helper Airbags Air Suspension Components Firestone Bellows
Schmitz Trailer 750999 Spring Helper Airbags Air Suspension Components Firestone Bellows
Schmitz Trailer 750999 Spring Helper Airbags Air Suspension Components Firestone Bellows
Specifications
Brand Name :
GUOMAT
Model Number :
750999
Certification :
ISO/TS16949
Place of Origin :
Guangdong , China
MOQ :
1pc
Price :
$59-159/pc
Payment Terms :
T/T, Western Union,paypal or others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customer's need
Material :
Rubber ,Steel Piston
CONTITECH :
60452
Firestone :
W01 M58 8185
GOODYEAR :
1R 14-039
Other name :
Air Suspension Shock
Goodyear :
1R11-749
Weweler :
US 06285F
Granning :
15657
Description

Schmitz Trailer 750999 Spring Helper Airbags Firestone W01 M58 8185 Bellows 1T15MPW-9

Schmitz Trailer W01 M58 8185 Vehicle​​s OEM

Cross References Vehicle​​s OEM References
CONTITECH 60452 WABCO : 951 812 749 0
Firestone : 1T15MPW-9 Granning: 15657
Firestone :W01 M58 8185 Meritor : MLF7037
Goodyear : 1R11-749 Weweler US 06285F
Phoenix : 1 DK 20 B-1 Schmitz Trailer 750999
Dunlop FR : D12B22 　
Vibracoustic : V1 DK 20 B-1 　
Taurus : DA 34158/0103 　
Airtech : 133782 　
Airtech: 38185KPP 　

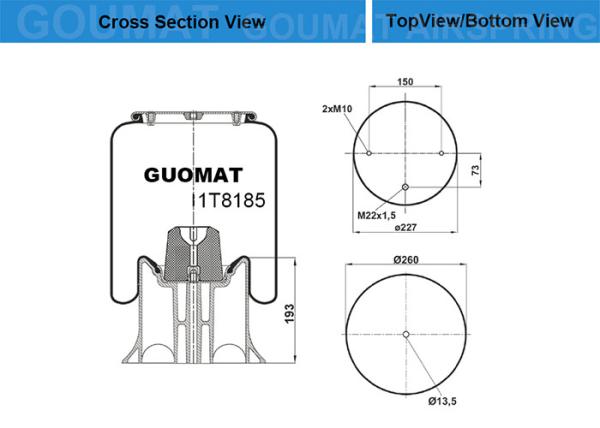

Technical data of W01 M58 8185

The installation Space required :315mm
The Working stroke :385mm
Deflection (Hight min) :270mm
Deflection (Hight max) :655mm
Loading cap.at 5.0bar :20.0kN
Loading cap.at 7.0bar :28.5kN
Measurement diameter max :295mm

air spring protects the road

The vehicle that use air spring protects the infrastructure. It has low spring rate and natural frequency plus excellent load distribution protects the roads and may make pneumatically sprung vehicles acceptable on roads where large mass are not allowed.

Schmitz Trailer 750999 Spring Helper Airbags Air Suspension Components Firestone BellowsSchmitz Trailer 750999 Spring Helper Airbags Air Suspension Components Firestone BellowsSchmitz Trailer 750999 Spring Helper Airbags Air Suspension Components Firestone Bellows
