Specifications
Brand Name :
GUOMAT
Model Number :
813 MB/0
Certification :
ISO/TS16949
Place of Origin :
Guangdong , China
MOQ :
1pc
Price :
$59-159/pc
Payment Terms :
T/T, Western Union,paypal or others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customer's need
Material :
Rubber ,Steel Piston
Firestone bellows :
1T19L-11
Firestone :
W01-M58-7238
GOODYEAR :
1R11-106
Other name :
Assembly Air Spring
Phoenix :
1D 28 B-5

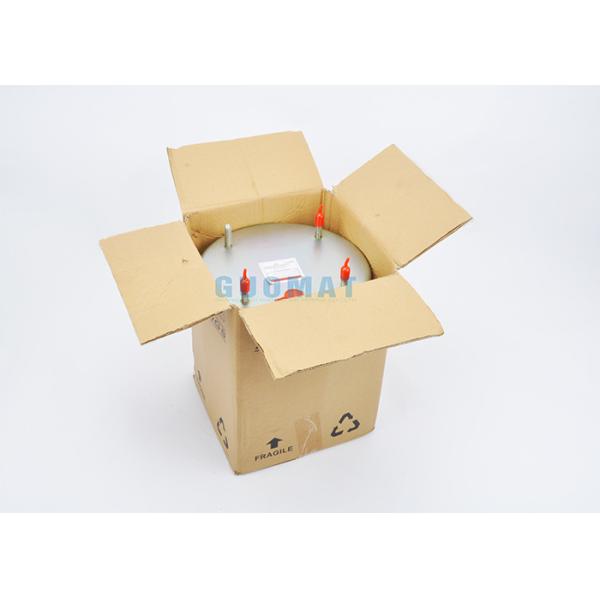

Packaging :
1 piece per carton
Package Size :
28 x 28 x 38 Centimeters
Description

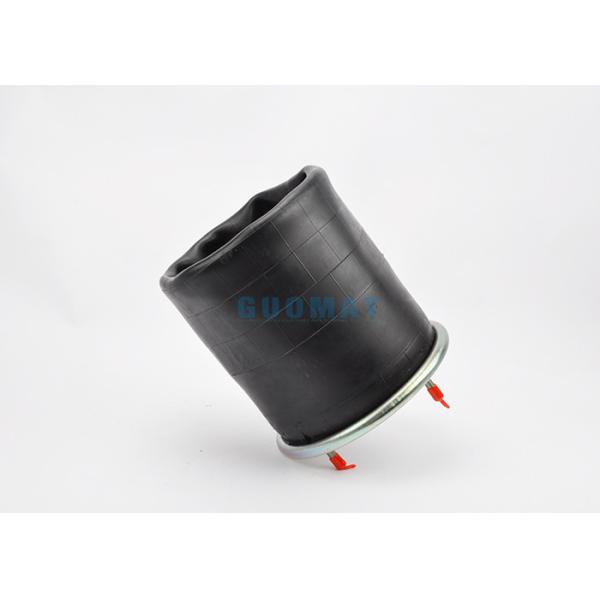

Assembly Air Spring W01-M58-7238 CONTITECH 813 MB Phoenix 1D 28 B-5 Has Four Screw Rod

W01 M58 7238 / W01-M58-7238 / W01M58 7238

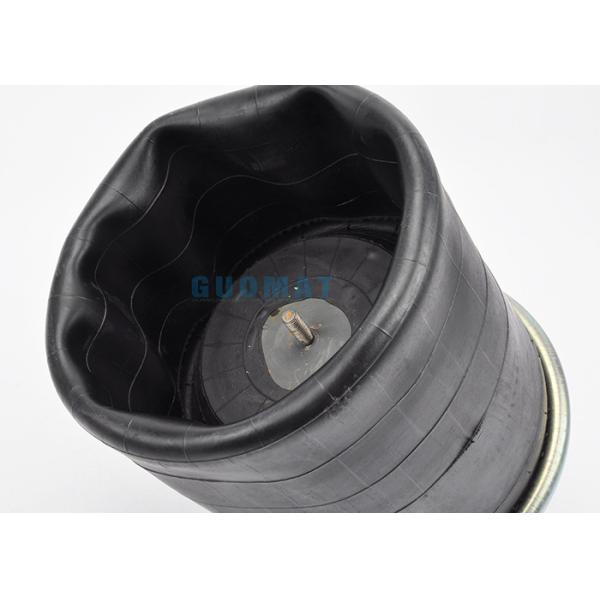

Half Assembly Without Piston

GUOMAT 1T 813 MB Technical parameters

❶ screw bolt / Stud

Top Cover Plate screw bolt / Stud Tooth : 2 pcs XM12X1.75

Center Distance Between Two Studs : 158.8 mm

❷ Gas Hole / Air inlet /Air Fitting

Gas Hole / Air inlet : M22X1.5

Distance Between Gas Hole and Stud : 79.4 mm

❸ Cover Plate

Top Cover Plate Diameter: Ø286 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter: 265mm

Rubber Bellows Natural Height : 511 mm

❺ Bumper block / Buffer block

Bumper Block Height : 58 Mm Together With Top Cover Plate

❻ Bottom Piston

Half Assembly Without Piston

Bottom Opening Diameter :156.5 mm

❼ Bottom Bolt/ Half assembly

Bottom Bolt Bolt Tooth : M12X1.75

1 Pieces of Bolt

Assembly Air Spring W01-M58-7238 Cross References

Cross References
FIRESTONE Bellows NO. 1T19L-11
FIRESTONE Complete W01-M58-7238
CONTITECH 813 MB/0
Phoenix 1D 28 B-5

The global several big air spring production of the corresponding number

Contitech Firestone Goodyear Phoenix Dunlop FR CF Gomma Taurus
810 MB W01-M58-7335 　 　 　 　 　
4813 NP 07 W01-M58-7358 1R14-727 1D 28B-9 D 13B 10 　 KR 662-01
4028 NP 05 　 1R14-721 　 D 14B 51 　 　
912 NP 02 W01-M58-7385 1R14-028 1D 28D-2 　 　 　
725 NP01 W01-M58-7529 1R14-704 　 D 14U 38 　 UR 836-11
4159 NP 03 W01-M58-7548 1R12-701 1DK 21B-4 D 12B 01 1T 323-40 KR 509-22
910 12P 720 W01-358-7667 　 　 　 　 　
6607 NP 01 W01-M58-8473 1R11-805 1DF17A-1 D11B42 　 　
11 10.5E-16A320 W01-358-8050 1R14-039 　 　 　 　
11 10.5E-15A419 W01-358-8052 1R14-042 　 　 　 　
11 10.5A-16P523 W01-358-8053 1R14-147 　 　 　 　
AS 8091 W01-358-8091 1R14-171 　 　 　 　
4157 NP 03 W01-M58-8185 1R11-749 1DK 21B-1 D 12B 22 　 DA 34158
4157 NP 06 W01-M58-8186 1R11-764 1DK 21A 1 D 11B 37 　 　
6606 NP 01 W01-M58-8477 1R11-848 1D 20E-1 　 　 　
912 NP 01 W01-M58-8502 1R14-728 　 　 　 　
4881 NP 02 W01-M58-8601 1R14-701 1DK 32K D 14U 37 　 UR 838-01T
813 MB W01-M58-6364 1R14-061 1D28G-9121 　 　
