Specifications
Brand Name :
GUOMAT
Model Number :
S-240-3 R
Certification :
ISO/TS16949:2009
Place of Origin :
Guangdong,China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, Western Union,paypal or others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Rubber and Stainless Steel
Yokohama :
S-240-3
GUOMAT :
F-240-3
Layer Number :
3 Convolution
Using Maximum Internal Pressure :
0.88 Mpa
Vibration Frequency :
1.9 Hz
Description

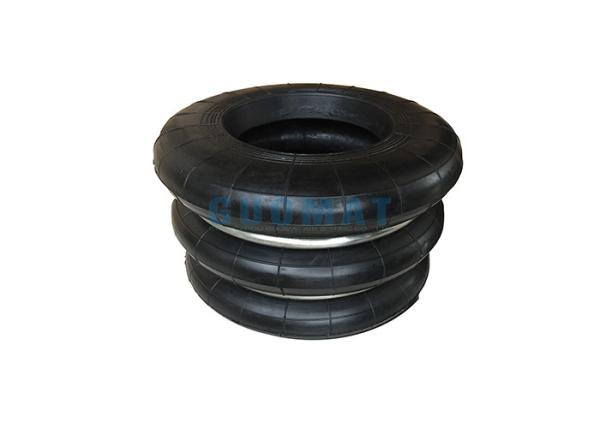

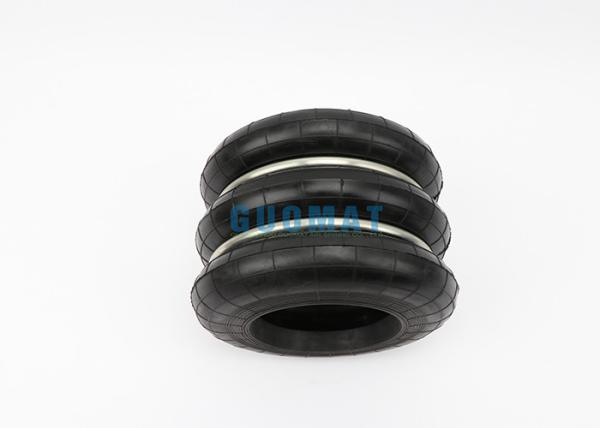

Hardware Punch S-240-3 Yokohama Air Spring Or Isolation Of Flex Testing Machines

Net Weight:4.35 KG

Gross Weight:4.85 KG

Package Size:165mm*295mm*295mm

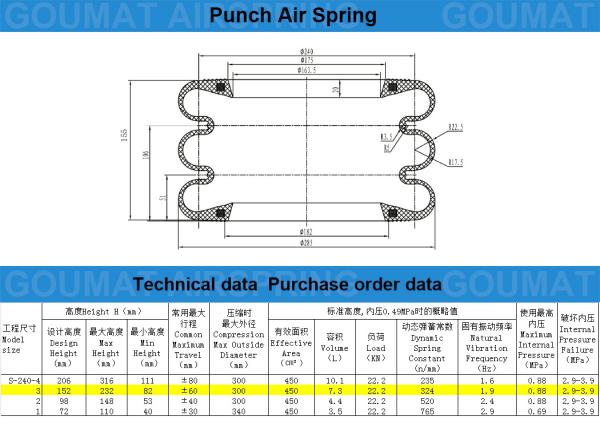

S-240 Yokohama Air Spring Catalogue items Detailed Parameter Table:

GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)
F-240-4 S-240-4 206 316 111 ±80 300
F-240-3 S-240-3 152 232 82 ±60 300
F-240-2 S-240-2 98 148 53 ±40 300
F-240-1 S-240-1 72 110 40 ±30

340

GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
F-240-4 S-240-4 450 10.1 22.2 235 1.6 0.88 2.9-3.9
F-240-3 S-240-3 450 7.3 22.2 324 1.9 0.88 2.9-3.9
F-240-2 S-240-2 450 4.4 22.2 520 2.4 0.88 2.9-3.9
F-240-1 S-240-1 450 3.5 22.2 765 2.9 0.69

2.9-3.9

This item can fits for many kinds of machines

  1. Actuators for concrete block machinery
  2. Mineral equipment air spring,
  3. Directional-change actuators in roller conveying systems
  4. Actuators for flask lifts on foundry shake-outs
  5. Mountain bike
  6. Actuators on bottle and carton filling machines
  7. Bin-tilting actuators (for ease of access)
  8. Paper machine equipment air spring air spring,
  9. Actuators on transfer tables
  10. Vibrating screen cover clamping device
  11. Actuators in sand blast rooms
  12. Actuators in glass grinding rooms
  13. Industrial laundry equipment actuators
  14. Crawling pipeline machine
