Specifications
Brand Name :
GUOMAT
Model Number :
W01 M58 6353
Certification :
ISO/TS16949:2009
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Steel cover plate , rubber bellows
WEFORMA :
WBZ 300-E2
Gas Hole :
G1/4
Screw Tooth :
M8*1.25
Screw Center Distance :
70 mm
Cover plate diameter :
135 mm
Pressure Ability :
0.2-0.8 M Pa
stroke :
75~230 mm
Description

Air Shock Suspension W01 M58 6353​ Rotary Shaft Actuators Drain Valve Actuators

GUOMAT FD12017 Technical parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

Screw Center Distance of Top Cover Plate : 70 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

Screw Center Distance of Bottom Cover Plate : 70 mm

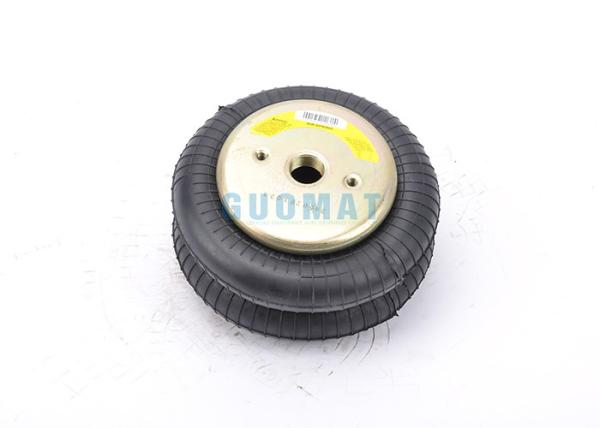

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/4 in the middle of the Top Cover Plate

Screw Center Distance Between Gas Hole and Nut : 35 mm

❸ Cover Plate

Top Cover Plate Diameter: 135 mm

Bottom Cover Plate Diameter: 135 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 215 mm

The Working Stroke : MIN 75 mm to MAX 230 mm

Maximum Height : 230 mm

Minimum Height :75mm

Rubber Bellows Natural Height: 167 mm

Stroke Height : 155 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Many OEM Original Equipment Manufacturers of FIRESTONE W01 M58 6353 :

BELLOW Numbers COMPLETE Numbers
　
CONTITECH 603 N BOSCH 822419062
FIRESTONE FLEX 26 CONTITECH FD 120-17 61361
FIRESTONE W01 358 0142 FIRESTONE W01 M58 6353
PIRELLI 26 026B 095.0275
PHOENIX 2B O7 R WEFORMA WBZ 300-E2
AIRKRAFT 114050 AIRKRAFT 113054

W01-M58-6353, W01M586353, W01 M58 6353 WO1-M58-6353, WO1M586353

Other numbers air spring we can produce:


Style 26 Two Ply
Blind nuts, 1/4 BSP;W01-M58-6353;W01 M58 6353;W01M586353
Blind nuts, 3/4 BSP;W01-M58-6387;W01 M58 6387;W01M586387
Countersunk steel bead rings,40 mm bolts, nuts, washers:W01-M58-6988;W01 M58 6988;W01M586988
Rubber bellows only:W01-358-0142;W01 358 0142;W013580142
Force to collapse to minimum height (@ 0 BAR):102 N.

Detail Technical data at the below photo

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values Force F [kN]

Air Shock Suspension W01 M58 6353​ Rotary Shaft / Drain Valve ActuatorsAir Shock Suspension W01 M58 6353​ Rotary Shaft / Drain Valve ActuatorsAir Shock Suspension W01 M58 6353​ Rotary Shaft / Drain Valve Actuators
