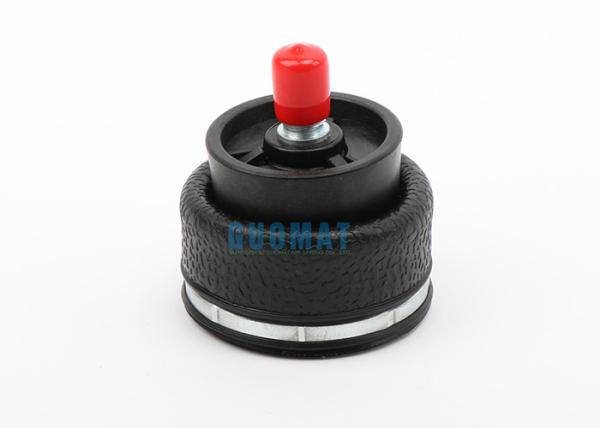

W02-358-3001 Firestone Reversible Sleeve Air Spring With Brass Blind Stud
W02-358-3001 Firestone Reversible Sleeve Air Spring With Brass Blind Stud
W02-358-3001 Firestone Reversible Sleeve Air Spring With Brass Blind Stud
W02-358-3001 Firestone Reversible Sleeve Air Spring With Brass Blind Stud
W02-358-3001 Firestone Reversible Sleeve Air Spring With Brass Blind Stud
W02-358-3001 Firestone Reversible Sleeve Air Spring With Brass Blind Stud
W02-358-3001 Firestone Reversible Sleeve Air Spring With Brass Blind Stud
W02-358-3001 Firestone Reversible Sleeve Air Spring With Brass Blind Stud
W02-358-3001 Firestone Reversible Sleeve Air Spring With Brass Blind Stud
W02-358-3001 Firestone Reversible Sleeve Air Spring With Brass Blind Stud
W02-358-3001 Firestone Reversible Sleeve Air Spring With Brass Blind Stud
W02-358-3001 Firestone Reversible Sleeve Air Spring With Brass Blind Stud
W02-358-3001 Firestone Reversible Sleeve Air Spring With Brass Blind Stud
W02-358-3001 Firestone Reversible Sleeve Air Spring With Brass Blind Stud
Specifications
Brand Name :
GUOMAT
Model Number :
G3001
Certification :
ISO/TS16949:2009
Place of Origin :
Guangdong , China
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal and Others
Supply Ability :
10000 pcs / week
Delivery Time :
2 - 8 Work Days
Packaging Details :
Strong Carton Box or as Customer's Require
Main Material :
Steel Rubber
Position :
Seat
Net Weight :
0.26 kg
Other Name :
Seat AIR Spring
Car Make :
Motorcycle Seat
OEM 2 :
W02-358-3001
Status :
Brand New
Spring Type :
Gas Filled
Material :
2-Ply Standard Cord
Description

W02-358-3001 With Brass Blind Stud Firestone Reversible Sleeve Air Spring


Cross OEM Of this item:

GUOMAT:G3001

Firestone Rubber bellows NO.:1M1A-0
Firestone NO.:W02-358-3001
Firestone NO.:W023583001
Firestone NO.: W02 358 3001

Style 1M1A-0

Two Ply Rubber Bellows

Description Assembly Order No.
Blind nut, 1/8 NPT,
plastic stud W02-358-3000
Blind nut, 1/8 NPT,
brass stud W02-358-3001
Blind nut, 1/8 NPT, brass
stud, stainless steel ring W02-358-3005



Descripition and Specifications Of G3015:

Maximum Diameter @ 100 PSIG (MM) 86.36
Maximum Height (MM) 73.66
Maximum Stroke (MM) 35.56
Minimum Usable Height (MM) 38.1
1 Inch (pounds) 450
Maximum Stroke (pounds) 400
Material 2-Ply Standard Cord
Design Height 63.5
40 psig (pounds) 210
60 psig (pounds) 330
80 psig (pounds) 450
Natural Frequency (@80 psig) (cpm) 220
800 CPM % 91.8
1500 CPM % 97.8


GUOMAT air spring solemn commitment to the customer:

1, we don't spell at a low price, we only make quality products.
2, the same price on the market of air spring, we must be the best quality.
3, the same quality of air spring on the market, we must be the best price.
4, different regions, the same price of air spring there will be a slight difference, because of considering the freight after wait for a reason.
5, GUOMAT air spring not profiteering, only genuine, solid products.
6, all customers for the product quality problems need to be replaced, we have to change.


Packing List of G3001 Air Spring :

Description PCS Net Weight Package Weight Gross Weight Length
(cm)		 Width
(cm)		 Height
(cm)		 Measurememt
(cbm)
Air Suspension 1 0.6 kg 0.4 kg 1.0 kg 12 9.2 9.2 0.00102
Shipping Terms By DHL/UPS/FEDEX/TNT/AIRWAY/LCL/FCL or By Sea. It will take about 1 to 4 working days to reach By Express.
Payment Terms T/T, Western Union,Paypal and Others

Applications:


• Press Manufacturing
• Vibrating Equipment &
Conveyers
• Shaker Screens
• Steel Manufacturing
Equipment
• Automotive Related
(Plate Glass)
• Material Handling Industry
• Lumber Industry
• Aluminum Can Recycling
• Container Manufacturers
• Paper Industry

Note:

We always have goods in stock.

This air spring is generally in stock. The products produced by GUOMAT conform to national standards. The warranty is one year. Any quality problem can be exchanged within one year.

Other kinds we can produce:

ORDER NUMBER STYLE NUMBER SEE PAGE
W02-M58-3000 1M1A-0 34
W02-M58-3001 1M1A-0 34
W02-M58-3002 2M1A 36
W02-M58-3006 1M1A-1 35
W02-358-4001 4001 81
W02-M58-5001 116-ST 39
W02-M58-5003 16-ST 39
W02-358-7002 7002 82
W02-358-7010 7010 83
W02-358-7012 7012 84
