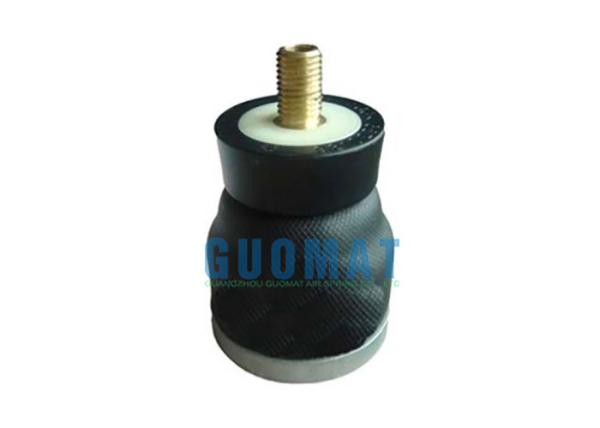

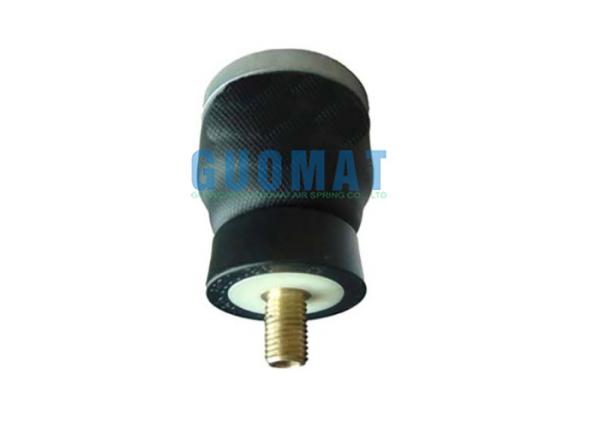

CONTITECH SK37-6 P02 Suspension Air Spring Sleeve Seat For Harley Motorcycle
CONTITECH SK37-6 P02 Suspension Air Spring Sleeve Seat For Harley Motorcycle
CONTITECH SK37-6 P02 Suspension Air Spring Sleeve Seat For Harley Motorcycle
CONTITECH SK37-6 P02 Suspension Air Spring Sleeve Seat For Harley Motorcycle
CONTITECH SK37-6 P02 Suspension Air Spring Sleeve Seat For Harley Motorcycle
CONTITECH SK37-6 P02 Suspension Air Spring Sleeve Seat For Harley Motorcycle
CONTITECH SK37-6 P02 Suspension Air Spring Sleeve Seat For Harley Motorcycle
CONTITECH SK37-6 P02 Suspension Air Spring Sleeve Seat For Harley Motorcycle
Specifications
Brand Name :
GUOMAT
Model Number :
SK37-6 P02
Certification :
ISO/TS16949:2009
Place of Origin :
Guangdong , China
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal and Others
Supply Ability :
10000 pcs / week
Delivery Time :
2 - 8 Work Days
Packaging Details :
Strong Carton Box or as Customer's Require
Main Material :
Steel Rubber
Position :
Seat
Net Weight :
0.26 kg
Other Name :
Harley Motorcycle AIR Spring
Car Make :
Harley Motorcycle
OEM 1 :
SK37-6 P02
Status :
Brand New
Spring Type :
Gas Filled
Description

CONTITECH SK37-6 P02 Sleeve Seat Suspension For Harley Motorcycle


Cross OEM Of this item:

GUOMAT:G3088

CONTITECH SK37-6 P02

Min. pressure:0 bar

Return force to min. height:≤ 150 N.

Overall weight with clamped plates:0.28 kg.

Vibration isolation - dynamic characteristic values

Design height H: recommended 60mm.

Pneumatic application - static characteristic values Force F [kN]

With G 1/8 air inlet, brass stud

Order No.63235

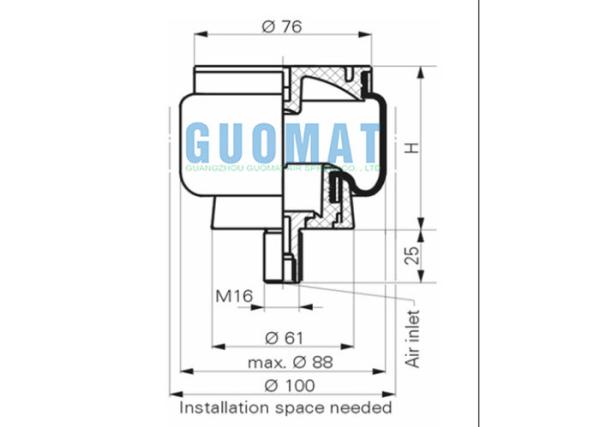

Descripition and Specifications Of SK37-6 P02:

Package Size: 3.6*3.6*5(in.) Package Size: 92mm*92mm*127mm
Net Weight: 0.28 KG Lower Plate OD : 61 MM
Gross Weight: 0.5 KG Extended Height : 91.44 MM
PISTON NUMBER: 63235 Bumper Height : 38.1 MM
Lower Plate OD : 2.40 (in.) Upper Plate OD : 76 MM
Extended Height : 3.60 (in.) Lower Plate OD: 60.96 MM
Bumper Height : 1.50 (in.) Extended Height: 91.44 MM
Upper Plate OD : 3.2 (in.) Bumper Height: 38.1 MM
Lower Plate OD: 2.40 (in.) Upper Plate OD: 76 MM
Extended Height: 3.60 (in.) 　 　
Bumper Height: 1.50 (in.) 　 　
Upper Plate OD: 3.2 (in.) 　 　

Note:


Dashed line on static load curve
Shows the power of the SK 37-8 plus 15 mm base under the piston. This base is not provided by GUOMAT. If this base is not used, the bellows will touch the ground at about height. 55 mm. This should be avoided as it may cause the bellows to wear. The minimum pressure for baseless service is 3 bar.



GUOMAT air spring production of the air spring has the following advantages:

1, product quality, Thailand import natural rubber, the core technology in Germany
2, With the same price on the market, GUOMAT optimal quality. With the same quality of products, GUOMAT has lowest price.
3, cars, trucks, buses and industrial air spring has production, fully meet the customers' different requirements.
4, GUOMAT spell price, not only do the brand.
5, more than 10 years of production technology, products cover all over the world.
6, have dealers around the world, the first response to all customer requirements.


Packing List of SK37-6 P02 Air Spring :

Description PCS Net Weight Package Weight Gross Weight Length
(cm)		 Width
(cm)		 Height
(cm)		 Measurememt
(cbm)
Air Suspension 1 0.28 kg 0.4 kg 0.5 kg 12 9.2 9.2 0.00102
Shipping Terms By DHL/UPS/FEDEX/TNT/AIRWAY/LCL/FCL or By Sea. It will take about 1 to 4 working days to reach By Express.
Payment Terms T/T, Western Union,Paypal and Others


CONTITECH SK37-6 P02 Suspension Air Spring Sleeve Seat For Harley Motorcycle
CONTITECH SK37-6 P02 Suspension Air Spring Sleeve Seat For Harley Motorcycle
