Single Action Punch Rubber Air Spring GUOMAT F-600-5 Five Convoluted 600-5
Single Action Punch Rubber Air Spring GUOMAT F-600-5 Five Convoluted 600-5
Single Action Punch Rubber Air Spring GUOMAT F-600-5 Five Convoluted 600-5
Single Action Punch Rubber Air Spring GUOMAT F-600-5 Five Convoluted 600-5
Single Action Punch Rubber Air Spring GUOMAT F-600-5 Five Convoluted 600-5
Single Action Punch Rubber Air Spring GUOMAT F-600-5 Five Convoluted 600-5
Single Action Punch Rubber Air Spring GUOMAT F-600-5 Five Convoluted 600-5
Single Action Punch Rubber Air Spring GUOMAT F-600-5 Five Convoluted 600-5
Specifications
Brand Name :
GUOMAT
Model Number :
S-600-5
Certification :
ISO/TS16949:2009
Place of Origin :
Guangdong,China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, Western Union,paypal or others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Stainless Steel Crimp, Rubber
Yokohama :
S-600-5R
GUOMAT :
F-600-5
Layer Number :
5 Convolutions
Vibration Frequency :
1.8 Hz
At 0.49 M pa :
Max Load 13.8 KN
Maximum Internal Pressure :
0.69 M pa
Net Weight :
18 KG
Packing Size :
65*65*30cm
Natural Width :
645 MM
Description

Single Action Punch Rubber Air Spring GUOMAT F-600-5 Five Convoluted 600-5

GUOMAT F-600-5 can fit for many kinds of punching press equipment.

Single action punch and double action punch

Another type of punch press is a single action punch and double action punch (there are three action punch, but very rare). Single-action punch only one slider, and double-action punch has two sliders, a slider can be fixed workpiece to prevent wrinkles, and then a slider for stamping processing, suitable for deep-drawn rigid materials operations.

GUOMAT F-600-5 items Detailed Parameter Table:

GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)
F-600-5 S-600-5 276 456 156 ±113 660

GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
F-600-5 S-600-5 2830 76.6 138.3 1010 1.3 0.69 3.9-4.9

According to the transmission classification

Mechanical punch the power source is the motor, the middle need to have a transmission mechanism will be converted to rotary motion of the slider reciprocating linear motion, press characteristics will vary according to the transmission mechanism.


The most common type of mechanical punch is crankshaft (with eccentric shaft) to drive, and this drive is also suitable for many different types of processing.


Link Punch is the connecting rod for the transmission mechanism, connecting rod punch is characterized by rapid decline in the slider, slow processing, rapid rise, save time and costs, but also in the vicinity of the bottom dead end great effort.


Toggle knuckle press is based on a toggle joint as a transmission mechanism and has a short stay when the slider is moved to the bottom (referred to as bottom dead center), and is suitable for cold forging processing. There are also knuckles and toggle knuckle joint punches

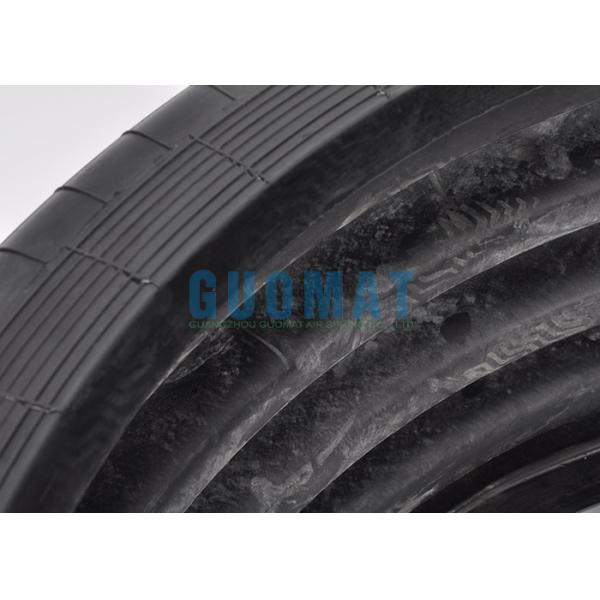

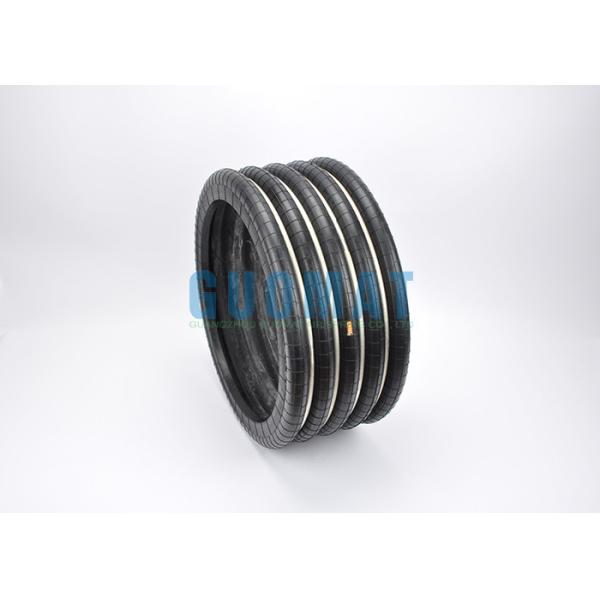

GUOMAT F-600-5 Product detail photos:

Single Action Punch Rubber Air Spring GUOMAT F-600-5 Five Convoluted 600-5Single Action Punch Rubber Air Spring GUOMAT F-600-5 Five Convoluted 600-5Single Action Punch Rubber Air Spring GUOMAT F-600-5 Five Convoluted 600-5
