Specifications
Brand Name :
GUOMAT
Model Number :
2B4060
Certification :
ISO/TS16949:2009
Place of Origin :
Guangdong,China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
iron cover plate , rubber bellows
GUOMAT :
2B4060
Gas Hole :
G1/8
Screw Tooth :
M8X1.25
Screw Center Distance :
20 mm
Cover Plate Diameter :
90 mm
Pressure Ability :
0.2-0.8 M Pa
Rubber Bellows Natural Height :
145 mm
Mounting Bracket Plate :
2 pcs
Description

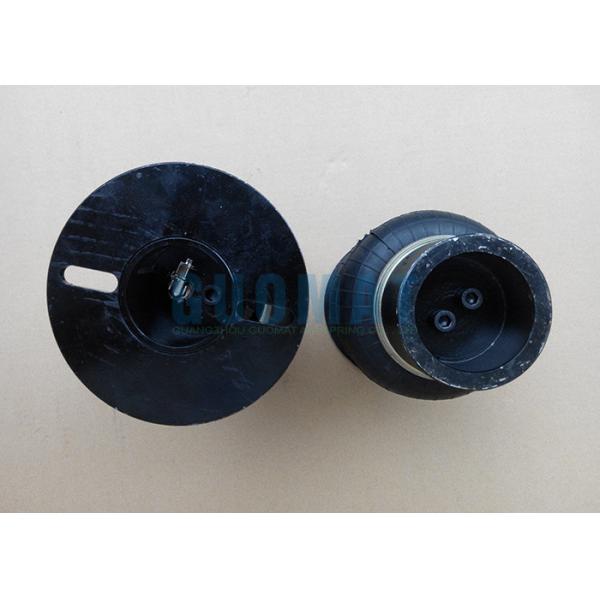

Modified Car Airbags FD40-10 G1/8 Air Inlet With Mounting Bracket Plate

GUOMAT No.:2B4060

FD 40-10

FD 40-10 CI

Contitech FD 40-10

Double Convolution Air Actuator

M8: max. 25 Nm

G1/8: max. 25 Nm

Type Order No. Rubber bellows only 72586 with crimped plates, G1/8 air inlet 10 mm excentrical 2682001000 with stainless steel crimped plates, G1/8 air inlet 0 mm excentrical 61755

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

Screw Center Distance of Top Cover Plate : 20 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

Screw Center Distance of Bottom Cover Plate : 20 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/8 Air inlet is combined with Nut

❸ Cover Plate

Top Cover Plate Diameter (Width): 90 mm

Bottom Cover Plate Diameter (Width): 90 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter : 125mm

Rubber Bellows Natural Height : 145 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Piece of Girdle Hoop

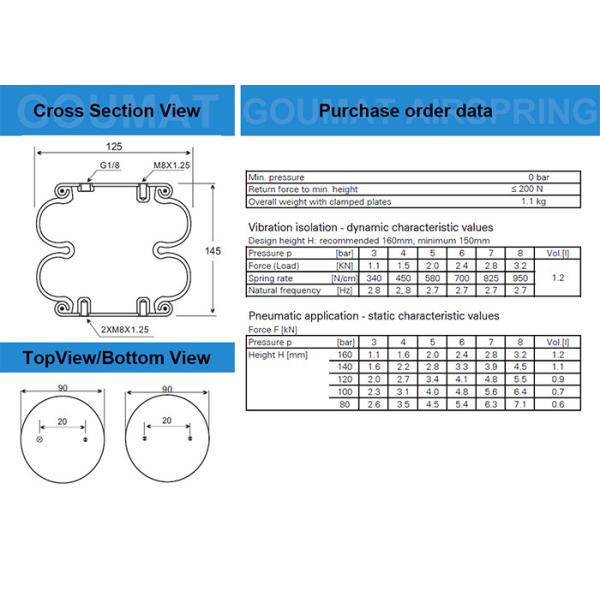

Pictures show the information includes:

Technical data

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values

Modified Car Airbags / Industrial Air Spring FD40-10 G1/8 Air Inlet With Mounting Bracket Plate

Modified Car Airbags / Industrial Air Spring FD40-10 G1/8 Air Inlet With Mounting Bracket PlateModified Car Airbags / Industrial Air Spring FD40-10 G1/8 Air Inlet With Mounting Bracket Plate

Modified Car Airbags / Industrial Air Spring FD40-10 G1/8 Air Inlet With Mounting Bracket Plate

GUOMAT NO. Product designation Load capacity at Natural frequency at Recommended operating height Required installation diameter
5 bar 8 bar 5 bar 8 bar
Double Convolution Air Spring
FD 40 10 FD 40-10 1,95 3,2 2,7 2,7 160 160
FD 70 13 FD 70-13 3,1 5 2,5 2,5 175 180
FD 110 15 FD 110-15 5,6 9,2 2,2 2,1 175 215
FD 120 17 FD 120-17 6,5 10,6 2 2 190 230
FD 120 20 FD 120-20 7,8 12,7 1,8 1,7 205 235
FD 138 18 FD 138-18 6,9 11,2 2 2 200 245
FD 200 19 FD 200-19 9 14,5 1,9 1,9 210 265
FD 200 22 FD 200-22 10,3 16,5 1,7 1,6 220 265
FD 200 25 FD 200-25 10,2 16,5 1,7 1,7 254 275
FD 210 22 FD 210-22 11,6 19,4 1,8 1,7 220 300
FD 330 22 FD 330-22 16,7 27,6 1,8 1,7 240 340
FD 412 18 FD 412-18 18,3 30 1,8 1,8 220 350
FD 530 22 FD 530-22 25,8 42 1,8 1,7 250 400
FD 530 30 FD 530-30 29,3 48,2 1,6 1,5 260 415
FD 530 35 FD 530-35 31,6 51,2 1,5 1,4 285 420
FD 960 22 FD 960-22 45,6 71,5 1,6 1,6 240 490
FD 1330 25 FD 1330-25 65,3 103,9 1,6 1,5 240 570
FD 1710 25 FD 1710-25 86,6 136,6 1,6 1,5 240 620
FD 2380 24 FD 2380-24 114,9 186,1 1,6 1,5 240 710
FD 2870 30 FD 2870-30 138,7 217,6 1,5 1,4 265 760
FD 5450 28 FD 5450-28 260,8 415,3 1,4 1,3 280 1000
